Wholesale Vector signal generator R&S®SMW200A Manufacturers, Exporter

DependingÂ onÂ theÂ testÂ settingÂ andÂ application,Â differentÂ performanceÂ andÂ functionalityÂ requirementsÂ apply. InÂ termsÂ ofÂ meetingÂ theseÂ diverseÂ needs,Â theÂ R&SÂ®SMW200AÂ isÂ unparalleledÂ andÂ establishesÂ newÂ benchmarksÂ forÂ signalÂ generators. WhenÂ creatingÂ andÂ testingÂ anyÂ kindÂ ofÂ DUT,Â includingÂ parts,Â modules,Â andÂ entireÂ baseÂ stations,Â theÂ R&SÂ®SMW200AÂ producesÂ theÂ rightÂ testÂ signalsÂ withÂ easeÂ andÂ excellentÂ performance. BecauseÂ ofÂ itsÂ adaptableÂ modularÂ architecture,Â theÂ R&SÂ®SMW200AÂ mayÂ beÂ outfittedÂ withÂ theÂ preciseÂ featuresÂ thatÂ applicationsÂ callÂ for. FromÂ aÂ multichannelÂ MIMOÂ receiverÂ testerÂ toÂ aÂ traditionalÂ single-pathÂ vectorÂ signalÂ generator,Â everyÂ configurationÂ isÂ feasible.

Send Inquiry

Product Description

Overview

Specifications

Models

Delivery Information

Manuals + Resources

💡

For digitally modulated signals needed for the creation of new wideband communications systems, the validation of 4G and 5G base stations, and the aerospace and defense industry, the R&S®SMW200A is the perfect generator.

⚡

Fourth and fifth generation standards (such as IEEE 802.11ac/ad, 5G, and LTE-Advanced) are satisfied by the I/Q modulation bandwidth of up to 2 GHz with internal baseband, and the R&S®SMW200A is built to satisfy future requirements. Users may customize the generator to suit their needs and upgrade it as needed thanks to its adaptable modular construction.

⚙️

Signal quality is unaffected by the addition of a second RF channel, up to two baseband, and up to four fading simulator modules. Consequently, the R&S®SMW200A may generate signal scenarios that were previously impossible to implement or required a number of devices. An instrument has never before provided such exceptional signal generation from up to 8x8 MIMO and LTE-Advanced carrier aggregation, including fading to multistandard radio.

🔗

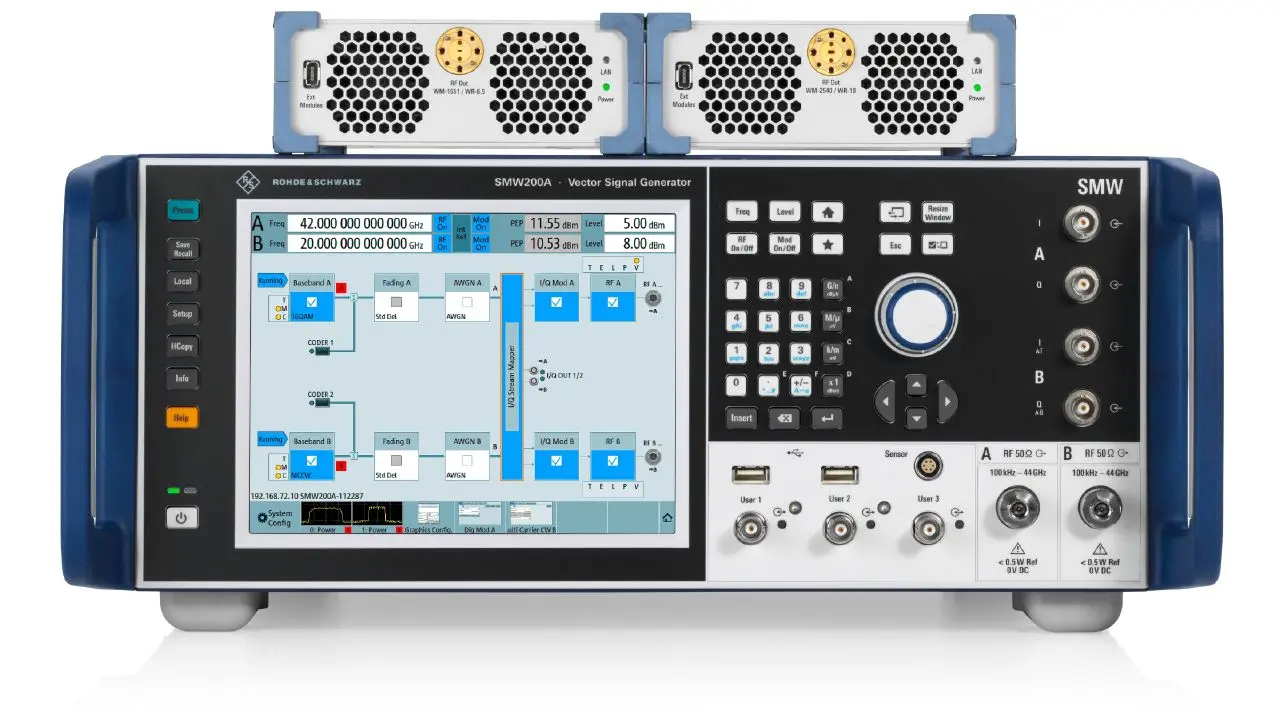

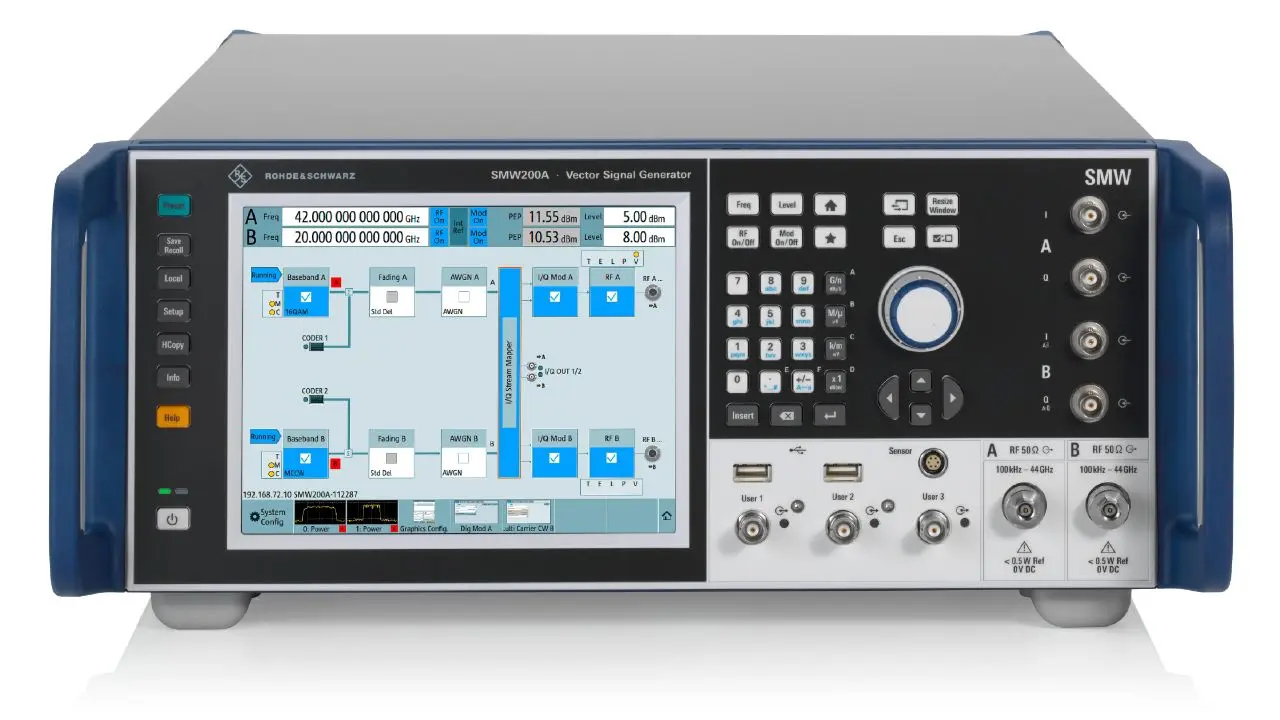

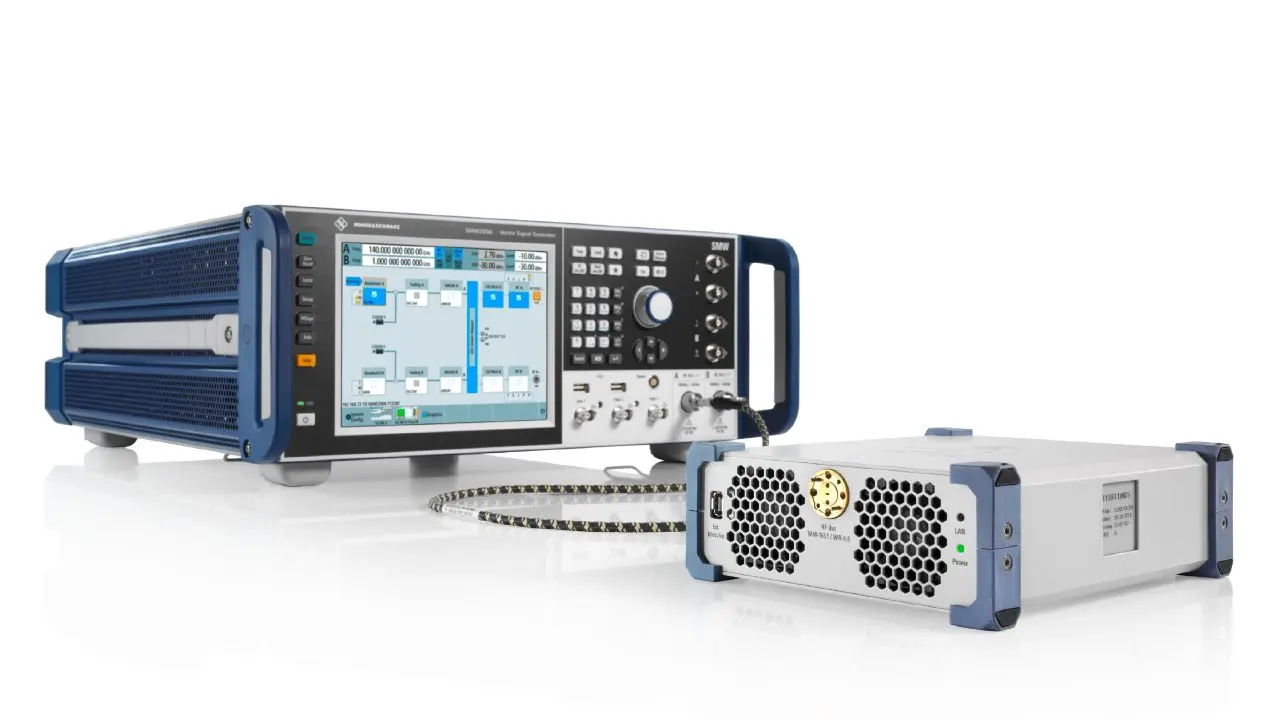

Additional R&S®SGMA signal generator modules can be attached if more than two RF lines are needed. The user-friendly touchscreen-based operation concept gives the user a summary of all measures, regardless of how complicated they are, and promptly produces the intended results.

Power rating
Raled yotage		100 V to 240 V AC
Reted curent	with R&S®SMW-B131/B13T options	7.3 A to 4.6 A
Reted curent	With R&S®SMW-B13XT or R&S®SMW-B94L options	8.9 A to 4.9 A
Rated frequency	with R&S®SMW-B131-813T options	50 Hz to 60 Hz, 400 Hz
	with R&S®SMW-B13XT or R&S®SMW-B94L option
	100 V to 240 V	50 Hz to 60 HZ
	100 V to 120 V	400 Hz
Rated power	when fully equipped	550 W(meas.)
Rated power	with R&S®SMW-B94L option, when fully equipped	750 W(meas.)
Environmental conditions
Temperature range	operating	0℃ to +45℃
	operating with R&S®SMW-B1056, R&S®SMW-B1056N, R&S®SMW-B10560, R&S®SMW-B1067, R&S®SMW-B1067N, R&S®SMW-B10670 options	+5℃ to +45℃
	storage	-40 ℃ to +60 ℃, temperature gradient < 5 K/hour
Demp heat		+40 ℃, 90 % rel. humidity, steady state, in line with EN 60068-2-78
Altitude	operating	4600 m
Mechanical resistance
Vibration	sinusoidal	5 Hz to 55 Hz, 0.15 mm amplitude const., 55 Hz to 150 Hz, 0.5 g const., in line with EN 60068-2-6
	random	8 Hz to 500 Hz, acceleration: 1.2 g RMS, in line with EN 60068-2-64
Shock		40 g shock spectrum, in line with MIL-STD-810E, method no. 516.4, procedure I
Product conformity
Electromagnetic compatibility	EU: in line with EMC directive 2014/30/EC	applied harmonized standards: EN 61326-1 (for use in industrial environment) EN 61326-2-1, EN 55011 (class B) EN 61000-3-2 EN 61000-3-3
Electromagnetic compatibility	EU: in line with EMC directive 2014/30/EC: With R&S®SMW-K18, R&S®SMW-K19 options	applied harmonized standards: EN 61326-1 (for use in industrial environment) EN 61326-2-1 EN 55011 (class A) EN 61000-3-2 EN 61000-3-3

Dimensions (Standard)	W × H × D 435 mm × 192 mm × 460 mm (17.1 in × 7.6 in × 18.1 in)
Dimensions (with R&S®SMW-B94L)	W × H × D 435 mm × 192 mm × 560 mm (17.1 in × 7.6 in × 22 in)
Weight (Standard)	when fully equipped 21 kg (46.3 lb)
Weight (with R&S®SMW-B94L)	when fully equipped 30 kg (66.1 lb)

📦

Dimensions:
W × H × D 435 mm × 192 mm × 460 mm (17.1 in × 7.6 in × 18.1 in)
With R&S®SMW-B94L option: 435 mm × 192 mm × 560 mm (17.1 in × 7.6 in × 22 in)

Weight:
Standard configuration: 21 kg (46.3 lb)
With R&S®SMW-B94L option: 30 kg (66.1 lb)

R&S SMW200A_datasheet.pdf

R&S SMW200A_BROCHURE.pdf

Frequently Asked Questions

❓ What is the frequency range and modulation bandwidth of the R&S®SMW200A?

The R&S®SMW200A features an I/Q modulation bandwidth of up to 2 GHz with internal baseband, designed to satisfy 4G, 5G, and future wideband communication standards.

❓ Can I configure a dual-channel RF signal system on a single instrument?

Yes. The modular design of the R&S®SMW200A allows the addition of a second RF channel, up to two baseband units, and up to four fading simulator modules without compromising signal quality.

❓ What are the power supply specifications for the R&S®SMW200A?

It supports a rated voltage of 100 V to 240 V AC, operating at 50 Hz to 60 Hz (or 400 Hz depending on configuration options). Rated power ranges from 550 W to 750 W when fully equipped.

❓ What are the physical dimensions and weight of the device?

The standard unit dimensions are 435 mm × 192 mm × 460 mm with a weight of 21 kg. Units configured with the R&S®SMW-B94L option have a depth of 560 mm and weigh 30 kg.

❓ Is the generator suitable for harsh testing environments?

Yes, it is designed to meet strict standards including operating temperature ranges from 0℃ to +45℃, mechanical vibration resistance up to 150 Hz, and shock resistance in line with MIL-STD-810E.
