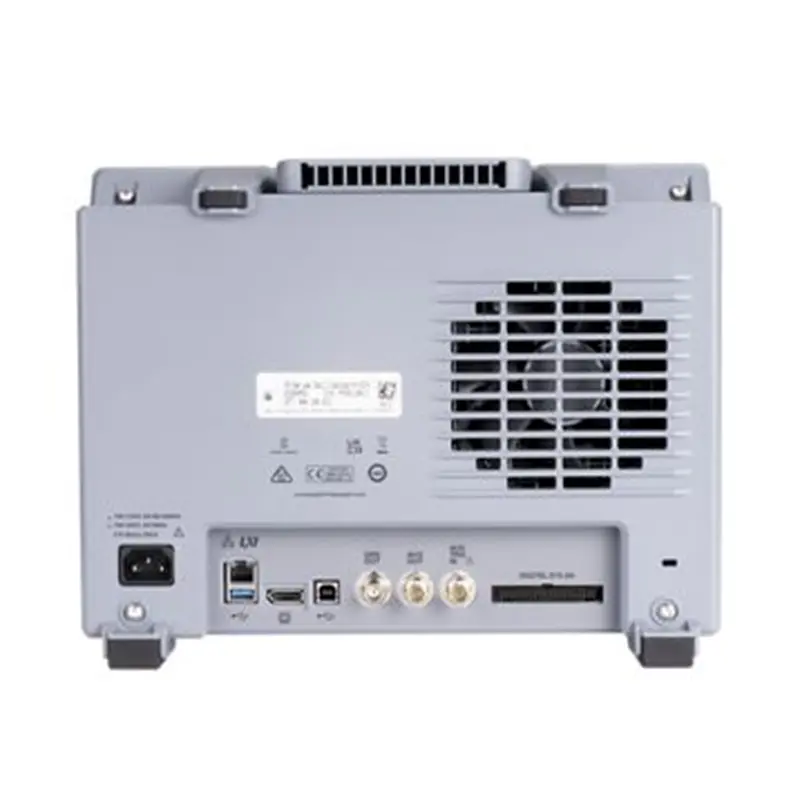

A portable oscilloscope with a specially designed application-specific integrated circuit (ASIC) that offers half the injected noise and four times the vertical resolution of other general-purpose oscilloscopes can be used for digital debugging. By using an oscilloscope that can view the tiny signals above the noise to detect the smallest and rarest signal faults, you may troubleshoot your design and guarantee product quality.
| Parameter | HD302MSO | HD304MSO |
|---|---|---|
| Bandwidth (-3 dB) | 200 MHz | 200 MHz |
| Calculated rise time (10 to 90%) | ≤ 3.5 ns | ≤ 3.5 ns |
| Input channels - Analog | 2 | 4 |
| Input channels - Digital | 16 | 16 |
| ADC Bits | 14 Bits | 14 Bits |
| Noise Floor | 48 µVrms at 2 mV/div, 1 GHz on a 50 Ω input | 48 µVrms at 2 mV/div, 1 GHz on a 50 Ω input |
| Waveform Update Rate | 1,300,000 waveforms/sec | 1,300,000 waveforms/sec |
| Maximum memory depth | 100 Mpts | 100 Mpts |
| Maximum sample rate | 3.2 GSa/s | 3.2 GSa/s |
| Dimensions (W x H x D) | 33.5 cm (13.2 in) x 26.2 cm (10.3 in) x 16.8 cm (6.6 in) |
| Weight | Net: 5.25 kg (11.6 lbs) |
Technical datasheet and product specifications document.
These oscilloscopes feature a 14-bit analog-to-digital converter (ADC) that delivers four times the vertical resolution of standard general-purpose oscilloscopes, allowing you to see highly detailed, tiny signals above the noise floor.
They feature a low noise floor of 50 µVRMS (and 48 µVrms under specific settings like 2 mV/div, 1 GHz on a 50 Ω input) which delivers half the injected noise compared to standard digital oscilloscopes.
The system features an ultra-fast update rate of up to 1,300,000 waveforms per second, helping engineers catch transient glitch faults and elusive signal errors easily.
They offer 100 Mpts of deep memory, enabling you to capture and record long periods of signal activity while keeping the maximum sampling rate intact.
While both models offer 200 MHz bandwidth, 16 digital channels, and 14-bit ADCs, the HD302MSO features 2 analog input channels, whereas the HD304MSO provides 4 analog input channels.
Zone triggering allows you to visually isolate complex waveforms simply by drawing a box on the display screen, making the search for specific signal anomalies faster and highly intuitive.
