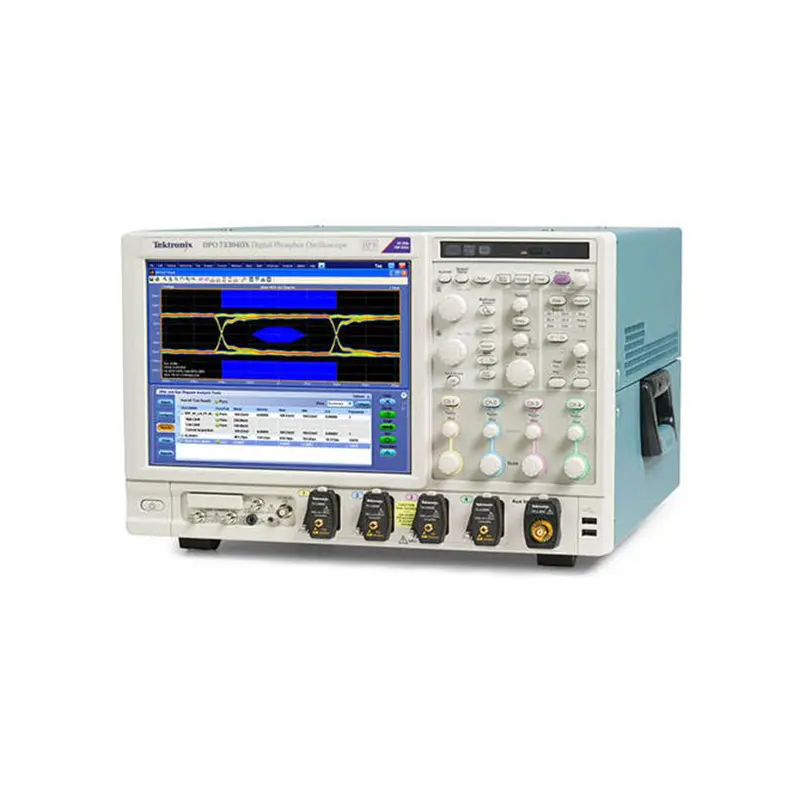

Wholesale Tektronix MSO70000 series DPO72304DX Mixed Signal and Digital Phosphor Oscilloscopes Manufacturer, Exporters
With its core capabilities of 23 GHz bandwidth, 50 GS/s synchronous sampling rate, and mixed-signal testing, combined with low-noise design, intelligent analysis tools, and flexible expandability, the Tektronix MSO72304DX serves as the essential tool for engineers in communications, semiconductor, and embedded systems to tackle high-speed signal measurement and complex system debugging. It effectively shortens debug cycles and enhances test accuracy.
As a flagship model within the MSO/DPO70000DX series, the Tektronix MSO72304DX is a high-end mixed signal oscilloscope (MSO) designed for high-speed signal testing and complex system debugging. It integrates exceptional signal acquisition performance, rich analysis capabilities, and flexible expandability. It supports engineers throughout the entire design cycle—from prototype initiation and design verification to production testing—providing critical support for overcoming measurement challenges involving high-speed analog and digital signals.
I. Core Performance Metrics
Bandwidth and Sampling Rate
Features 23 GHz analog bandwidth to cover signal measurement requirements for mainstream high-speed serial standards (e.g., PCI Express, USB). Supports up to 50 GS/s real-time sampling rate when all 4 channels operate simultaneously. Performance is further optimized in single-channel or dual-channel modes, enabling capture of subtle signal characteristics like fast edges and transient glitches while preventing signal distortion caused by undersampling.
Memory Depth and Waveform Capture
Standard 62.5 MS per channel memory depth, expandable to 500 MS (four channels). Combined with MultiView Zoom™ for rapid navigation of long recordings and efficient locating of critical signal segments. Waveform capture rate exceeds 300,000 wfms/s for swift capture of sporadic anomalies.

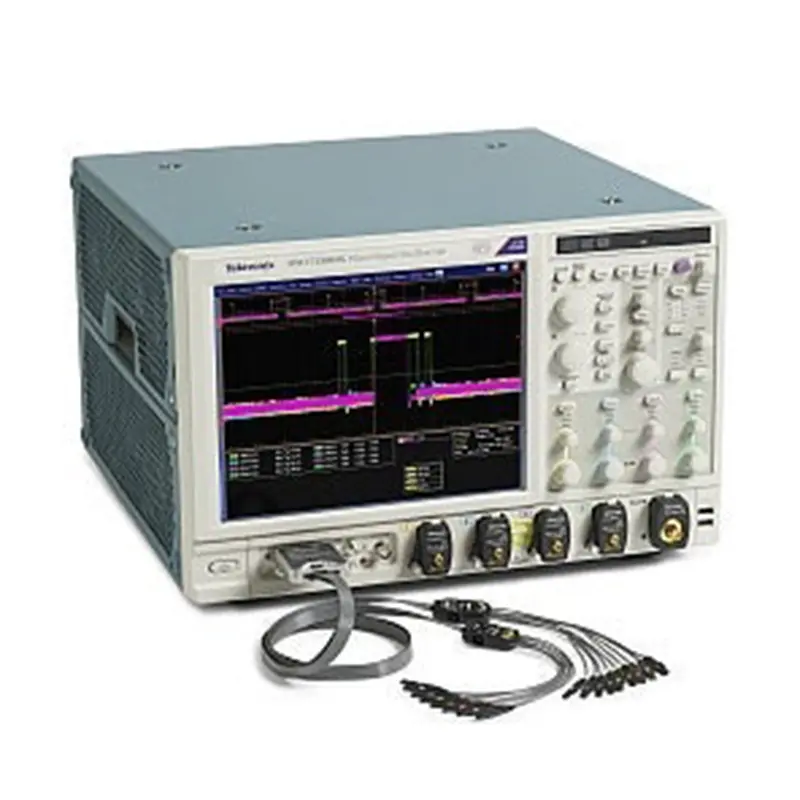

Mixed-Signal Test Capabilities
Integrated 16 logic channels with 80 ps timing resolution enable simultaneous analog and digital signal acquisition. Paired with unique iCapture® technology, analog characteristics of digital channels can be viewed with a single probe connection, significantly boosting mixed-signal debugging efficiency.
II. Core Functions and Technical Advantages
1. High-Precision Signal Acquisition and Restoration
Leveraging the series' signature low-noise front-end design, it delivers outstanding signal integrity and signal-to-noise ratio (SNR), maximizing waveform fidelity while minimizing interference from oscilloscope noise and jitter. Simultaneously supports per-channel bandwidth enhancement and selectable filters, enabling amplitude-phase correction tailored to probe characteristics. This ensures measurement accuracy across the 23 GHz bandwidth range, while users can disable bandwidth enhancement to boost measurement throughput as needed.
2. Intelligent Triggering and Analysis Tools
Precision Triggering System: Equipped with pinpoint triggering and Visual Trigger functionality to rapidly locate problematic signals and reduce debugging time. Supports 6.25 Gb/s real-time serial triggering, enabling first-time triggering on NRZ or 8b/10b encoded patterns to effectively isolate pattern-related signal anomalies.
Automated Analysis and Search: Includes extensive automated serial analysis options covering mainstream bus standards like I2C, SPI, CAN, PCI Express, and MIPI, supporting protocol decoding and compliance testing. Search and Mark functionality enables waveform or bus pattern matching for rapid signal targeting.
3. Professional Probes and Connectivity
Compatible with Tektronix's high-performance probe ecosystem. Recommended pairing with P7700, P7600, or P7500 series TriMode probe systems ensures precise impedance matching with the oscilloscope and probe tip calibration, safeguarding signal integrity. Additionally, high-performance logic probes like P6780 and P6717A (up to 2.5 GHz bandwidth) are available to meet high-speed digital signal testing demands. Connectivity features include front and rear panel USB 2.0 host ports for data storage, printing, and external keyboards. An integrated 10/100 Ethernet port enables network connectivity, while the Video Out port allows display content to be output to monitors or projectors, enhancing collaboration efficiency.
III. Typical Application Scenarios
Design Verification and Characterization: Performs signal integrity, jitter, and timing analysis on high-speed complex designs to accurately capture signal defects.
Analog-Digital Mixed Debugging: Simultaneously acquires analog signals and 16 digital logic signals to troubleshoot analog-digital interaction issues in embedded systems, processor interfaces, etc.
Serial Bus Testing: Supports compliance certification and automated measurements for mainstream high-speed serial standards, ensuring signal transmission meets industry specifications.
Power Supply and Transient Analysis: Used for power supply validation during prototype startup and for studying and capturing transient phenomena.
Production and System Testing: Performs functional verification in complex system manufacturing processes or conducts spectrum analysis on transient and broadband RF signals.
Category
Specification Details
Analog Performance
- Analog Bandwidth: 23 GHz (single-shot, across all 4 channels)
- Real-time Sample Rate: Up to 50 GS/s simultaneous on all 4 analog channels
- Rise Time: Fast enough to match 23 GHz bandwidth (typically ~15.2 ps)
Logic Performance (MSO)
- Number of Logic Channels: 16
- Timing Resolution: 80 ps
- Logic Sample Rate: 12.5 GS/s on all logic channels
Record Length
- Standard: 62.5 Megasamples (MS) per channel
- Optional: Up to 500 MS per channel (when using 4 channels); Up to 1 GS per channel (when using 2 channels)
- Logic Channel Record Length: Matches analog channel record length
Waveform Capture
- Maximum Waveform Capture Rate: >300,000 waveforms per second (wfms/s) per channel
Triggering Capabilities
- Serial Trigger: 6.25 Gb/s real-time; supports NRZ and 8b/10b encoded patterns
- Trigger Types: Pinpoint Trigger, Visual Trigger, waveform pattern trigger, serial bus pattern trigger
Probing Compatibility
- Analog Probes: P7700, P7600, P7500 TriMode probing system (calibrated to probe tip)
- iCapture® capability (view analog characteristics of digital channels via single probe connection)
- MultiView Zoom™ (for quick navigation of long records)
- Bandwidth enhancement (user-selectable, with magnitude/phase correction)

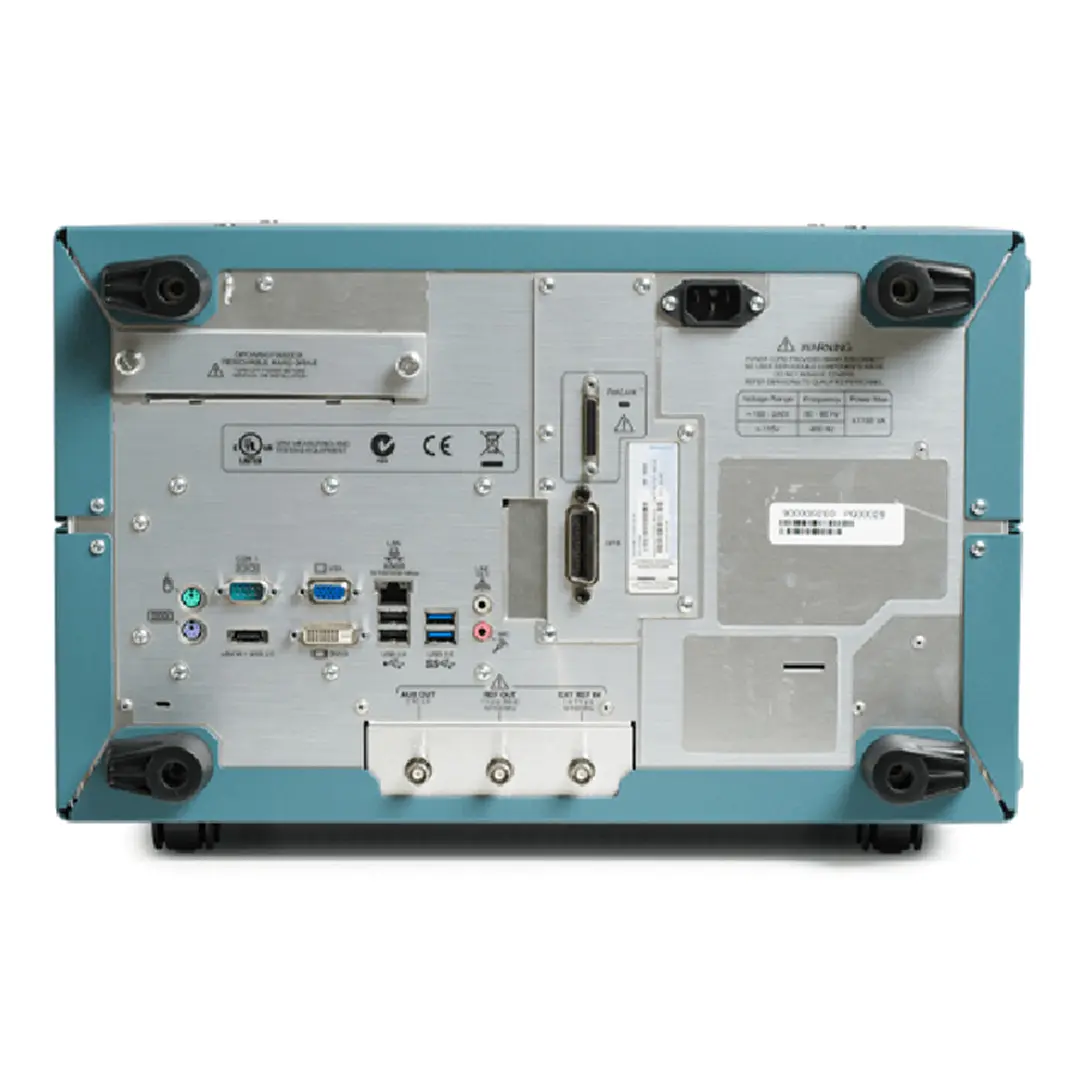

Connectivity
- USB 2.0 Host Ports: Front panel and rear panel (for data storage, printing, USB keyboard)
- Ethernet: Integrated 10/100 Ethernet port (network connection)
- Video Out: Port for display export to monitor/projector
Analysis Options
- Automated Serial Analysis: PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, MIPI® C-PHY/D-PHY/M-PHY
- Search and Mark: Waveform/serial bus pattern matching
Models: Tektronix MSO70000 series DPO72304DX Mixed Signal and Digital Phosphor Oscilloscopes

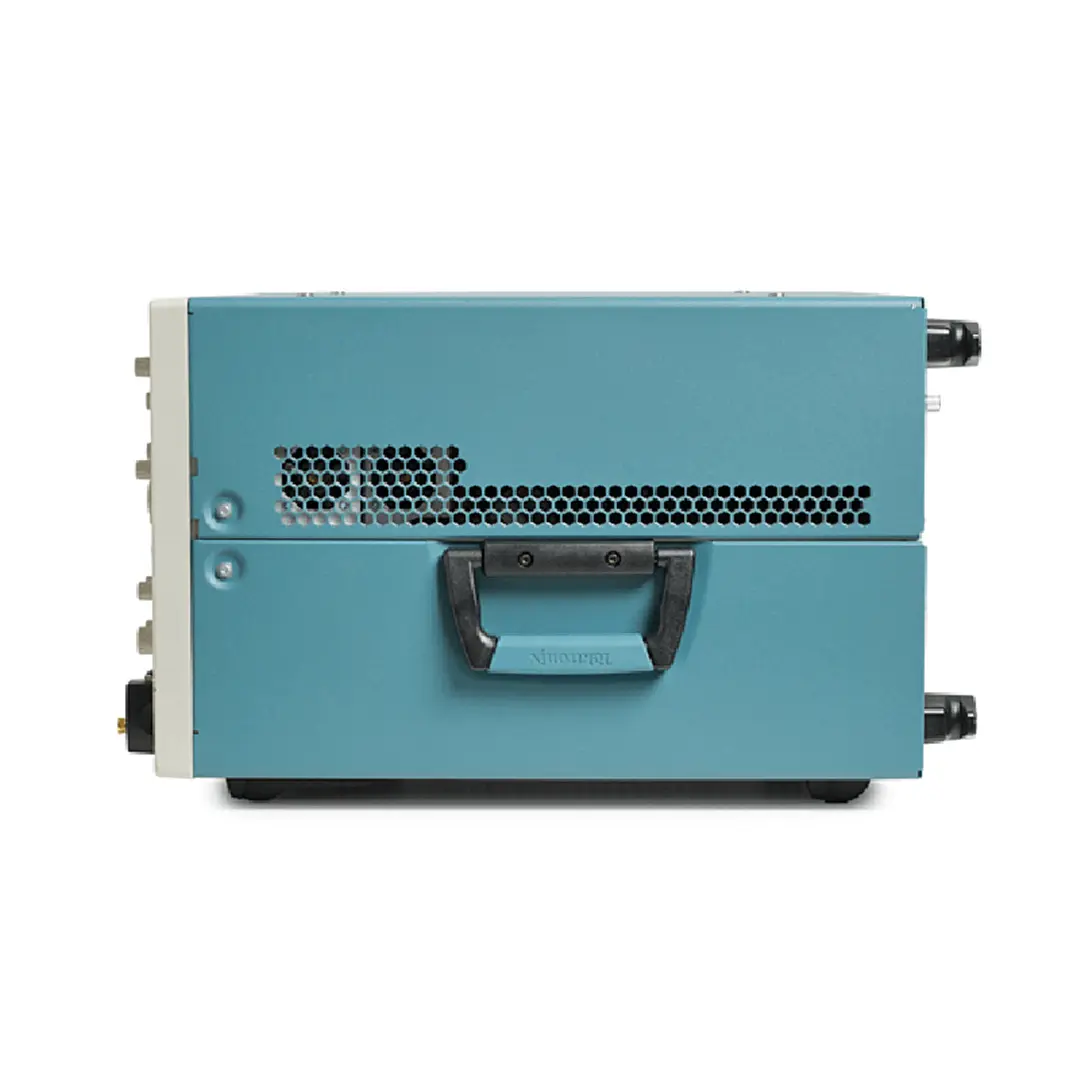

Dimension: 490*451*298mm
Net Weight: 24 kg
Battery parameters: Without battery
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
TEKTRO~1.PDF
Tektronix MSO70000 series DPO72304DX Mixed Signal and Digital Phosphor Oscilloscopes Document
Download
Frequently Asked Questions (FAQ)
What is the bandwidth and sampling rate of the MSO72304DX?
The Tektronix MSO72304DX features an analog bandwidth of 23 GHz on all 4 channels and supports a real-time sampling rate of up to 50 GS/s when operating all channels simultaneously.
How many digital logic channels does this mixed-signal oscilloscope offer?
It integrates 16 logic channels with a high timing resolution of 80 ps, allowing for simultaneous high-speed analog and digital signal measurements.
What is the standard and maximum record length memory capacity?
The standard record length is 62.5 MS per channel. It is optionally expandable up to 500 MS per channel across 4 channels or up to 1 GS per channel when using 2 channels.
What is the function of the unique iCapture® technology?
The unique iCapture® feature allows engineers to view the analog characteristics of digital channels using a single probe connection, which greatly increases debugging efficiency.
Which high-performance probes are compatible with this model?
It is compatible with Tektronix's high-performance TriMode probe systems (such as the P7700, P7600, and P7500 series) and high-performance logic probes like the P6780 and P6717A.
What are the primary application areas for the MSO72304DX?
Typical application scenarios include design verification and characterization of high-speed serial standards, analog-digital mixed debugging, serial bus compliance testing, power supply transient analysis, and complex system testing.
