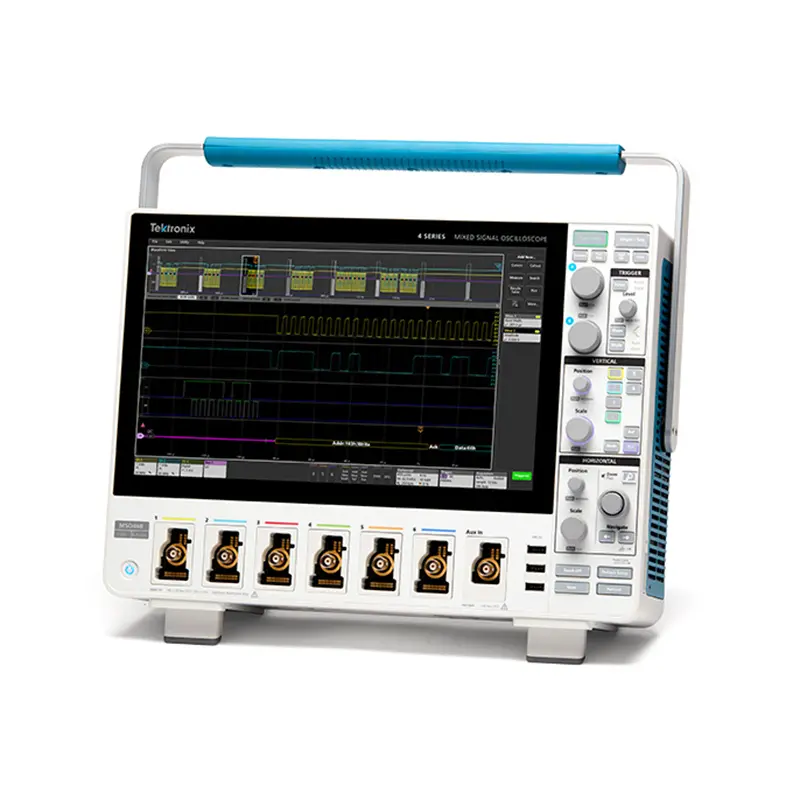

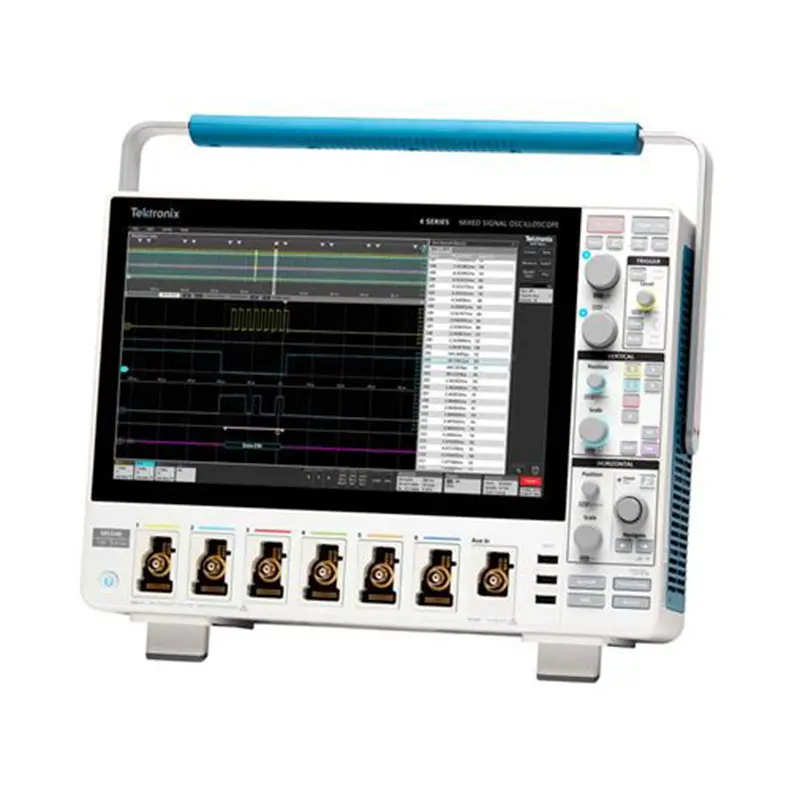

| Features | 4 channel model | 6 channel model |
|---|---|---|
| FlexChannel inputs | 4 | 6 |
| Maximum analog channels | 4 | 6 |
| Maximum digital channels (with optional logic probes) | 32 | 48 |
| Auxiliary Trigger Input | ≤300 V RMS (Edge Trigger only) | |
| Bandwidth (calculated rise time) | 200 MHz (2.3 ns), 350 MHz (1.3 ns), 500 MHz (900 ps), 1 GHz (450 ps), 1.5 GHz (333 ps) | |
| DC Gain Accuracy | 50 Ω: ±1.0%, (±2.5% at 1 mV/Div and 500 μV/Div settings), de-rated at 0.100%/°C above 30 °C | |
| 1 MΩ and 250 kΩ: ±1.0%, (±2.0% at 1 mV/Div and 500 μV/Div settings), de-rated at 0.100%/°C above 30 °C | ||
| ADC Resolution | 12 bits | |
| Vertical Resolution | 8 bits at 6.25 GS/s | |
| 12 bits at 3.125 GS/s | ||
| 13 bits at 1.25 GS/s (High Res) | ||
| 14 bits at 625 MS/s (High Res) | ||
| 15 bits at 250 MS/s (High Res) | ||
| 16 bits at ≤125 MS/s (High Res) | ||
| Sample Rate | 6.25 GS/s on all analog / digital channels (160 ps resolution) | |
| Record Length (std.) | 31.25 Mpoints on all analog / digital channels | |
| Record Length (opt.) | 62.5 Mpoints on all analog / digital channels | |
| Waveform Capture Rate, typical | >500,000 wfms/s | |
| Arbitrary/Function Generator (opt.) | 13 predefined waveform types with up to 50 MHz output | |
| DVM | 4-digit DVM (free with product registration) | |
| Trigger Frequency Counter | 8-digit frequency counter (free with product registration) | |
