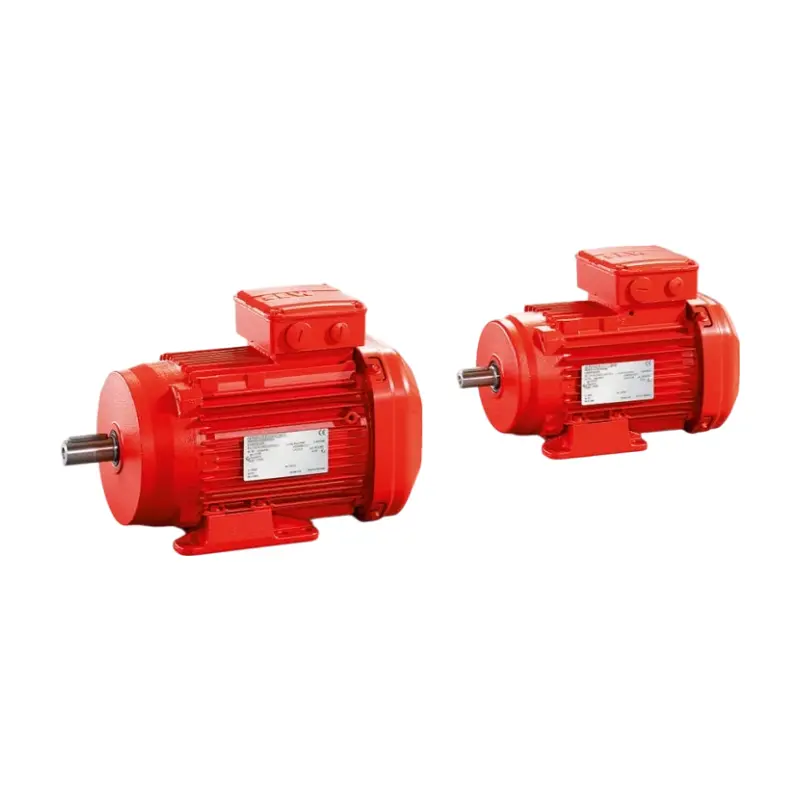

Wholesale Sew Eurodrive Motor DRN SeriesDRN160L4/FG/TF Manufacturers, Products

i

Overview

The SEW Eurodrive DRN160L4 is a top-tier IE3 energy-efficiency motor in the DRN series. The following is an overview of its key features:

Basic Parameters

Frame Size: 160 (Frame Center Height: 160mm)
Number of Poles: 4 (Synchronous Speed: 1500rpm, Rated Speed: approximately 1450rpm; actual specifications subject to change)
Energy Efficiency Class: IE3 (High-efficiency motor, meets international energy efficiency standards, low energy consumption, and more economical operation)

Power Range

Typically, the rated power of this model is around 11kW (specific power may vary slightly depending on configuration; please refer to official technical data).

Structure and Features

Cooling Method: The most common type is self-ventilated (IC411), using the motor's built-in fan for cooling, suitable for most common operating conditions.
Mounting Method: Supports standard mounting methods such as B3 (anchor mount) and B5 (flange mount); actual product configurations subject to change.
Protection rating: Typically IP55 (dustproof and protected against low-pressure water jets), meeting the protection requirements of most industrial environments.
Insulation rating: Typically Class F (maximum temperature 155°C), offering excellent heat resistance and extending motor life.

Application Scenarios

Suitable for industrial drive systems requiring high energy efficiency, such as conveyors, mixing equipment, packaging machinery, and machine tools. It can be used in conjunction with SEW reducers and other products to create a highly efficient transmission solution.

⚙

Specifications

Parameter	Value
Model	DRN160L4/FG/TF
Brand	SEW Eurodrive
Weight	320.000 lb
Corrosion Protection	Yes
Surface Protection	OS2 (to technical data sheet 01802 _ _ 94)
Paint Coat	Top coat RAL 7031 (blue grey)
Output Design	FG = integral motor
Output Shaft End	Pinion spigot 28 mm
Fitted Pinion No.	0004332X
Flange	FG 215 D250
Motor Speed	1777 r/min
Motor Power	15 kW (20 hp)
Motor Frequency	60 Hz
Cyclic Duration Factor	S1
Motor Voltage/Conn. Type	230/460 V, double delta/delta
Rated Current	50.00 A (230 V) / 25.00 A (460 V)
cos φ	0.8
Thermal Cl./Enclosure	155 (F) / IP66
Service Factor	1.15
International Efficiency Class	IE3
Efficiency at 50/75/100% PN	92.3% / 93.3% / 93.0%
CE Mark	Yes
Design Specification	Canada (CSA)
EISA Identification	Yes, conform to EISA
K.V.A. Code	L
Design	IEC H
Motor Protection	TF = 3 temperature sensor (Nat 130) and 3 temperature sensor (Nat 150)

✓

Models

Sew Eurodrive Motor DRN Series: DRN160L4/FG/TF

📦
