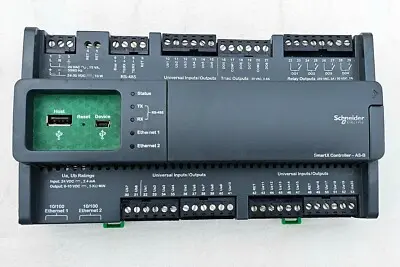

💡 Device Summary: The core component of an EcoStruxure BMS is the SpaceLogic AS-B server. It carries out tasks like trend logging, alarm supervision, and control logic.
In addition to supporting communication and connectivity to the field buses, it has built-in I/O. With its integrated power supply and I/O, this robust device is appropriate for control applications at the BMS plant room level. With its integrated I/O, the SpaceLogic AS-B server can function as a stand-alone server or controller.
It can also be used to monitor and control field bus devices. Its measurements are 64 mm (2.5 in.) deep, 198 mm (7.8 in.) wide, and 110 mm (4.3 in.) high. The AS-B-36-P model has 36 I/O points, providing a diverse mix of I/O points and connectivity options. It works with the SpaceLogic IP-IO modules for I/O expansion and the SpaceLogic Zigbee Adapter for Zigbee wireless communication. Its measurements are 110 mm (4.3 in.) tall, 198 mm (7.8 in.) wide, and 64 mm (2.5 in.) deep.
There are two spare parts available: terminal blocks (SXWASBCON10001) and an installer kit (SXWASBINS10001). The AS-B-36-P variant only includes hardware; the AS-B software package must be purchased separately. Spare parts are available for the AS-B connection kit (SXWASBCON10001) and the AS-B installer kit (SXWASBINS10001).
| Main | |
| Communication Service | Modbus TCP server, SMTPS e-mail notification, SMTP e-mail notification, Modbus TCP client, SNMP network management |
| Network Frequency | 60 Hz, 50 Hz |
| Ambient Air Temperature for Storage | -4…158 °F (-20…70 °C) |
| IP Degree of Protection | IP20 |
| Width | 7.8 in (198 mm) |
| Product Certifications | ICES-003, BTL, FCC part 15 class B, cULus, CE, RCM |
| Power Consumption in W | 10 W |
| Power Consumption in VA | 15 VA |
| Clock Drift | +/- 52 s/month |
| Product or Component Type | Controller system |
| Device short name | AS-B-36-P |
| Display Type | FSTN transflective LCD |
| Display Resolution | 128 x 64 pixels |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Input/Output Type | 28 universal I/O |
| Relative Humidity | 0…95 % non-condensing |
| Memory Type | 256 MB FRAM, 2 GB flash |
| [Us] Rated Supply Voltage | 19...29 V AC, 21...33 V DC |
| Number of Outputs | 4 relay, 4 triac |
| Height | 4.5 in (114 mm) |
| Product Weight | 11.11 lb(US) (5.04 kg) |
| Depth | 2.5 in (64 mm) |
| Number of Port | 2 ETHERNET |
| Range | EcoStruxure Building Operation |
| Complementary | |
| Switching frequency | 25 Hz |
| Web services | HTTP server, Programmable scripts : alarm summaries, report management, TLS 1.0 |
| Mounting Support | DIN rail |
| Product Compatibility | Xenta, Johnson Control, Balco, Continuum, Satchwell, I/NET, Honeywell |
| Product brand | Schneider Electric |
| Display colour | Monochrome |
| Analogue input type | Configurable voltage, current or probe 0...20 mA / 0...10 V, connection of probes (20 kOhm, 10 kOhm, 2.2 kOhm, 1.8 kOhm, 1 kOhm, 10 kOhm with shunt) |
| Integrated connection type | USB 2.0 type A, USB type mini B, Ethernet RJ45, Serial link RS485 |
| Display type | FSTN transflective LCD 1.4 x0.7" (36 x 17 mm) |
| Flame retardance | UL94V0-5VB |
| Communication port protocol | BACnet, Modbus TCP master RS485, Modbus TCP slave RS485, HTTPS RJ45, HTTP RJ45 |
| Realtime clock | With |
| Supply | Power supply 24 V, <0.5 A |
| Processor name | Spear 320s |
| Standards | UL 916, FCC CFR 47 part 15 |
| Material | ABS/PC |
| Electrical connection | Plug-in sub-base, terminal with a manual override switch |
| Environment | |
| Temperature probe type | LG-Ni 1000 - 50...150 °C, Ni 1000 - 50...150 °C, Pt 1000 - 50...150 °C |
| Ordering and shipping details | |
| Category | US1BMS180230 |
| Discount Schedule | BMS1 |
| GTIN | 3606482135468 |
| Returnability | Yes |
| Country of origin | LV |
Model Reference: Schneider SpaceLogic automation server, AS-B-36, 36 I/O points, BACnet, MS/TP, modbus, scalable [TAA] SXWASB36PX10001
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 8.2 in (20.8 cm) |
| Package 1 Width | 4.6 in (11.6 cm) |
| Package 1 Length | 2.8 in (7.2 cm) |
| Package weight(Lbs) | 19.8 oz (560 g) |
