The PowerLogic PM8000 series meters are tiny, low-cost multifunction power meters that will assist you in ensuring the reliability and efficiency of your power-critical facilities.
The modular, versatile ION technology architecture allows for a straightforward, building block approach to personalizing each meter for any application. Featuring unique Disturbance Direction Detection, revenue-grade precision, several communication connections, onboard power quality analysis, a web interface, and a color graphical display. Third-party labs certify energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S).
The PowerLogic PM8000 series ensures consistent data quality. Secure protocols (HTTPS, SFTP), security event recording, and the Syslog protocol are all examples of cybersecurity characteristics. Communication ports can be enabled or disabled, and there are 50 user accounts that can be configured. With 512 MB of memory, you may store 50 data logs, 50+ user-defined alarms, waveform captures, 1/2 cycle RMS recording, custom web pages, min/max logs, energy trends, and Time of Use.
The ability to timestamp events to +/-1 milliseconds using time synchronization methods such as PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485), and network time set function. There are three digital inputs and one digital output, with the potential to add up to four option modules. I/O option modules have two relays and six digital inputs, or two analog outputs and four analog inputs. The control power range is 90-415 VAC / 110-415 VDC. Operating temperatures range from -25 to +70 degrees Celsius; humidity levels range from 5% to 95%; and altitudes reach up to 3000 meters. Panel mount (1/4 DIN) with integrated display.
| Main | |
| Range | PowerLogic |
| Product name | PowerLogic PM8000 |
| Product or Component Type | Power meter |
| Device short name | PM8240 |
| Market segment |
Buildings large building cost management: billing: sub feeder Buildings small building network management: main incomer Buildings medium building network management: main incomer Buildings large building network management: main incomer Buildings large building network management: sub feeder Buildings multi-site network management: main incomer Buildings multi-site network management: sub feeder Data center network management: main incomer Data center network management: sub feeder Healthcare network management: main incomer Healthcare network management: sub feeder Industry network management: main incomer Industry network management: sub feeder Utility: sub feeder |
| model type | Standard |
| Complementary | |
| Power quality analysis |
EN 50160 2010 compliance report IEEE 519 2014 compliance report IEC 61000-4-30 class S power quality measurement up to the 63rd harmonic harmonic distortion waveform capture voltage sag and swell detection programmability (logic and math functions) IEC 62586 power quality monitoring disturbance direction detection rapid voltage change |
| Device Application | Power monitoring / WAGES metering |
| Type of measurement | Current, Voltage, Frequency, Active and reactive power total, Apparent power total, Power factor total, Active and reactive power per phase rms, Apparent power per phase rms, Power factor per phase rms |
| supply voltage | 90...415 V AC 45...65 Hz +/- 10 % / 110...415 V DC +/- 10 % |
| Network Frequency | 50 Hz / 60 Hz |
| Line Rated Current | 1 A / 5 A / 10 A |
| Poles description | 3P + N / 3P / 1P + N |
| Power Consumption in VA | 16 VA 230 V AC |

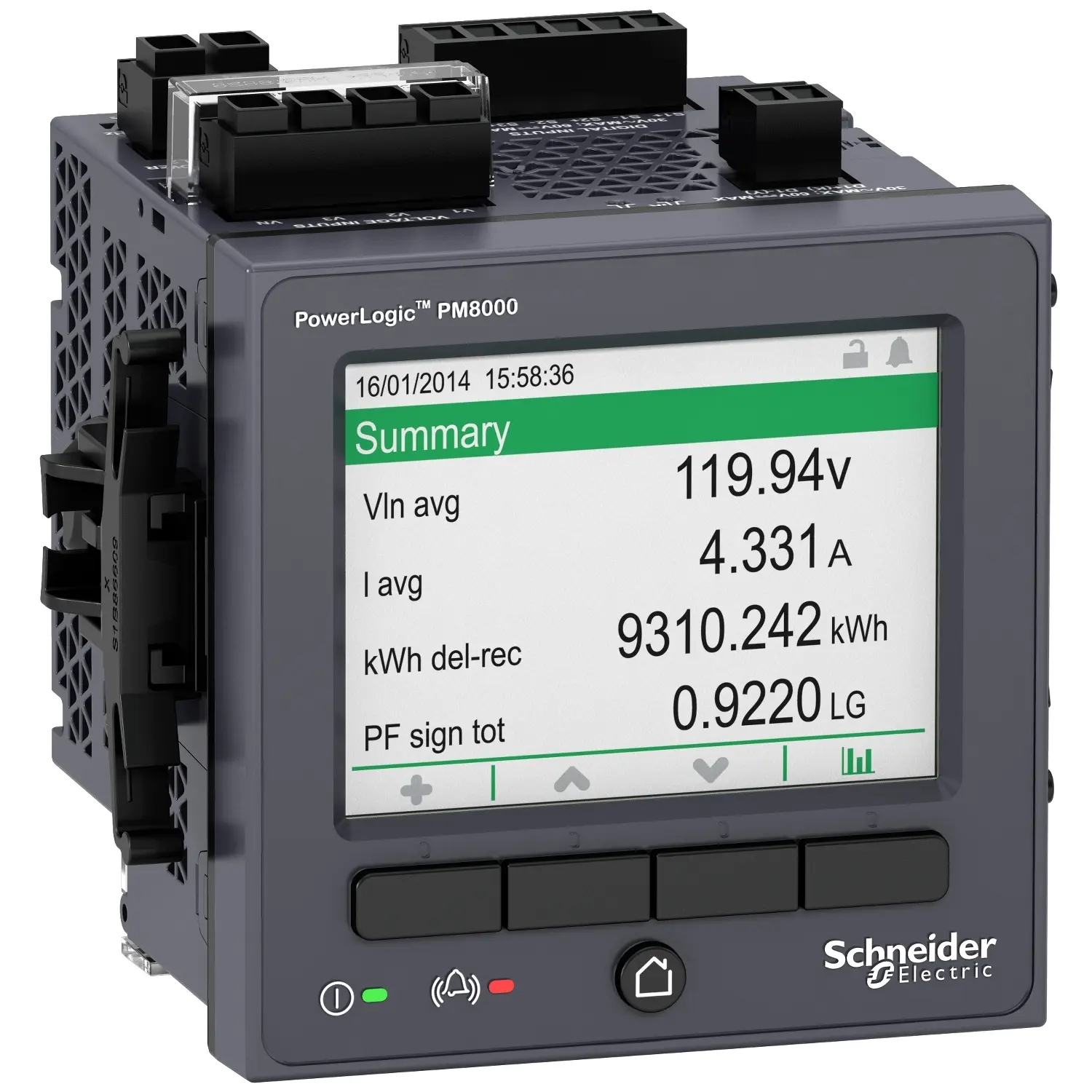

| Display Type | Colour TFT LCD |
| Display Resolution | 320 x 240 pixels QVGA |
| Sampling rate | 256 samples/cycle |
| Measurement current | 50…10000 mA |
| Analogue input type | Voltage (impedance 5 MOhm) / Current (impedance 0.3 mOhm) |
| Measurement voltage | 57…400 V AC 42...69 Hz between phase and neutral / 100…690 V AC 42...69 Hz between phases |
| Frequency measurement range | 42…69 Hz |
| Number of inputs | 3 digital 30 V AC / 3 digital 60 V DC |
| Measurement accuracy | Current +/- 0.1 % / Voltage +/- 0.1 % / Active energy +/- 0.2 % |
| Accuracy class | Class 0.2S active energy IEC 62053-22, Class 0.2 active energy ANSI C12.20, Class 0.2 active power IEC 61557-12, Class 0.5S reactive energy IEC 62053-24, Class 0.5 power factor IEC 61557-12, Class 0.2 voltage IEC 61557-12, Class 0.2 current IEC 61557-12 |
| Number of Outputs | 1 pulse |
| Information displayed | Voltage, Current, Frequency, Power, Energy consumption, Harmonic distortion |
| Communication port protocol | Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IP, Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004 |
| Communication port support | ETHERNET / Screw terminal block RS485 |
| Communication Network Type | IPv6 (internet protocol) |
| Data recording | Min/max of instantaneous values, Waveform logs, Sequence of event recording, Time stamping, Alarm logs, Trending/forecasting, Sag and swell logs, Harmonics logs, GPS synchronisation, Data logs, Event logs, 50 data recorders |
| Memory capacity | 512 MB |
| Web services | Customizable home page, File upload/download via FTP/SFTP, Web server, Alarm notification by e-mail, Viewing of captured waveform (FTP/web), HTTPS server |
| Communication Service | SMTP e-mail notification, RSTP support, NTP time synchronization, DHCP, PTP time synchronization |
| Cybersecurity | Enable/disable communication ports, Password protection, Syslog protocol support, Robust security logs, Port hardening |
| Mounting Mode | Flush-mounted |
| Mounting support | Framework |
| Installation category | III |
| Safety Construction | III400…690 V conforming to IEC 61010-1:ed. 3 / EN 61010-1:ed. 3, III347…600 V conforming to UL 61010-1:ed. 3 / CSA C22.2 No 61010-1:ed. 3 |
| Standards | IEC 61557-12, IEC 62052-11, IEC 62053-24, IEC 62053-22, IEEE 1588, IEC 62586-2, IEC 61326-1 |
| Product certifications | CE, CULus, N998 |
| Width | 3.8 in (96 mm) |
| Depth | 3.05 in (77.5 mm) |
| Height | 3.8 in (96 mm) |
| Product Weight | 20.5 oz (581 g) |
| Environment | |
| Electromagnetic compatibility | Electrostatic discharge (IEC 61000-4-2), Radiated RF electromagnetic field immunity (IEC 61000-4-3), EFT/burst immunity (IEC 61000-4-4), Surge immunity (IEC 61000-4-5), Conducted RF disturbances (IEC 61000-4-6), Magnetic field at power frequency (IEC 61000-4-8), Voltage dips and interruptions immunity (IEC 61000-4-11), Immunity to impulse waves (IEC 61000-4-12), Conducted and radiated emissions (EN 55022 / EN 55011 / FCC part 15 / ICES-003), Conducted RF disturbances 2...150 Hz (CLC/TR 50579), Surge withstand (IEEE C37.90.1) |
| IP degree of protection | IP54 front: conforming to IEC 60529 / IP30 body: conforming to IEC 60529 |
| Relative humidity | 5…95 % |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 9842.52 ft (3000 m) |
| Compatibility code | PM8240 |
| Ordering and shipping details | |
| Category | US10PL109797 |
| Discount Schedule | 0PL1 |
| GTIN | 3.60648E+12 |
| Returnability | Yes |
| Country of origin | CA |

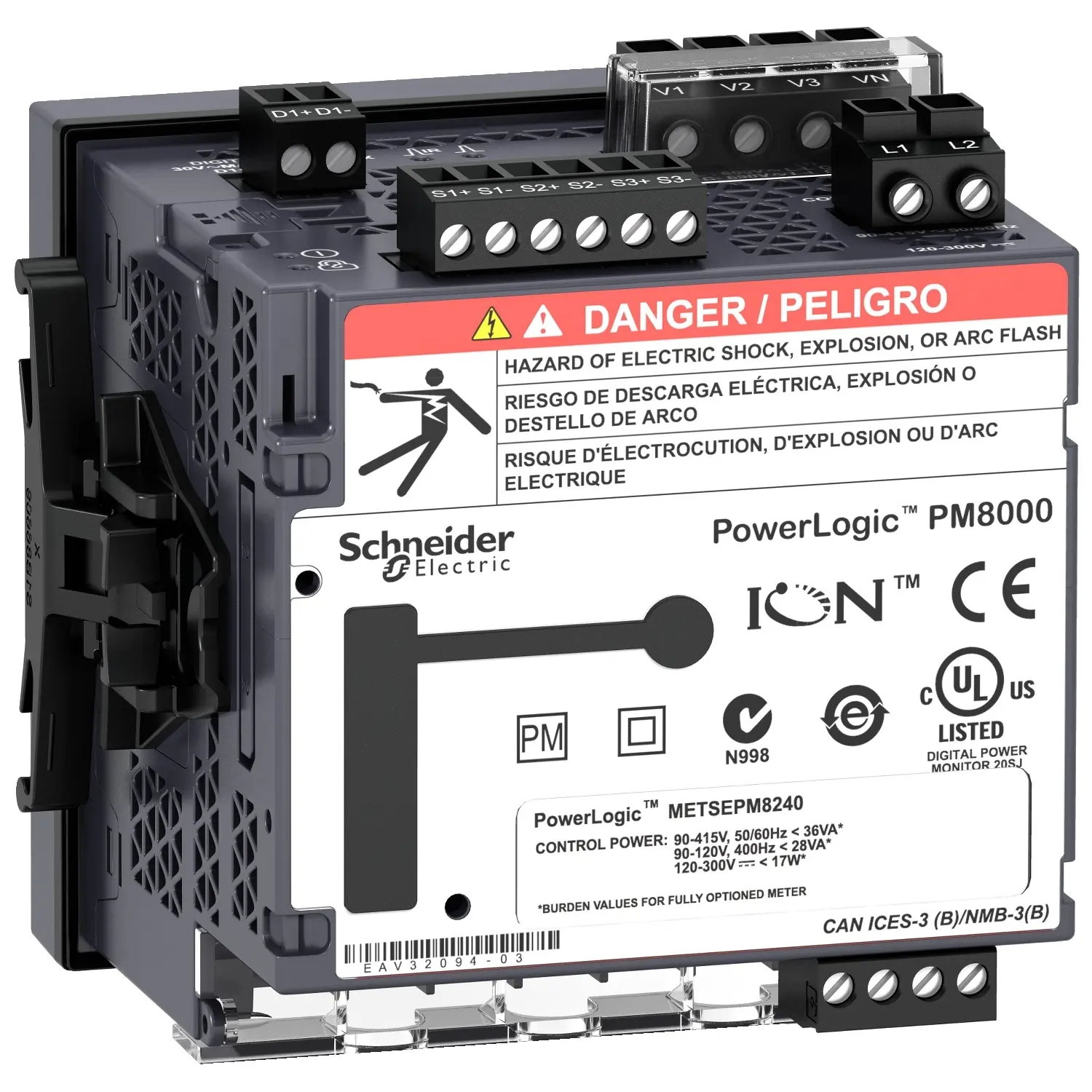

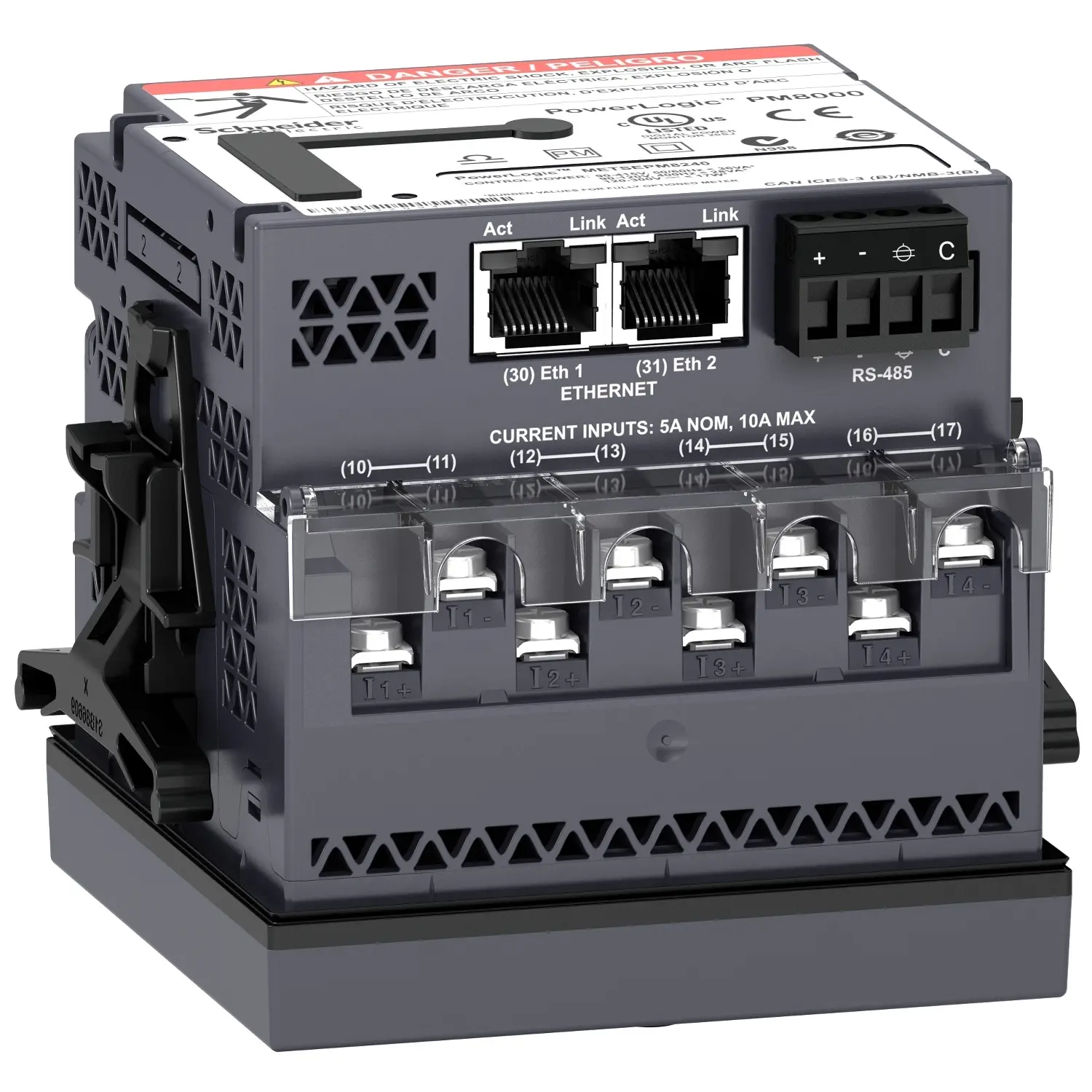

Model details: Schneider Power quality meter, PowerLogic PM8000, Standard, integrated display, 512 MB, 256 s/c METSEPM8240
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 5.394 in (13.700 cm) |
| Package 1 Width | 5.315 in (13.500 cm) |
| Package 1 Length | 7.283 in (18.500 cm) |
| Package weight(Lbs) | 29.647 oz (840.500 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 15.706 lb(US) (7.124 kg) |
