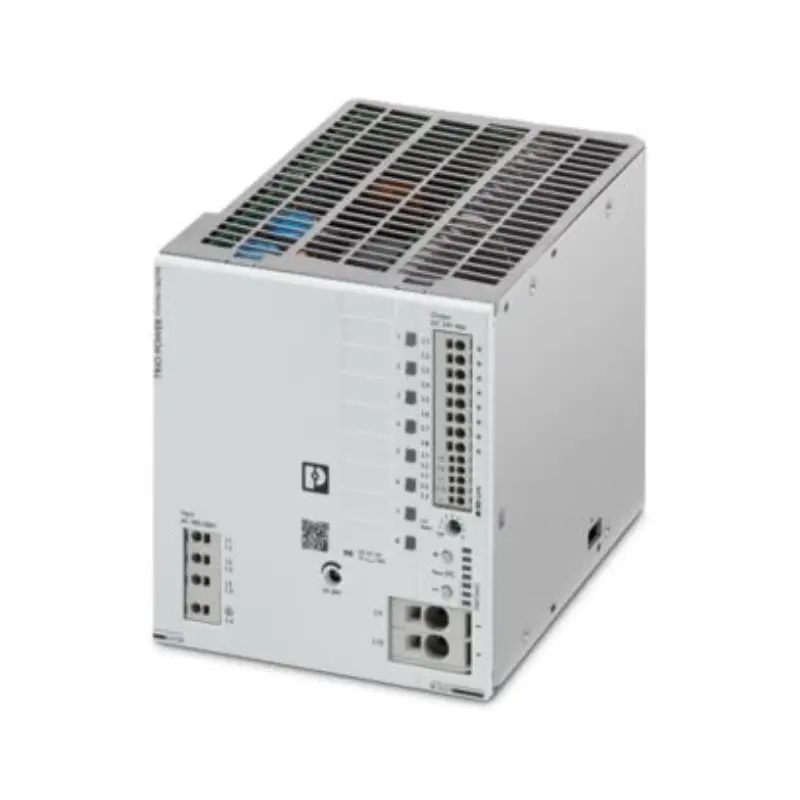

Utilizes plug-in connection technology, incorporates 8-channel electronic circuit breakers, supports IO-Link communication, and mounts via DIN rail.
Supports star networks (TN, TT, IT (PE)), with a rated input voltage range of 3x400V AC to 500V AC. Voltage tolerance of -20% to +10% for 3x400V AC to 500V AC and ±10% for 2x400V AC to 500V AC. Typical voltages are 3x400V AC and 3x480V AC. Frequency range is 50Hz to 60Hz ±10%. Power consumption ranges from 2x2.1A to 3x1.5A. Features a built-in 6.3A device protection fuse.
Rated output voltage is 24V DC, adjustable from 24V DC to 28V DC. Rated output current is 40A. Dynamic Boost provides up to 60A current for 5 seconds. Features 8 channels with selectable rated currents (1A to 10A). Output power is 960W, with a maximum dynamic power of 1440W for 5 seconds.
| Parameter | Specification Details |
|---|---|
| Supply system configuration | Star network (TN, TT, IT (PE)) |
| Nominal input voltage range | 3x 400 V AC ... 500 V AC |
| Input voltage range | 3x 400 V AC ... 500 V AC -20 % ... +10 % 2x 400 V AC ... 500 V AC ±10 % |
| Typical national grid voltage | 3x 400 V AC / 3x 480 V AC |
| Voltage type of supply voltage | AC |
| Inrush current | < 21 A (25 °C) |
| Inrush current integral (I2t) | < 0.77 A2s |
| Frequency range (fN) | 50 Hz ... 60 Hz ±10 % |
| Mains buffering time | typ. 21 ms (3x 400 V AC) / typ. 21 ms (3x 480 V AC) |
| Current consumption | 3x 1.5 A (3x 400 V AC) / 3x 1.2 A (3x 500 V AC) 2x 2.6 A (2x 400 V AC) / 2x 2.1 A (2x 500 V AC) |
| Protective circuit | Transient protection; Varistor |
| Power factor (cos phi) | 0.94 (3x 480 V AC) |
| Device mains fuse | 6.3 A internal (device protection) |
| Recommended breaker for input protection | 3x 6 A ... 16 A (Characteristic B, C, D, K or comparable) |
| Discharge current to PE | < 3.5 mA |
| Efficiency | typ. 94.4 % (3x 400 V AC) / typ. 94.6 % (3x 480 V AC) |
| Nominal output voltage | 24 V DC |
| Setting range of the output voltage (USet) | 24 V DC ... 28 V DC (> 24 V DC, constant capacity restricted) |
| Nominal output current (IN) | 40 A |
| Dynamic Boost (IDyn.Boost) | max. 60 A (5 s) |
| No. of channels | 8 |
| Nominal current per channel | 1 A, 2 A, 3.8 A, 4 A, 6 A, 8 A, 10 A |
| Waiting time after switch off of a channel | 5 s |
| Switch-on delay of the channels | 100 ms |
| Short-circuit-proof / No-load proof | Yes / Yes |
| Derating | 60 °C ... 70 °C |
| Crest factor | typ. 1.54 (3x 400 V AC) / typ. 1.53 (3x 480 V AC) |
| Output power (PN) | 960 W |
| Output power (PDyn. Boost) | max. 1440 W (5 s) |
| Connection in parallel / series | No / No |
| Max. capacitive load | 30 mF |
| Feedback voltage resistance | ≤ 35 V DC |
| Protection against overvoltage at output (OVP) | ≤ 35 V DC |
| Residual ripple | typ. 13 mVPP (with nominal values) |
| Control deviation | < 1 % (change in load, static 10%...90%) < 3 % (change in load, dynamic 10%...90%) < 0.1 % (change in input voltage ±10%) |
| Rise time | ≤ 1 s (UOut = 10 % ... 90 %) |
| Minimum / Maximum no-load power dissipation | < 1.37 W (3x 400 V AC) / < 0.77 W (3x 480 V AC) |
| Nominal load power dissipation | < 45.75 W (3x 400 V AC) / < 42.52 W (3x 480 V AC) |
| Integrated fuse protection | Yes |
| Product type / Product family | Power supply / TRIO POWER |
| MTBF (IEC 61709, SN 29500) | > 1,200,000 h (25 °C) > 660,000 h (40 °C) > 265,000 h (60 °C) |
| Environmental protection directive | RoHS Directive 2011/65/EU, WEEE, Reach |

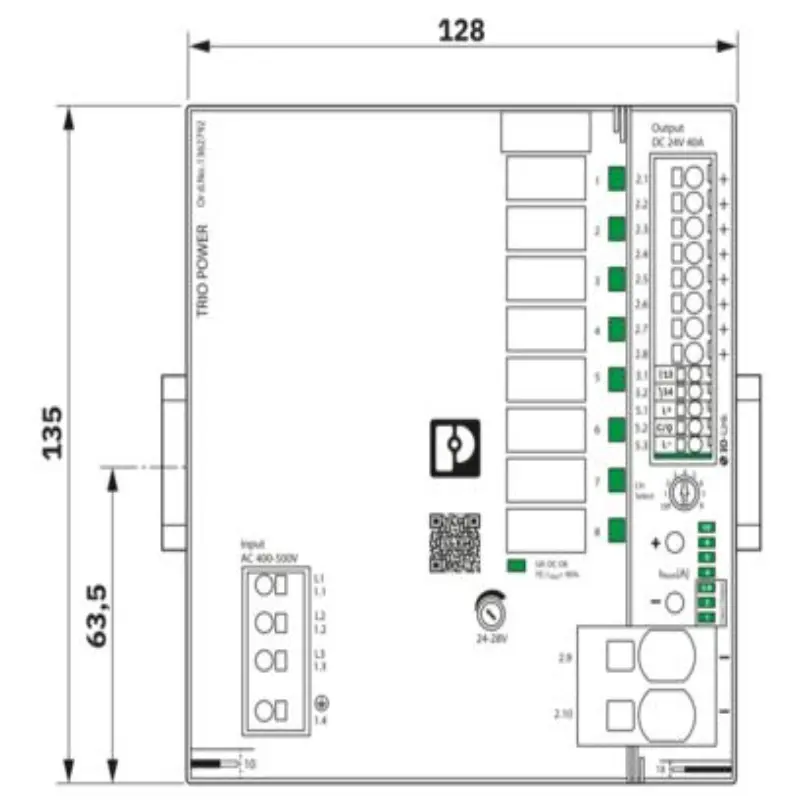

| Dimensions (W x H x D) | 128 mm x 135 mm x 167 mm (DIN rail depth: 160 mm) |
| Mounting type / position | DIN rail mounting / Horizontal DIN rail NS 35, EN 60715 |
| Item number | 1362792 |
| Shipping Parameter | Details |
|---|---|
| Item number | 1362792 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Weight per piece (including packing) | 2,760 g |
| Weight per piece (excluding packing) | 2,290 g |
| Customs tariff number | 85044095 |
| Country of origin | CN |
