Wholesale Parker Cast Iron Pumps PGP620 Series Suppliers, Exporters

The Parker 600 Series features a two-stage flanged valve body design, requiring less space for the pump/motor and facilitating installation in confined spaces, thus reducing OEM assembly labor costs. The Parker 620 Series is a constant displacement/positive displacement gear pump with an interlocked two-stage cast iron design, offering the highest volumetric efficiency and power density. Therefore, the 600 Series is ideal for engineering mobile equipment requiring energy-efficient hydraulic systems. The 600 Series is widely used in demanding applications such as construction, material handling, and military. This series of pumps is available in single-stage and multi-stage models and is equipped with pressure relief valves and cavitation protection.

Send Inquiry

Product Description

Product Overview

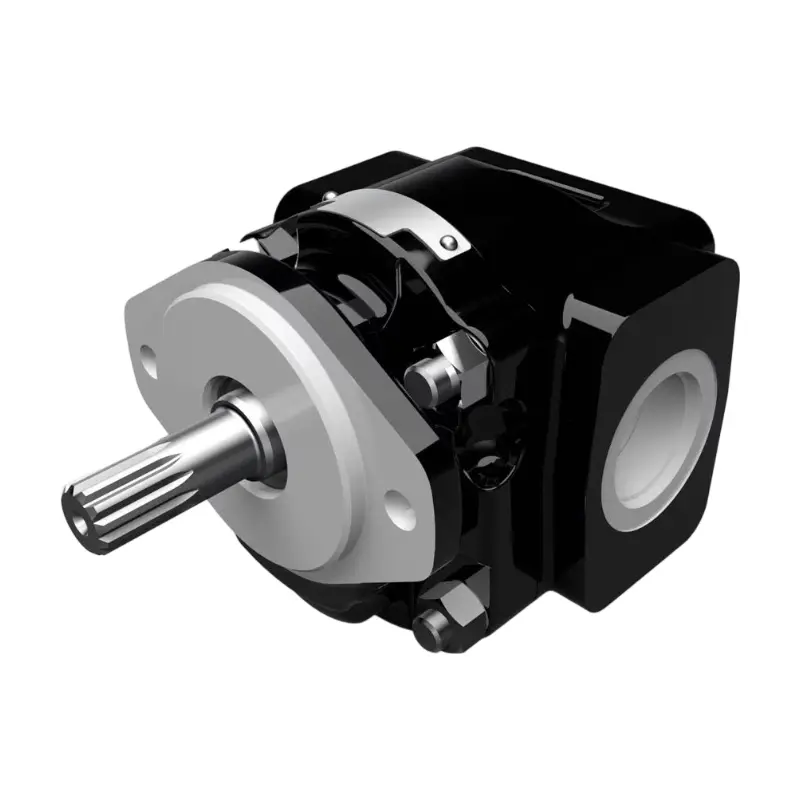

The PGP620 series is a fixed-displacement cast iron gear pump belonging to the PGP 600 series of cast iron pumps. It is well-received in multiple industrial fields for its high pressure resistance, high efficiency, and flexible configuration. The following is a detailed overview based on its core attributes:

Core Structural & Design Advantages

Robust structural design features a patented interlocking two-piece cast iron structure, providing high structural stability and durability. Equipped with 12-tooth gears, bronze balance plates, and a pressure-balanced design to enhance volumetric efficiency and reduce wear under high pressure.

Low-Noise & High-Power Design

Significantly reduced system noise compared with earlier generation models. Features high power through-drive capability, allowing stable power transmission in complex hydraulic systems to meet heavy-duty operation requirements.

Flexible Combination Configuration

Supports tandem, triple, and cross-frame pump configurations. Tandem and triple pumps can share a common inlet, which simplifies integration into different hydraulic system layouts and improves overall system configuration.

Main Application Fields

Thanks to its ruggedness and excellent high-pressure performance, the PGP620 series is widely used in scenarios requiring high-duty cycles and stable hydraulic power output. Typical application areas include construction machinery, agricultural equipment, material handling equipment, and forestry machinery (e.g., cement plant equipment, fan drivers, and implement hydraulics).

Extended Configuration Options

In addition to the basic single-pump configuration, the series provides customized options such as two-section and three-section configurations. It supports clockwise, counterclockwise, and bidirectional rotation modes, and is compatible with SAE standard shafts, flanges, and port sizes to meet the personalized installation and operation requirements of OEM customers.

Specifications

Specification Items	Details
Operating Pressure	up to 3989 psi, up to 275 bar
Flow Rate	n/a
Displacement	up to 50 cm³/rev, up to 3.1 inch³/rev
Body Material	Cast Iron
Drain Option	No
Charge Pump Included	No
Circuit Path	Open
Configuration	Single, Tandem, Multiple
Control Method	Relief, Load Sense, Priority, Unloading
Energy Recovery Capability	No
Filter Included	No
For Fluid Type	Standard Hydraulic Fluids, Phosphate-ester, Water-Glycol
Maximum Displacement	50 cm³/rev, 3.1 inch³/rev
Maximum Flow Rate	n/a
Maximum Fluid Temperature	80 °C, 180 °F
Minimum Fluid Temperature	-20 °C, 0 °F
Maximum Operating Pressure	275 bar, 3989 psi
Radial Load Capacity	Consult Technical Support
Maximum Operating Speed	3500 RPM
Maximum Kinematic Viscosity	7500 SUS
Minimum Kinematic Viscosity	50 SUS
Weight	13.3 kg (Max), 29 lb (Max)
Media	Liquid, Liquids
Mounting Option	SAE, ISO, DIN
Port Connection	SAE, ISO, NPT, BSPP, ODT
Port Type	Flange, Straight Threaded
Port Location	Side Ports, Rear Ports
Pump Type	Gear, Fixed
Direction of Rotation	Clockwise, Counterclockwise, Bi-Rotational
Shaft Type	SAE, ISO, DIN, Industry Specific
Thru-Drive Capability	No

Models & Features

The PGP620 Series fixed/positive displacement gear pump offers high performance and high power density due to its robust two-piece cast iron construction.

Two-piece, interlocking body construction for high efficiency and high pressure
Cast iron pumping sections for enhanced durability
Journal bushings optimized for long service life
Pressure balanced thrust plates to maintain high operating efficiency
Multiple sections available for complex systems

Delivery Information

Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the purchase requirements and destination location.

Manuals & Resources

Cast Iron Pumps PGP620 Series Datasheet.pdf

Technical specifications, dimensional drawings, and installation parameters.

Frequently Asked Questions

What is the maximum operating pressure for the PGP620 series?

The PGP620 series cast iron gear pump can handle operating pressures up to 3989 psi or 275 bar.

What are the displacement options for this pump?

The pump provides displacement configurations up to 50 cm³/rev (3.1 inch³/rev).

What types of fluids can be used with the PGP620 series?

It is compatible with standard hydraulic fluids, phosphate-ester, and water-glycol fluids.

Does the pump support multiple pump configurations?

Yes, it supports single, tandem, and multiple pump configurations, allowing flexible integration into various hydraulic layouts.

What rotation directions are available?

The PGP620 series supports clockwise, counterclockwise, and bi-rotational (bidirectional) rotation options.

What makes the construction of the PGP620 superior?

It features a patented interlocking two-piece cast iron structure, 12-tooth gears, and bronze balance plates for superior structural stability and efficiency.
