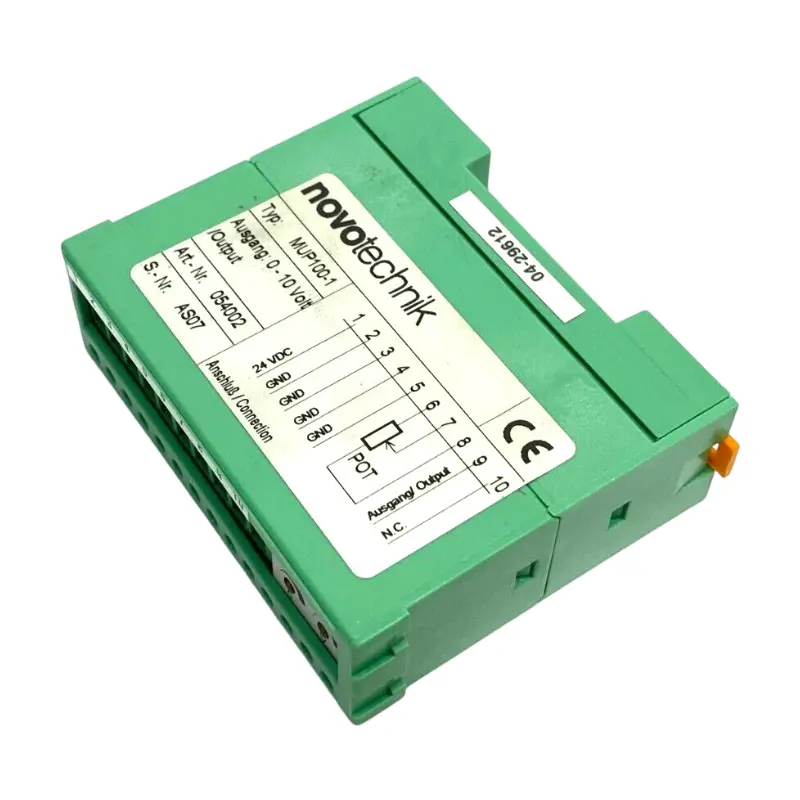

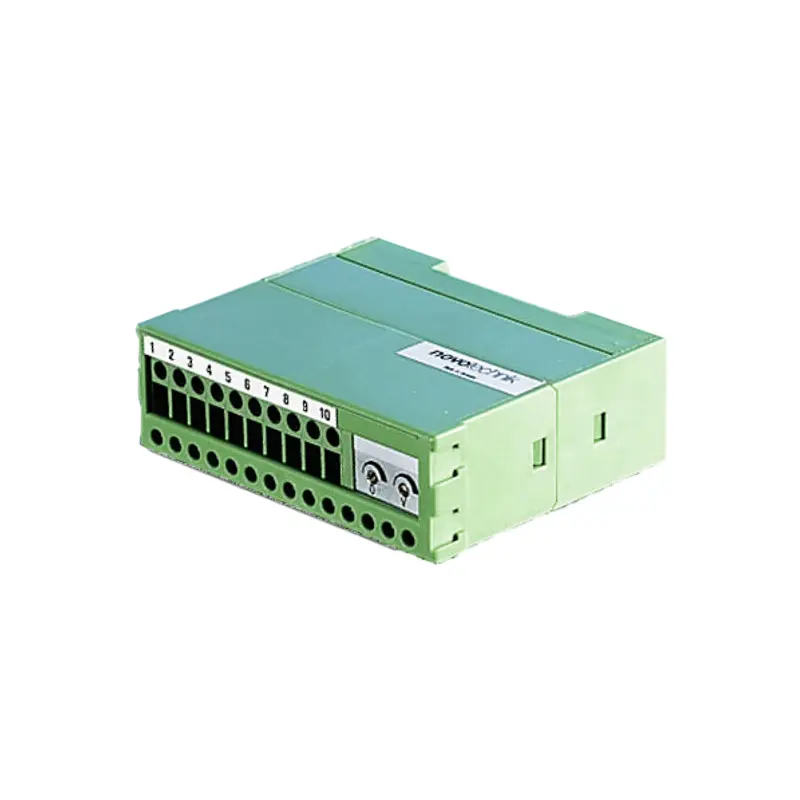

The Novotechnik MUP 100 is a dedicated analog signal conditioner designed for potentiometric linear and angular position sensors, which is widely used in manufacturing, automotive, and measurement control fields. Here is its detailed overview:
It is mainly used to match potentiometric displacement sensors. It provides a highly stable constant voltage for the connected sensors, collects signals from the sensor slider through a high-impedance input terminal without load, and converts them into standard signals proportional to the measured displacement. This ensures reliable and anti-interference signal transmission even over long distances.
Please note that the MUP 100 series is not recommended for new design projects. It is suggested to select the MUP 110/160 series instead for new designs. However, the MUP 100 remains available in the market and is widely used for maintenance and replacement of existing equipment.
| Parameter Category | Specifications |
|---|---|
| Model Series | Novotechnik MUP 100 (MUP100-0, MUP100-1, MUP100-4) |
| Application | Signal conditioning for potentiometric linear/angular position sensors |
| Supply Voltage | 15 – 30 VDC (unregulated power supply compatible) |
| Standard Output Options |
• MUP100-0: 0 to 20 mA • MUP100-1: 0 to 10 V • MUP100-4: 4 to 20 mA |
| Maximum Load Impedance | 500 Ω (for current output models: MUP100-0, MUP100-4) |
| Rated Load Current | 20 mA max (for voltage output model: MUP100-1) |
| Protection Features | Short-circuit protection (MUP100-1); optional galvanic isolation (with DC/DC converter) |
| Linearity Error | < 0.1% of full scale (FS) |
| Temperature Drift | Typical 20 ppm/K |
| Input Impedance | High-impedance (no loading on sensor wiper signal) |
| Mounting Standard | DIN EN 50022 rail mounting (35 mm standard rail) |
| Operating Temperature Range | 0 to 60 °C |
| Storage Temperature Range | -20 to 85 °C |
| Degree of Protection | IP20 (for panel/rail mounting in control cabinets) |
| Model | Standard Output | Key Parameters |
|---|---|---|
| MUP100 - 0 | 0 to 20 mA | Maximum load impedance of 500 Ω |
| MUP100 - 1 | 0 to 10 V | Maximum rated load current of 20 mA and short-circuit protection |
| MUP100 - 4 | 4 to 20 mA | Maximum load impedance of 500 Ω |
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
The Novotechnik MUP 100 is an analog signal conditioner designed to match potentiometric linear and angular position sensors. It provides a stable constant voltage to the connected sensors, collects signals without load through a high-impedance input, and converts them into standard output signals proportional to the measured displacement.
The series includes three primary models based on standard output signals: MUP100-0 (0 to 20 mA current output), MUP100-1 (0 to 10 V voltage output), and MUP100-4 (4 to 20 mA current output).
No, the MUP 100 series is not recommended for new designs. Novotechnik suggests opting for the newer MUP 110 or MUP 160 series instead. However, the MUP 100 remains fully supported and available for maintenance, repairs, and direct replacements in existing systems.
The unit is designed with a standard DIN EN 50022 rail-mounting interface (35 mm rail compatible). This design allows for quick, secure, and straightforward installation inside electrical control cabinets.
Yes, the MUP100-1 voltage output model features short-circuit protection. Additionally, certain variations in the series offer optional galvanic isolation equipped with an integrated DC/DC converter to isolate power and signal loops.
It operates on a wide input voltage range of 15 to 30 VDC. The device is highly adaptable and can be directly powered using standard, unregulated DC power supplies.
