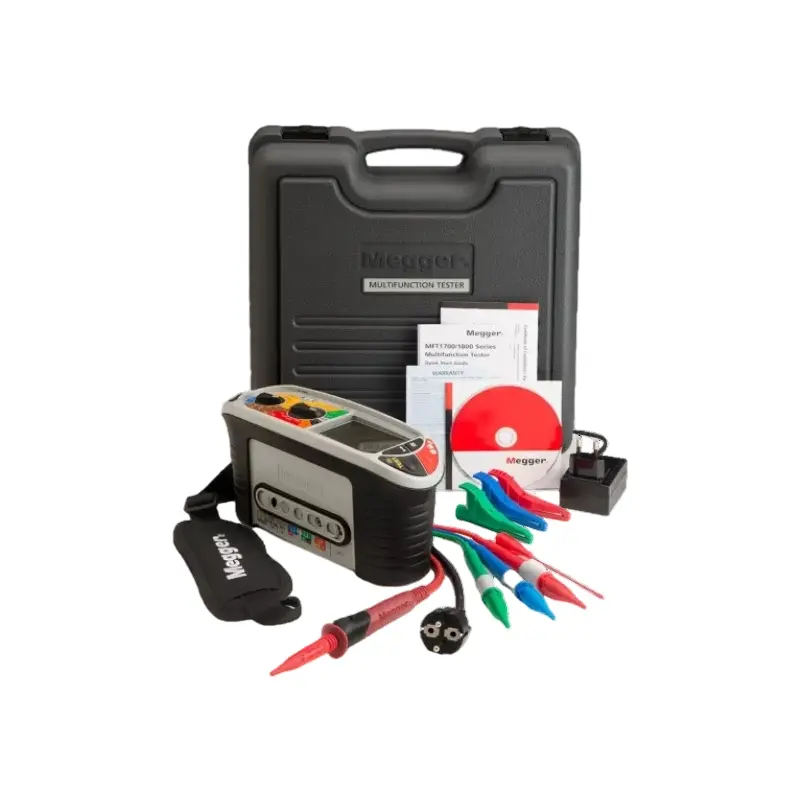

The Megger MFT1825 is a model in the MFT1800 series of multifunction installation testers, which are designed for testing low-voltage electrical installations in line with IEC 60364 derived standards.
| Parameter | MFT1825 |
|---|---|
| Insulation Resistance Test | 100V, 250V, 500V, 1000V, with test voltage display |
| Continuity and Resistance Test | 200mA and 15mA test currents, with adjustable buzzer threshold |
| RCD Test | Support for 1/2 × I, 1 × I, 5 × I & ramp current, 2 × I; fast ramp, automatic test; applicable to AC, A, S, B (pure DC), programmable RCDs, 3-phase RCDs (without ground); support for 10mA, 30mA, 100mA, 300mA, 500mA, 1000mA RCDs |
| Earth Electrode Resistance Test | 2-pole and 3-pole methods |
| Loop Resistance Test | Two-wire and three-wire non-trip loop tests, relative to ground test; two-wire high-current test, phase-to-phase test and phase-to-ground test; voltage range 50V – 480V (phase-to-ground), 50V – 280V (phase-to-phase); phase-to-phase test; ground fault current and short-circuit current display (20kA); ground fault contact voltage display (0V~253V) |
| Other Functions | Power supply voltage test, phase rotation test, backlight, automatic power saving, calibration certificate |
| Models | Megger MFT1825 MFT1800 Series Multifunction installation testers |
|---|---|
| Feature Highlights |
|
