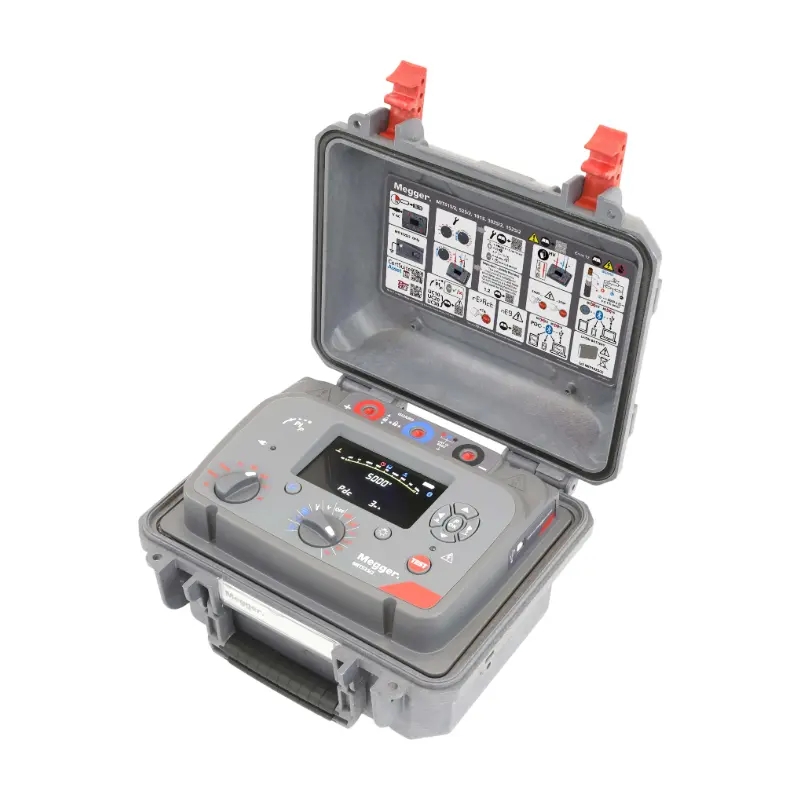

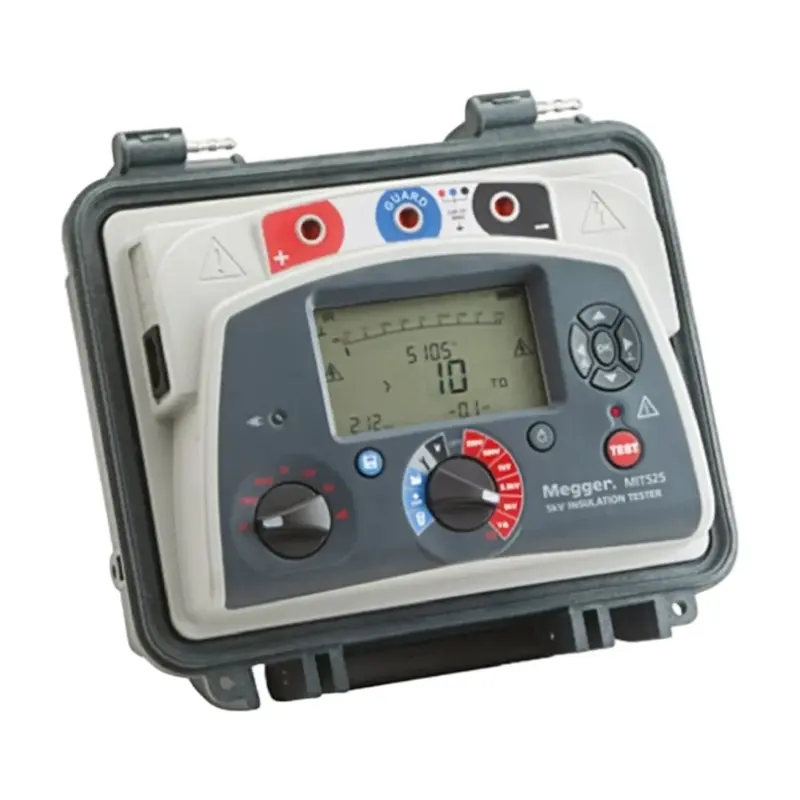

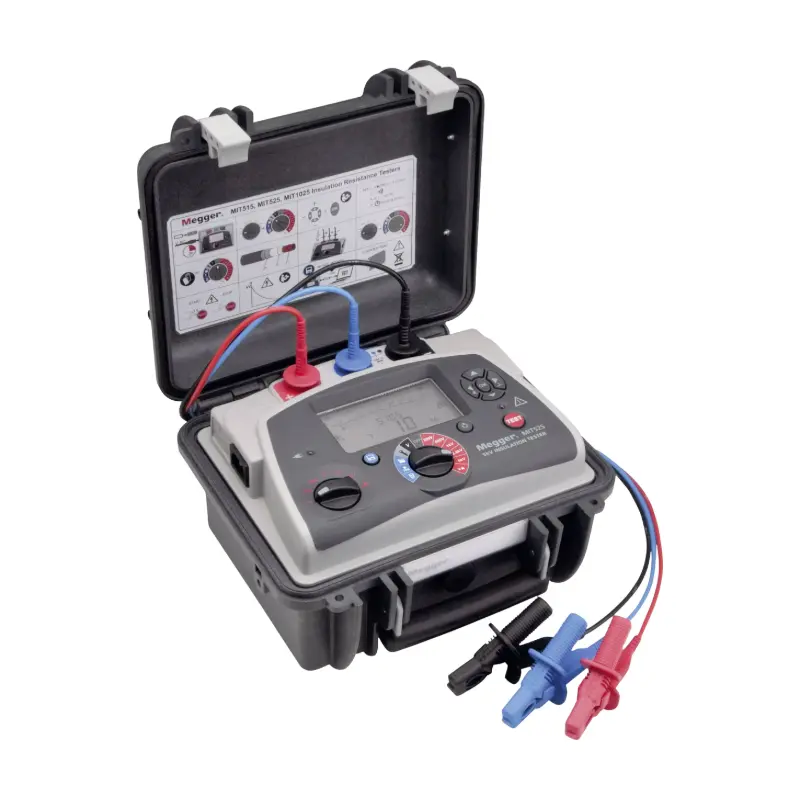

| Parameter | Specification |
|---|---|
| Insulation Resistance Range | Analog: 100 kΩ - 10 TΩ Digital: 10 kΩ - 10 TΩ |
| Test Voltage | Fixed: 250 V, 500 V, 1000 V, 2500 V, 5000 V User - defined: 100 V - 1 kV in 10 V steps, 1 kV - 5 kV in 25 V steps |
| Accuracy (23°C) | ±5% to 1 TΩ, ±20% to 10 TΩ |
| Output Voltage Accuracy | (0°C - 30°C) +4% - 0% ±10 V of nominal test voltage at 1 GΩ load |
| Voltmeter Range | 30 - 660 V AC or DC, 50/60 Hz |
| Voltmeter Accuracy | ±3% ±3 V |
| Frequency Range | 45 Hz - 65 Hz |
| Short - Circuit Current | 3 mA nominal maximum |
| Insulation Alarm | 100 kΩ - 1 GΩ |
| Current Measurement Range | 0.01 nA - 6 mA |
| Current Measurement Accuracy | ±5% ±0.2 nA at all voltages |
| Capacitance Range (above 500 V) | 10 nF - 25 μF (dependent on measurement voltage) |
| Capacitance Accuracy | ±10% ±5 nF |
| Timer Range | 0 - 99 min |
| Memory Capacity | 5.5 hours of continuous logging (5 - second intervals); 33 logged PI tests; 350 logged IR tests |
| Interface | USB |
| Real - Time Output | 1 reading/second (voltage, current and resistance) |
| Safety Rating | CAT IV 600 V |
| Protection Class | IP65 (sealed cover); IP40 (cover open) |
| Operating Temperature | -20°C - +50°C |
| Storage Temperature | -25°C - +65°C |
| Power Supply | 85 V - 265 V eff, 50/60 Hz, 60 VA; rechargeable lithium - ion battery |
| Dimensions (L × W × H) | 315 mm × 285 mm × 181 mm |
| Weight | 4.5 kg |
