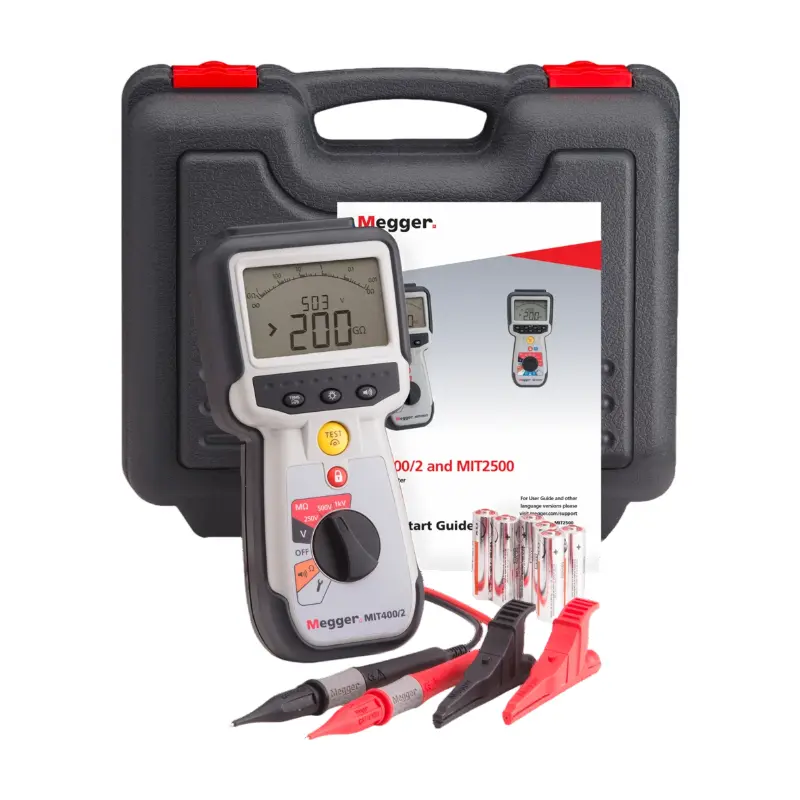

Wholesale Megger Insulation Resistance Tester MIT400/2 series MIT430/2 Manufacturers, Product

1 / 2

Wholesale Megger Insulation Resistance Tester MIT400/2 series MIT430/2 Manufacturers, Product

The MIT400/2 Series CAT IV insulation and continuity testers are designed for a wide range of applications, including electrical installation, cable testing, motor testing, automotive, ESD, switchboard manufacturing, avionics, and maintenance.

The MIT400/2 Series enhances insulation testing capabilities with feedback-controlled test voltage, limiting overvoltage to 2% instead of the industry standard 10% to 20%. Additionally, a variable range has been added, allowing for any intermediate voltage between 50 V and 1000 V in 10 V steps to meet application-specific test voltage requirements not listed in the standard range.

Send Inquiry

Product Description

Overview

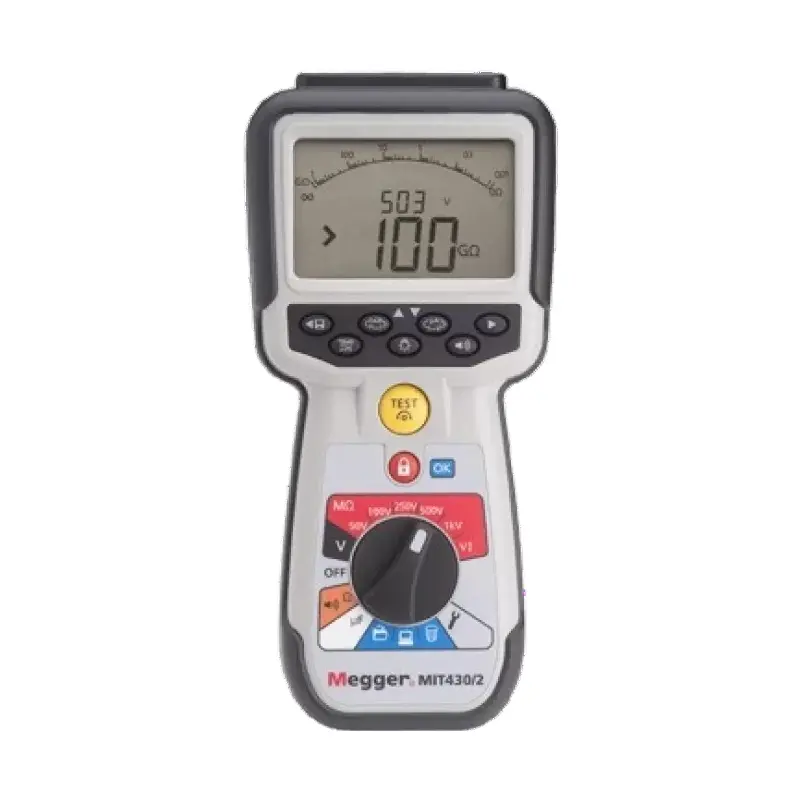

The Megger Insulation Resistance Tester MIT430/2 is a versatile and high-performance testing instrument in the MIT400/2 series, suitable for a wide range of electrical testing applications.

Diverse Test Functions

Insulation Testing: Offers insulation test voltages of 50V, 100V, 250V, 500V, and 1000V. It features a variable output range adjustable in 10V steps from 10V to 1000V, with an insulation resistance measuring range up to 200GΩ.
Continuity Testing: The range is 0.01Ω - 999kΩ (0 - 1000kΩ on analogue scale). Test currents can be set to 200mA or 20mA. Includes lead zero compensation and auto-hold functions.
Voltage & Frequency: Measures AC voltage from 10mV to 600V trms (40Hz to 400Hz) and DC voltage from 0 to 600V. Frequency measurement range is 45Hz - 450Hz.

Special & Diagnostic Functions

PI & DAR: Polarization Index (PI) and Dielectric Absorption Ratio (DAR) functions evaluate insulation condition and detect defects.
Limit Alarms: Set pass/fail limit alarms to quickly judge whether test results meet requirements.
Data Management: Equipped with Bluetooth to download test results to a PC. Features an onboard storage capacity of more than 1000 test results.

Good Safety Performance

Safety Rating: Meets CAT IV 600V / CAT III 1000V standards, compliant with EN 61010-1 requirements to ensure operator safety.
Protection Class: IP54 rating provides strong dust-proof and water-proof performance for harsh environmental conditions.

Operation & Display

Dual Display: Combines an analog arc with a digital readout. Main results show on the larger digital screen, repeated on the analog arc, while auxiliary info shows on the secondary screen.
Ergonomic Case: The rubber-overmolded case provides drop protection and excellent grip for easy field handling.

Technical Specifications

Parameter	Specification
Insulation Test Voltage	50V, 100V, 250V, 500V, 1000V
Insulation Resistance Measuring Range	2GΩ - 200GΩ
Continuity Test Range	0.01Ω - 999kΩ (0 - 1000kΩ on analogue scale)
Continuity Test Accuracy	±3% ± 2 digits (0.01Ω - 10mΩ)
Lead Resistance	Null up to 9.00Ω
AC Voltage Measurement Range	10mV to 600V trms sinusoidal (40Hz to 400Hz)
DC Voltage Measurement Range	0 - 600V
Frequency Measurement Range	45Hz - 450Hz
Display Type	Analogue arc with pointer and digital
Resolution	0.1kΩ
Polarisation Index, Dielectric Absorption Ratio	Yes
Pass/Fail on Limit Alarms	Yes
Data Download	Bluetooth
Storage Capacity	>1000 test results
Power Supply	6 x 1.5V cells type IEC LR6 (AA)
Protection Class	IP54
Safety Rating	CAT IV 600V, meets EN 61010 - 1 requirements
Dimensions	228mm x 108mm x 63mm
Weight	600g

Series Features

Models	Megger Insulation Resistance Tester MIT400/2 series MIT430/2 Features
Feature Highlights	Insulation testing up to 1000 V and 200 GΩ range Stabilised insulation test voltage Single range, faster continuity testing from 0.01 Ω to 1 MΩ 600 V T RMS AC and DC voltage measurement Live circuit detection and protection User variable insulation test voltage from 100V to 1000V (depending on model) Test result storage and Bluetooth downloading (depending on model) Rechargeable options for mains and car charging (depending on model) CAT IV 600 V and IP54 protection

Models

Megger Insulation Resistance Tester MIT400/2 series MIT430/2 Features

Feature Highlights

Insulation testing up to 1000 V and 200 GΩ range
Stabilised insulation test voltage
Single range, faster continuity testing from 0.01 Ω to 1 MΩ
600 V T RMS AC and DC voltage measurement
Live circuit detection and protection
User variable insulation test voltage from 100V to 1000V (depending on model)
Test result storage and Bluetooth downloading (depending on model)
Rechargeable options for mains and car charging (depending on model)
CAT IV 600 V and IP54 protection

Physical & Delivery Information

Dimensions

108mm x 228mm x 63mm

Weight

600g

Battery Options

5 x AA alkaline or rechargeable Ni-MH batteries

* Delivery information typically includes details on delivery times, shipping methods, and packaging, which may vary depending on the seller and the location of purchase.

Manuals & Resources

Megger Insulation Resistance Tester MIT4002 series datasheet.pdf

Download Datasheet

Frequently Asked Questions

What insulation test voltages are supported by the MIT430/2?

The tester supports insulation test voltages of 50V, 100V, 250V, 500V, and 1000V. It also has a variable output range that can be adjusted in 10V steps from 10V to 1000V.

Can the test results be downloaded to a PC?

Yes, the device is equipped with Bluetooth functionality, allowing you to download and manage over 1000 stored test results directly onto a PC for further analysis.

What safety standard ratings does the instrument comply with?

The MIT430/2 meets the safety rating standards of CAT IV 600V and CAT III 1000V, ensuring full compliance with EN 61010-1 regulations.

Does the device support diagnostic tests like PI and DAR?

Yes, Polarization Index (PI) and Dielectric Absorption Ratio (DAR) functions are built-in features, allowing you to easily evaluate insulation conditions and locate defects.

What battery options and physical dimension parameters apply to the MIT430/2?

The device operates on 5 or 6 AA alkaline or rechargeable Ni-MH batteries. Physically, it measures 108mm x 228mm x 63mm and weighs approximately 600 grams.
