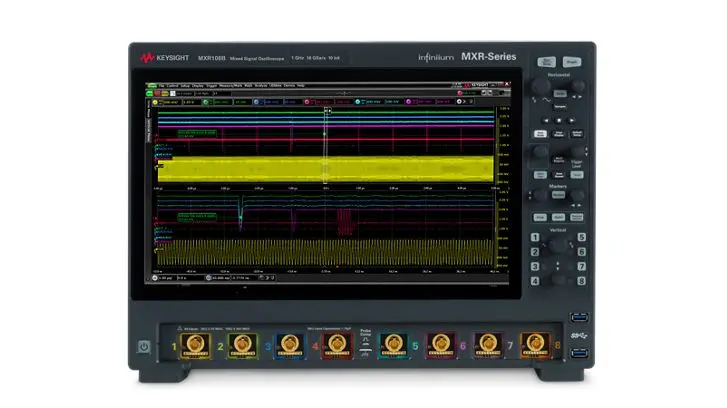

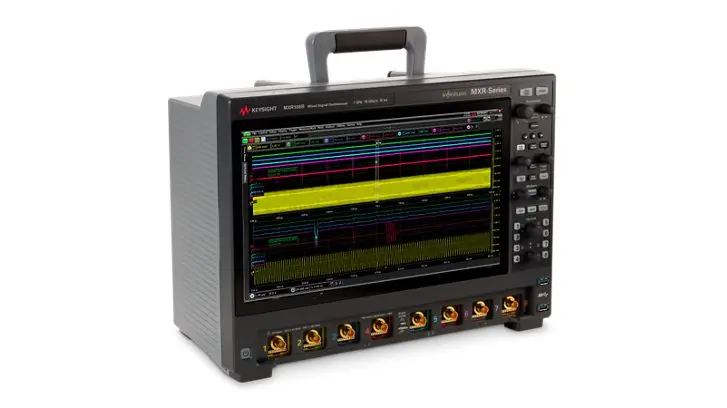

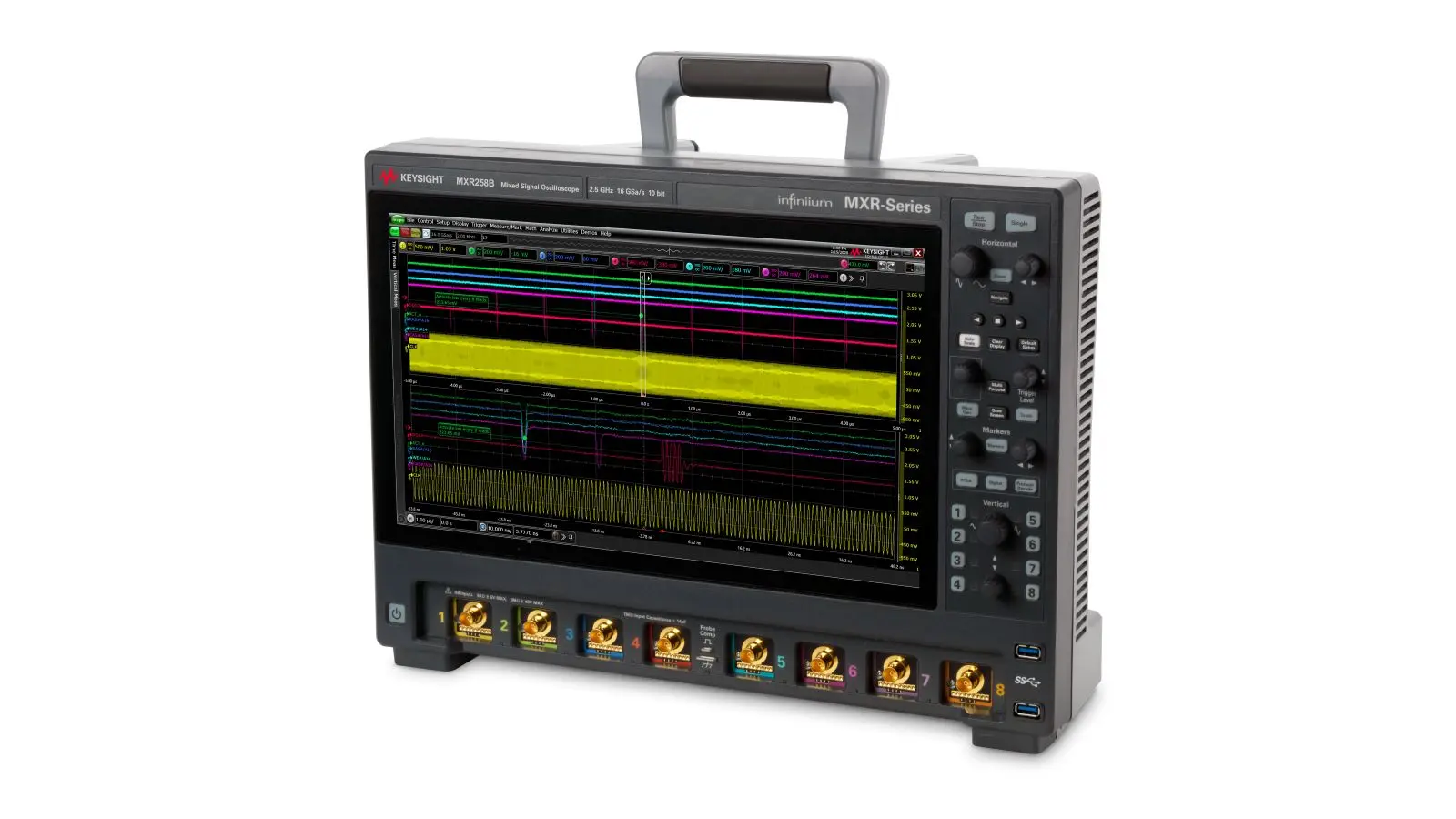

Wholesale Keysight Infiniium MXR108B B-Series Oscilloscope: 8 Channels, 1 GHz Manufacturer, Supplier

Hardware-accelerated charting, the ability to combine up to eight instruments into one, 1 GHz on all 8 channels, and complete upgradeability to 6 GHz.

Product Description

Overview
Specifications
Models
Delivery Information
Manuals + resources
Minimize the risk of launching products susceptible to bugs and failures with an oscilloscope that displays the truest, granular details. Built from the same high-performance standard set by the MXR A, the MXR B Series boasts newer, hardware-accelerated technology that speeds up test time. In addition to faster hardware, the MXR B-Series includes standard features like state-of-the-art InfiniiScan Event Identification Software, a built-in, 50 MHz arbitrary waveform generator, and a 50 MHz frequency response analyzer. The automated analysis tools, extra-low, front-end noise, and uncompromised performance of the MXR B-Series enable you to test faster, shorten time to market, and design without compromise using an oscilloscope that delivers dependable results.
  • Up to 1 GHz bandwidth on all 8 channels all the time
  • Up to 70% faster jitter analysis (compared to MXR A)
  • 65% faster power integrity analysis (compared to MXR A)
  • 45% faster FFTs (compared to MXR A)
  • 15% faster USB 2.0 compliance testing (compared to MXR A)
  • New standard features InfiniiScan and Wave Gen
  • Maximum memory is a flexible 1.6 G points
  • Capabilities are extended with 8-in-1 instrument integration
  • Upgradeable in every possible way — including bandwidth and channel upgrades
Post - purchase upgrades Model
Add analog bandwidth, up to 6 GHz MXR2BW
Add analog channels, 4 to 8 MXR8CH
Add memory, 400 Mpts/ch or 1.6 Gpts/ch flexible memory MXR2MEM
Add RTSA and DDC MXR2RTSA
Add RF Frequency Extension, 6 GHz MXR2FRE
Add MSO, 16 channels MXR2MSO
Category Sub - item Details
Weight Frame 4 - channel models: 13.75 kg (30.3 lbs)
Shipping 8 - channel models: 14.50 kg (32.0 lbs)
Weight (Cont.) Shipping (Cont.) 4 - channel models: 20.95 kg (46.2 lbs)
Shipping (Cont.) 8 - channel models: 21.90 kg (48.3 lbs)
Dimensions Height 327 mm (12.9 in) with feet retracted
Width 443 mm (17.5 in)
Depth 223 mm (8.8 in) including knobs and rear feet

Frequently Asked Questions

What are the key upgrade options for the MXR B-Series oscilloscope?
The MXR B-Series offers versatile post-purchase upgrades including analog bandwidth up to 6 GHz, expansion from 4 to 8 analog channels, memory upgrades up to 1.6 Gpts/ch, MSO upgrades with 16 channels, and additions of RTSA, DDC, and RF Frequency Extensions.
How does the MXR B-Series improve analysis speed compared to the previous MXR A series?
The MXR B-Series features newer hardware-accelerated technology delivering up to 70% faster jitter analysis, 65% faster power integrity analysis, and 45% faster FFTs compared to the MXR A series.
What standard software and tools are integrated into the MXR B-Series?
Standard integrated components include state-of-the-art InfiniiScan Event Identification Software, a built-in 50 MHz arbitrary waveform generator, and a 50 MHz frequency response analyzer.
What are the physical dimensions and weight of the oscilloscope models?
The unit has a width of 443 mm, height of 327 mm, and depth of 223 mm. The frame weight is 13.75 kg for 4-channel models and 14.50 kg for 8-channel models.
Are the analog channels configurable or limited at high bandwidths?
The MXR B-Series supports up to 1 GHz bandwidth on all 8 channels simultaneously and consistently.
