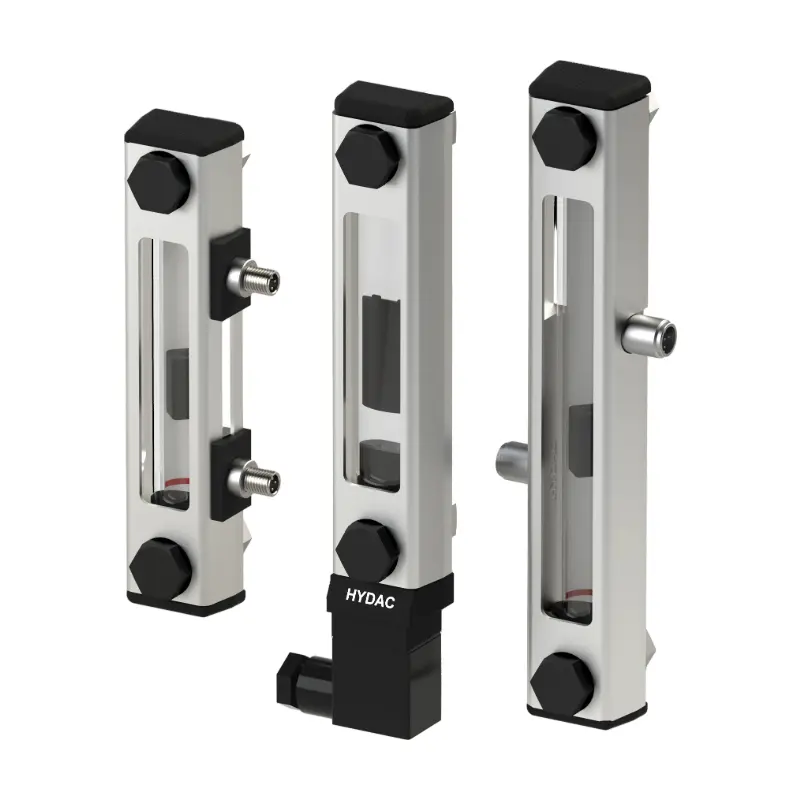

The HYDAC FSK-0127-2.4C-00000/O-/M12.000-LED is an FSK series capacitive level sensor/gauge, specifically designed for hydraulic system oil level monitoring. It combines level detection and status indication functions. The following is a detailed overview based on official specifications:
Level detection is achieved by detecting the difference in dielectric constant between oil and air. Non-contact measurement avoids probe wear and is compatible with most industrial hydraulic oils, lubricating oils, and other insulating media.
High measurement accuracy and good repeatability, minimally affected by medium viscosity and temperature fluctuations (refer to FSK series general standards, temperature compensation range -20℃~+80℃), ensuring reliable level data.
Built-in LED indicator allows for quick assessment of equipment operating status. A 4-20mA analog signal output supports remote level monitoring, catering to both on-site operation and system integration needs.
Small in size, suitable for confined installation spaces, with an enclosure protection rating meeting industrial standards (estimated IP67), capable of withstanding harsh environments such as industrial dust and humidity.
| Product Features | |
|---|---|
| Other features | LED |
| Switch points | 1SP |
| Material, connector, FSK | PA |
| Connector design FSK | Square (Z4) |
| Nominal pressure [MPa] | 0.05 |
| Nominal pressure [bar] | 0.5 |
| Surface protection | Steel, zinc-plated (scr. + nut) |
| Mounting nut | With (fas. nut) |
| Contrast pane | Without |
| Fastening screw FSK | M12 |
| Additional function (+ banjo bolt) | Without |
| Material, frame, FSK | Aluminium |
| Pipe material | PA |
| Pipe geometry | Oval |
| Switching function FSK | Closing contact (NO) |
| Plug connector design FSK | Z4 (3+E) |
| Gasket/O-ring | With (seal ring) |
| Material, O-ring/sealing disc | FPM |
| Nom. size FSA/FSK | 127 m |
| Model, FSA / FSK | FSK |
| Approval/test certificate | No approval |
| Nominal size FSA/FSK [mm] | 127 |
| Model Segment | Corresponding Meaning |
|---|---|
| FSK | Product Series: HYDAC FSK series capacitive fluid level sensors/gauges, based on capacitive sensing principle for non-contact level detection |
| 127 | Probe Length: 127 mm (effective sensing length of the probe, determining the detectable liquid level range) |
| 2.4C | Electrical Configuration: 2-wire DC 4-20mA analog output (common industrial signal, easy to connect with PLC/DCS systems for remote monitoring) |
| 00000/O- | Standard Functional Configuration: Basic level detection function without additional customized features (e.g., temperature compensation, special medium adaptation) |
| M12.000 | Electrical Connector: M12x1 4-pin industrial connector, standardized interface for stable connection and easy on-site installation/maintenance |
| LED | Status Indicator: Equipped with LED indicator light, displaying working status (e.g., normal detection, low level alarm) for intuitive on-site observation |
