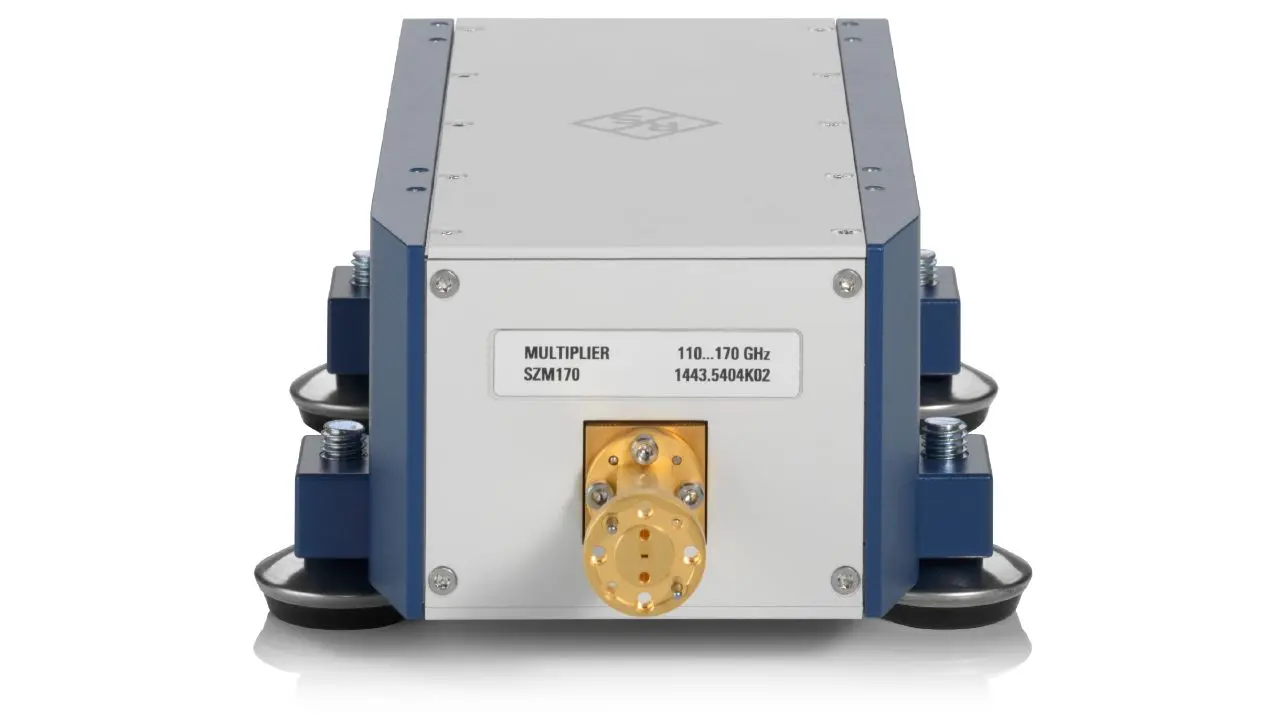

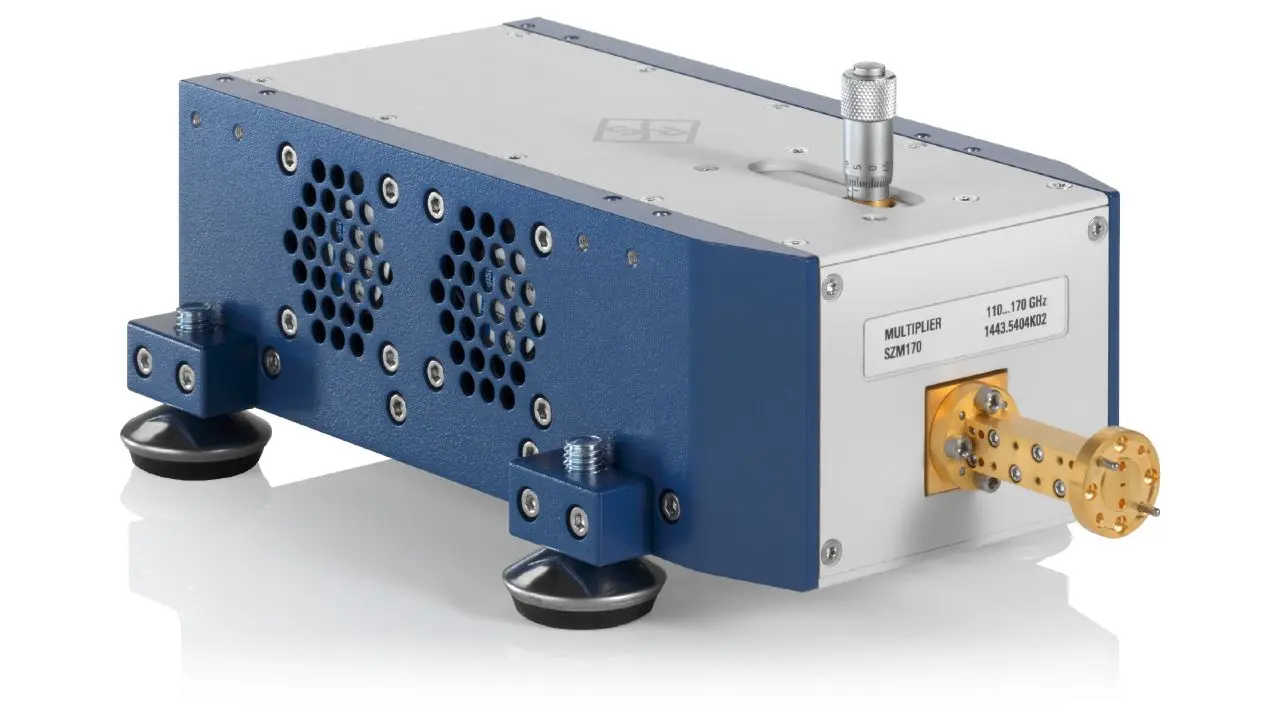

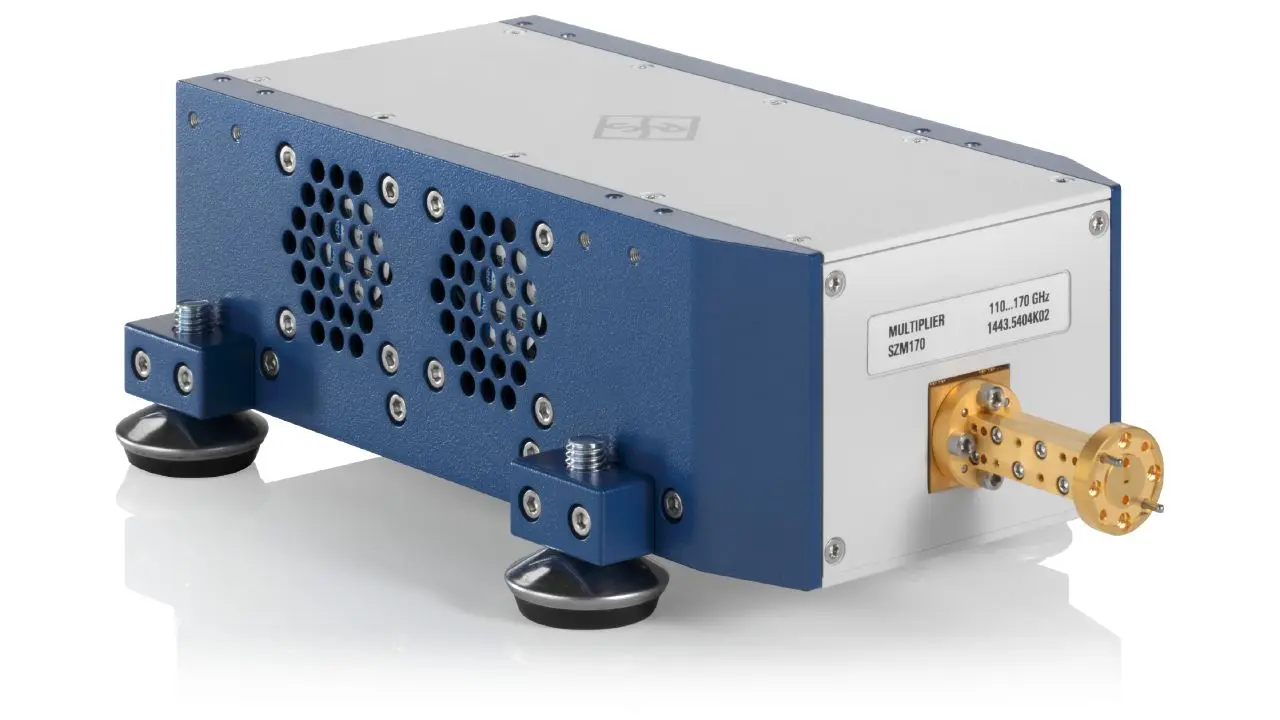

In the frequency range of 50 GHz to 170 GHz, the SZM series of frequency multipliers offers exact output levels along with ease of handling. They can be employed in a variety of fields, such as astronomy with advanced telescopes, the automotive industry with distance radars, and radar interferometry for surface analysis.
Models SZM75 (from 50 GHz to 75 GHz), SZM90 (from 60 GHz to 90 GHz), SZM110 (from 75 GHz to 110 GHz), SZM140 (from 90 GHz to 140 GHz), and SZM170 (from 110 GHz to 170 GHz) make up the frequency multiplier family. High output power, an attenuator, or an isolator can be placed as extras, depending on the base unit chosen. All three options are placed into the same housing as the frequency multiplier to make handling easier.
The SMAB-K554 option needs to be put on the SMA100B signal generator in order to allow control of the SZM via USB. Users can immediately enter the target level and desired frequency at the SZM output on the SMA100B GUI because this combination functions as a single unit.
| 📊 General data | ||
| DC power adapter | — | — |
| AC input voltage range | — | 100 V to 240 V (± 10 %) |
| AC supply frequency | — | 50 Hz to 60 Hz (- 6 %/+ 5 %) |
| Connector type | — | DC barrel (m) |
| Power consumption | SZM75 | 10 W |
| SZM90 | 10 W | |
| SZM110 | 10 W | |
| SZM140 | 6 W | |
| SZM170 | 12 W | |
| 🔌 Other adapters | ||

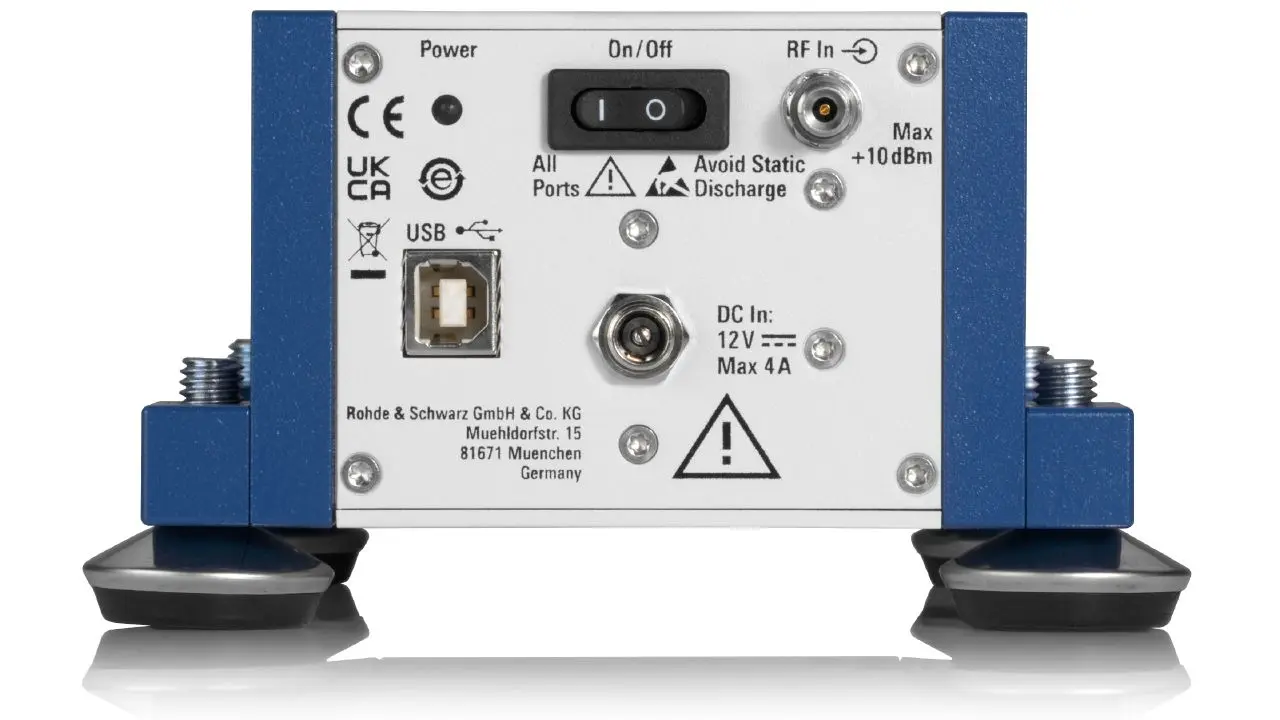

| USB | — | universal serial bus (USB), type B |
| ⚡ EMC (Electromagnetic compatibility) | ||
| Electromagnetic compatibility | EU: in line with EMC Directive 2014/30/EC UK: in line with Electromagnetic Compatibility Regulations 2016 |
Applied harmonized standards: EN 61326-1 (industrial environment) EN 55011 (class 1) |
| 🛡️ Mechanical resistance | ||
| Vibration (sinusoidal) | — | 5 Hz to 55 Hz, 0.15 mm amplitude Const., 55 Hz to 150 Hz, 0.5 g const., in line with EN 60068-2-6 |
| Vibration (random) | — | 8 Hz to 500 Hz, acceleration: 1.2 g RMS, in line with EN 60068-2-64 |
| Shock | — | 40g shock spectrum, in line with MIL-STD-810, method 516 procedure I |
| Restriction of hazardous substances (RoHS) | EU: in line with RoHS Directive 2011/65/EC UK: in line with Electrical and Electronic Equipment Regulations 2012 |
Applied harmonized standard: EN IEC 63000 |
| 🌡️ Environmental conditions | ||
| Temperature range | Specified temperature range | +18°C to +28°C |
| With SZM-B75E/-B90E/-B110E | +23°C to +28°C | |
| Operating temperature range | +5°C to +40°C | |
| Storage temperature range | -40°C to +70°C | |
| Operation Altitude | SZM | 3000 m above sea level |
| Power supply | 2000 m above sea level | |
| 📐 Dimensions and weight | ||
| Chassis dimensions (W x H x D) | without feet and feet-mount, without TPA | 90 mm x 60 mm x 180 mm (3.54 in x 2.36 in x 7.09 in) |
| Full dimensions (W x H x D) | with feet and feet-mount, with waveguide | 130 mm x 73 mm x 195 mm (5.12 in x 2.87 in x 7.68 in) |
| Number of feet | — | 4 |
| Feet height | user-adjustable | 12.1 mm to 18.1 mm (0.48 in to 0.71 in) |
| Weight | — | 2 kg (5 lb) |
| Shipping weight | — | 5 kg (11 lb) |
| Model | Frequency Range |
|---|---|
| SZM75 Frequency multiplier | 50 GHz to 75 GHz |
| SZM90 Frequency multiplier | 60 GHz to 90 GHz |
| SZM110 Frequency multiplier | 75 GHz to 110 GHz |
| SZM140 Frequency multiplier | 90 GHz to 140 GHz |
| SZM170 Frequency multiplier | 110 GHz to 170 GHz |
| Description | Conditions | Dimensions/Quantity/Weight |
|---|---|---|
| Chassis dimensions (W × H × D) | without feet and feet-mount, without TPA | 90 mm × 60 mm × 180 mm (3.54 in × 2.36 in × 7.09 in) |
| Full dimensions (W × H × D) | with feet and feet-mount, with waveguide | 130 mm × 73 mm × 195 mm (5.12 in × 2.87 in × 7.68 in) |
| Number of feet | - | 4 |
| Feet | - | user-adjustable, 12.1 mm to 18.1 mm (0.48 in to 0.71 in) |
| Weight | - | 2 kg (5 lb) |
| Shipping weight | - | 5 kg (11 lb) |
