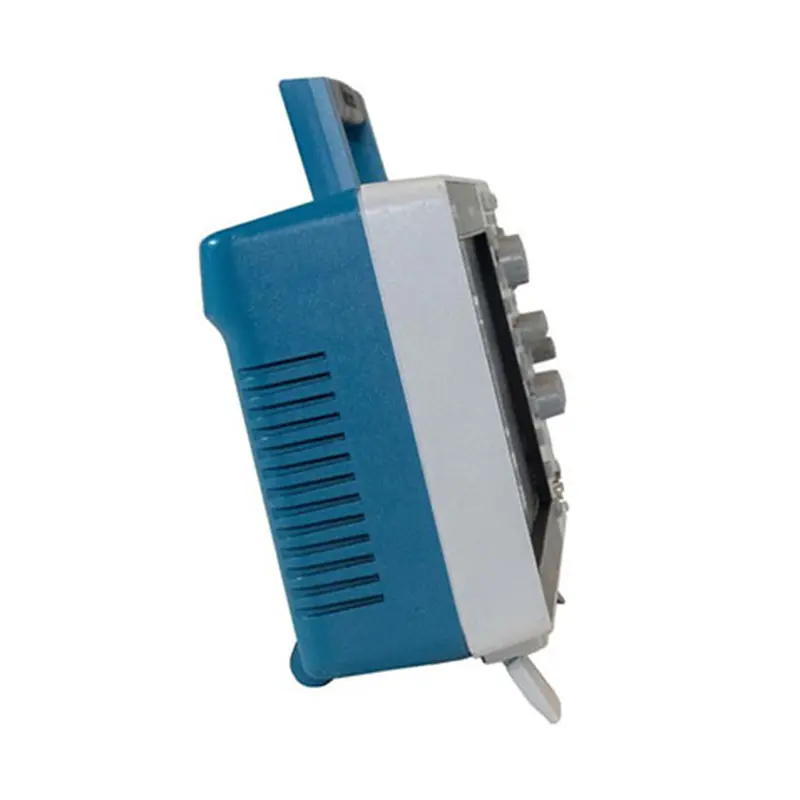

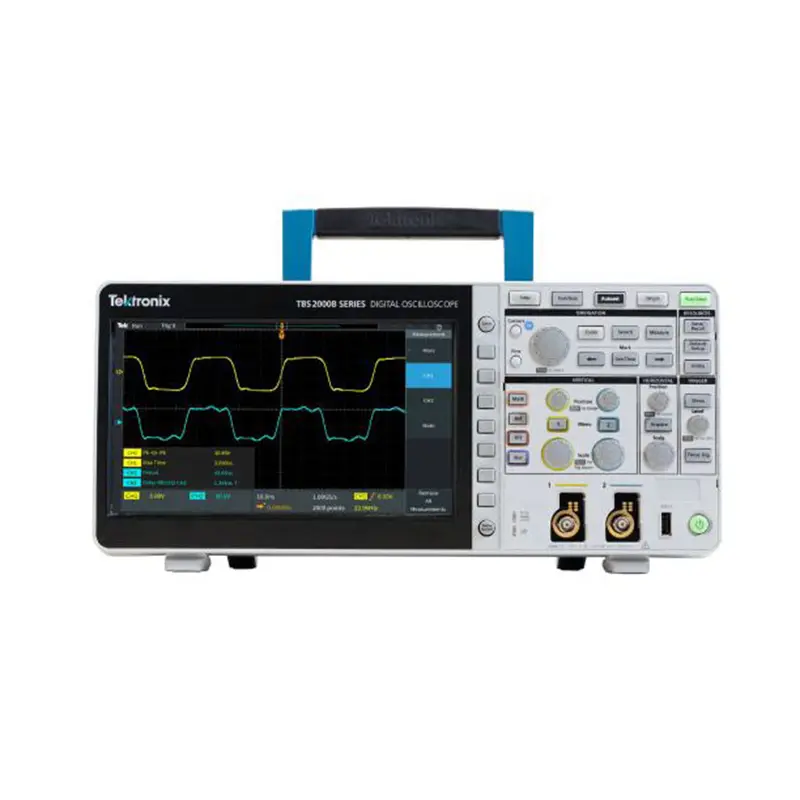

Best Tektronix TBS2000B Digital Storage Oscilloscope TBS2072B TBS2074B TBS2102B TBS2104B TBS2202B TBS2204B Suppliers, Exporter
The new TBS2000B Digital Storage Oscilloscope excels at examining and measuring signals, two of an oscilloscope's most crucial tasks.
See more thanks to its larger 9-inch screen, which has 15 horizontal divisions for longer screen duration and a 5M record length for long-term window capture. Use the powerful 32 automated measures and convenient cursors to measure more.
Wi-fi connectivity and a 100-BaseT Ethernet port allow for more sharing.
The performance you want is provided by this reasonably priced scope.
The TBS2000B Series is made to be simple to use and facilitate rapid hands-on learning. You can assess signals more quickly thanks to dedicated controls that provide you instant access to crucial settings. You can view more of your signal with the TBS2000B because it has 10 vertical divisions and 15 horizontal divisions. Additionally, there is additional space on the huge display for menu information and measurement results.
You can swiftly pan through the recording and zoom in to view signal details using the Zoom tool. The new on-screen cursors are easy to read and comprehend since they superimpose the cursor dimensions on the screen.
Various types of triggering and acquisition
The purpose of the trigger system is to debug the mixed signal designs of today. In addition to a simple edge trigger, it has runt and pulse width triggering, which are particularly helpful for debugging digital portions of your designs. For searching timeout circumstances or narrow glitches, pulse width triggering is ideal. Runt triggers are made to record impulses with smaller amplitudes than anticipated.
The instrument has multiple modes of acquisition. Sample Mode, the default acquisition mode, is effective for the majority of applications. For hunting spikes, the Peak Detect Mode is helpful, while for repeating signals, the Average Mode can assist cut down on noise.
Key performance specifications
2 and 4 analog channel models
200 MHz, 100 MHz, and 70 MHz bandwidth models up to 2 GS/s sampling rate
5 M record length on all channels
5 year warranty
Key Features
9-inch WVGA color display with 15 horizontal grids shows 50% more signal
TekVPI probe interface supports active, differential, and current probes with automatic scaling and units
New front-end design enables more accurate measurements
32 automated measurements, and FFT function for quick waveform analysis
Search and Mark features for easy identification of events that occur in the acquired waveform
HelpEverywhere provides helpful on-screen tips for new users
Built-in Scope Intro handbook provides operating instructions and oscilloscope fundamentals
The instrument user interface and the front panel overlay is translated into 10 languages
Connectivity
USB 2.0 host port on the front panel for quick and easy data storage

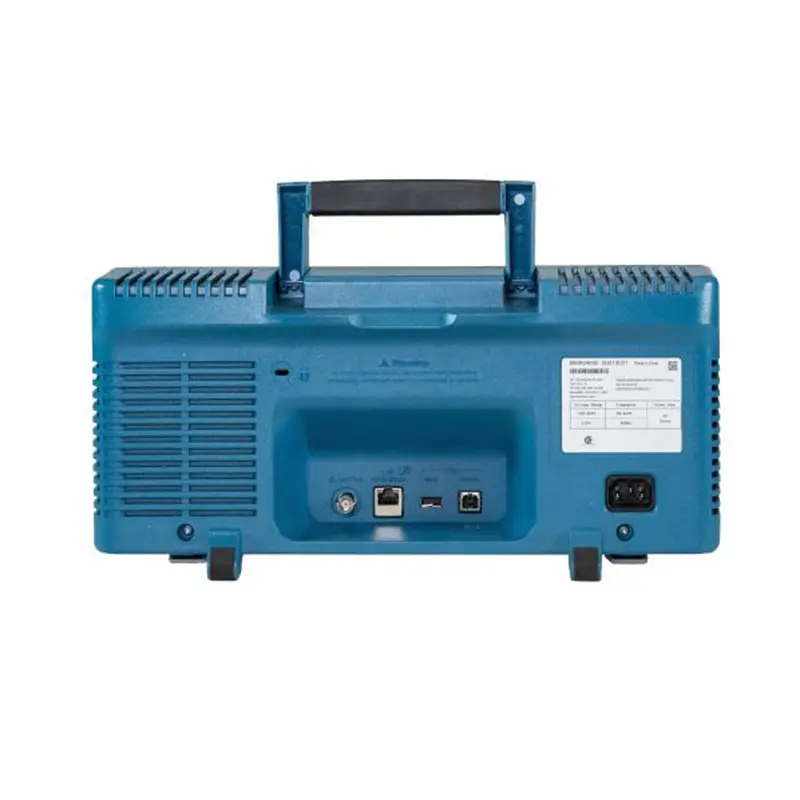

USB 2.0 device port on rear panel for easy connection to a PC
10/100BASE-T Ethernet port for remote control over LAN
Wi-Fi interface provides wireless communications capability support
Models
TBS2072B
TBS2074B
TBS2102B
TBS2104B
TBS2202B
TBS2204B
Analog Channels
2
4
2
4
2
4
Bandwidth
70 MHz
70 MHz
100 MHz
100 MHz
200 MHz
200 MHz
Max Sample Rate
2 GS/s - Half Channel 1 GS/s - All Channels
2 GS/s - Half Channel 1 GS/s - All Channels
2 GS/s - Half Channel 1 GS/s - All Channels
2 GS/s - Half Channel 1 GS/s - All Channels
2 GS/s - Half Channel 1 GS/s - All Channels
2 GS/s - Half Channel 1 GS/s - All Channels
Record length
5 M points
5 M points
5 M points
5 M points
5 M points
5 M points
Dimensions - TBS2xx2B:
Height: 174.9 mm (6.89 in)
Width: 372.4 mm (14.66 in)
Depth: 103.3 mm (4.07 in)
Dimensions - TBS2xx4B:
Height: 201.5 mm (7.93 in)
Width: 412.8 mm (16.25 in)
Depth: 128.1 mm (5.04 in)
Weight:
TBS2xx2B: 2.62 kg (5.8 lbs.), stand-alone instrument; 5.1 kg (11.2 lbs.) when packaged for domestic shipment.
TBS2xx4B: 4.17 kg (9.2 lbs.), stand-alone instrument; 7 kg (15.4 lbs.) when packaged for domestic shipment.
Tektronix TBS2000B Digital Storage Oscilloscope Resources
TEKTRO~4.PDF
TEKTRO~3.PDF
TEKTRO~2.PDF
Tektronix TBS2000B-Datasheet.pdf
Frequently Asked Questions (FAQ)
What bandwidth options are available in the TBS2000B Series?
The TBS2000B Series offers models with bandwidths of 70 MHz, 100 MHz, and 200 MHz, making it highly versatile for various measurement needs.
How many analog channels does these oscilloscopes support?
The series includes models that support either 2 or 4 analog channels depending on the specific model configuration.
What is the maximum sample rate and record length for the TBS2000B series?
It features a maximum sample rate of up to 2 GS/s (Half Channel) and a standard 5 M record length on all available channels.
What connectivity interfaces are supported by these instruments?
The TBS2000B offers multiple connection options: a USB 2.0 host port on the front panel, a USB 2.0 device port on the rear panel, a 10/100BASE-T Ethernet port for remote LAN control, and wireless communications support via a Wi-Fi interface.
What kind of warranty is provided with the TBS2000B Series?
Every instrument in the TBS2000B Digital Storage Oscilloscope Series comes with a comprehensive 5-year warranty.
What probe interface does the oscilloscope feature?
The instrument is equipped with the TekVPI probe interface, which supports active, differential, and current probes with automatic scaling and units.
