| Category | Specification Details |
|---|---|
| General Information | - Product Series: TBS1000C Series |
| - Type: 2 Channel Digital Storage Oscilloscope | |
| - Target Users: Educational institutions, embedded design engineers, maker community | |
| Analog Performance | - Bandwidth: 100 MHz |
| - Number of Analog Channels: 2 | |
| - Real-time Sample Rate: 1 GS/s (on all channels) | |
| - Record Length: 20k points (on all channels) | |
| Display | - Size: 7-inch WVGA color display |
| - Horizontal Divisions: 15 (shows 50% more signal compared to traditional oscilloscopes) | |
| Triggering | - Advanced Trigger Types: Pulse, runt, line triggers |
| - Additional Trigger Feature: Trigger frequency counter | |
| Key Features | - Automated Measurements: 32 built-in measurements |
| - Signal Analysis: Dual window FFT (simultaneous time and frequency domain views) | |
| - Waveform Manipulation: Pan and Zoom capability | |
| - User Interface: Multi-language (supports 10 languages) with front panel overlay | |
| - Design: Small footprint, lightweight, fanless (low noise operation) | |
| Connectivity | - USB 2.0 Host Port: Front panel (for quick data storage) |

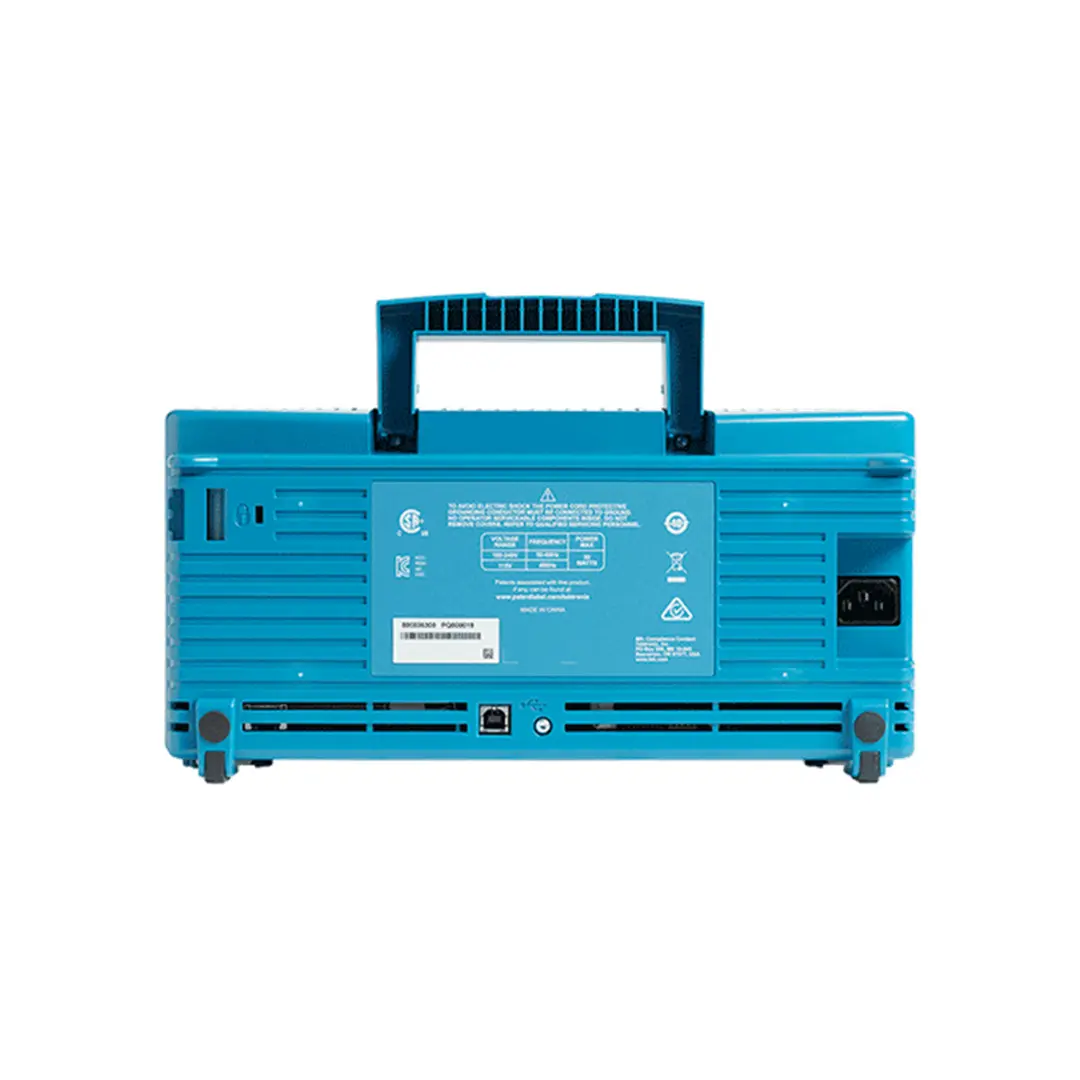

| - USB 2.0 Device Port: Rear panel (for PC connection and remote control) | |
| Education-Focused Features | - Help System: HelpEverywhere® (on-screen tips and hints) |
| - Built-in Resources: Oscilloscope handbook (operating instructions + fundamentals) | |
| - Courseware Support: Integrated lab exercise guidance | |
| - Teaching Control: Disablable Autoset, Cursors, and Automated measurements | |
| - Educator Model: TBS1052C-EDU (50 MHz bandwidth, same features as TBS1052C, lower price) | |
| Physical Specifications | - Dimensions: 124.2 mm × 326.3 mm × 158 mm (L × W × H) |
| - Weight: Approximately 2000 g | |
| - Battery: Not included in standard configuration (battery option available separately) |
| Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels |
|---|---|---|---|---|
| TBS1052C-EDU | 50 MHz | 1 GS/s | 20k points | 2 |
| TBS1052C | 50 MHz | 1 GS/s | 20k points | 2 |
| TBS1072C | 70 MHz | 1 GS/s | 20k points | 2 |
| TBS1102C | 100 MHz | 1 GS/s | 20k points | 2 |
| TBS1202C | 200 MHz | 1 GS/s | 20k points | 2 |

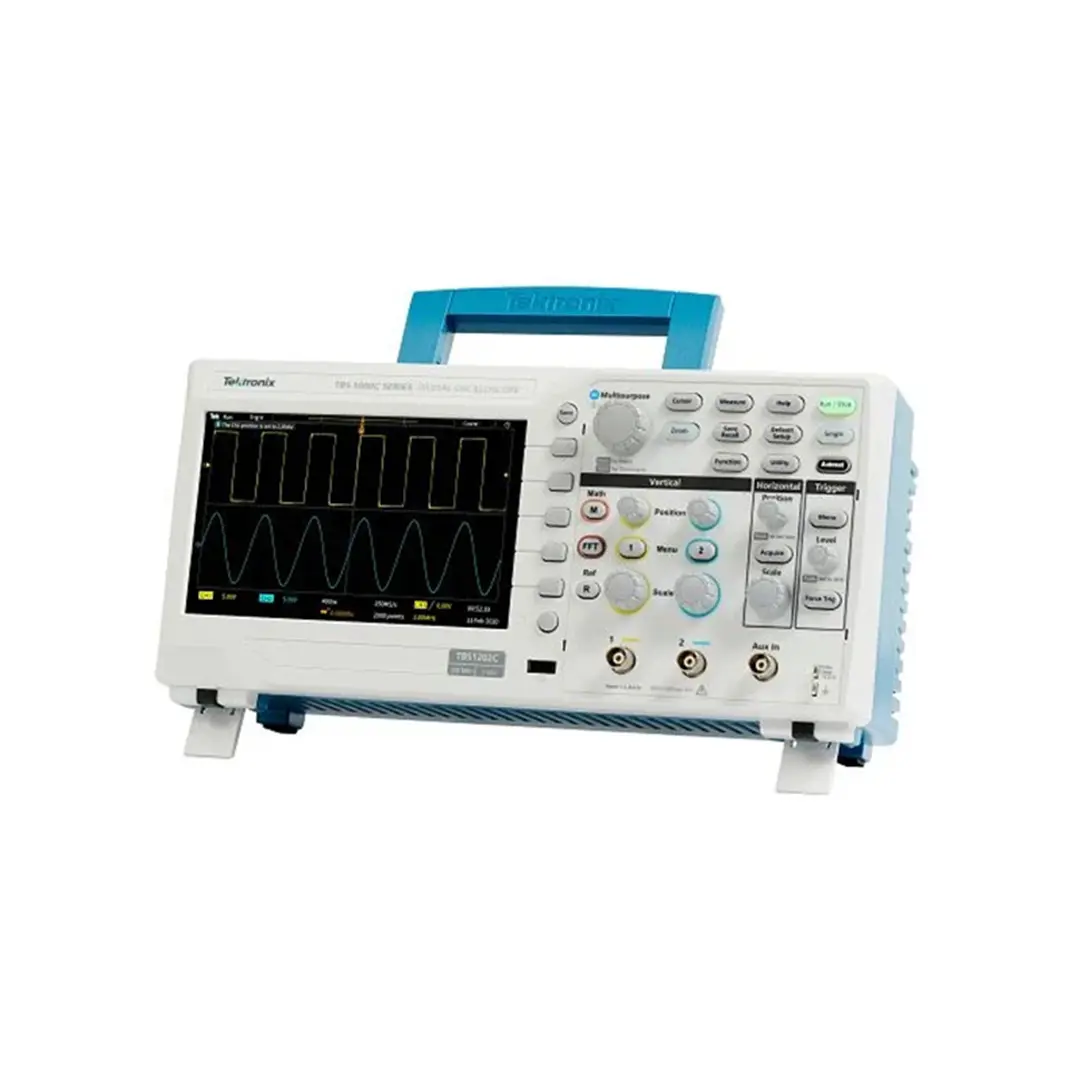

The TBS1102C features a 100 MHz bandwidth, 2 analog channels, a 1 GS/s real-time sampling rate on all channels, and a 20k point record length per channel. It is designed to capture fast signal transitions and subtle fluctuations accurately.

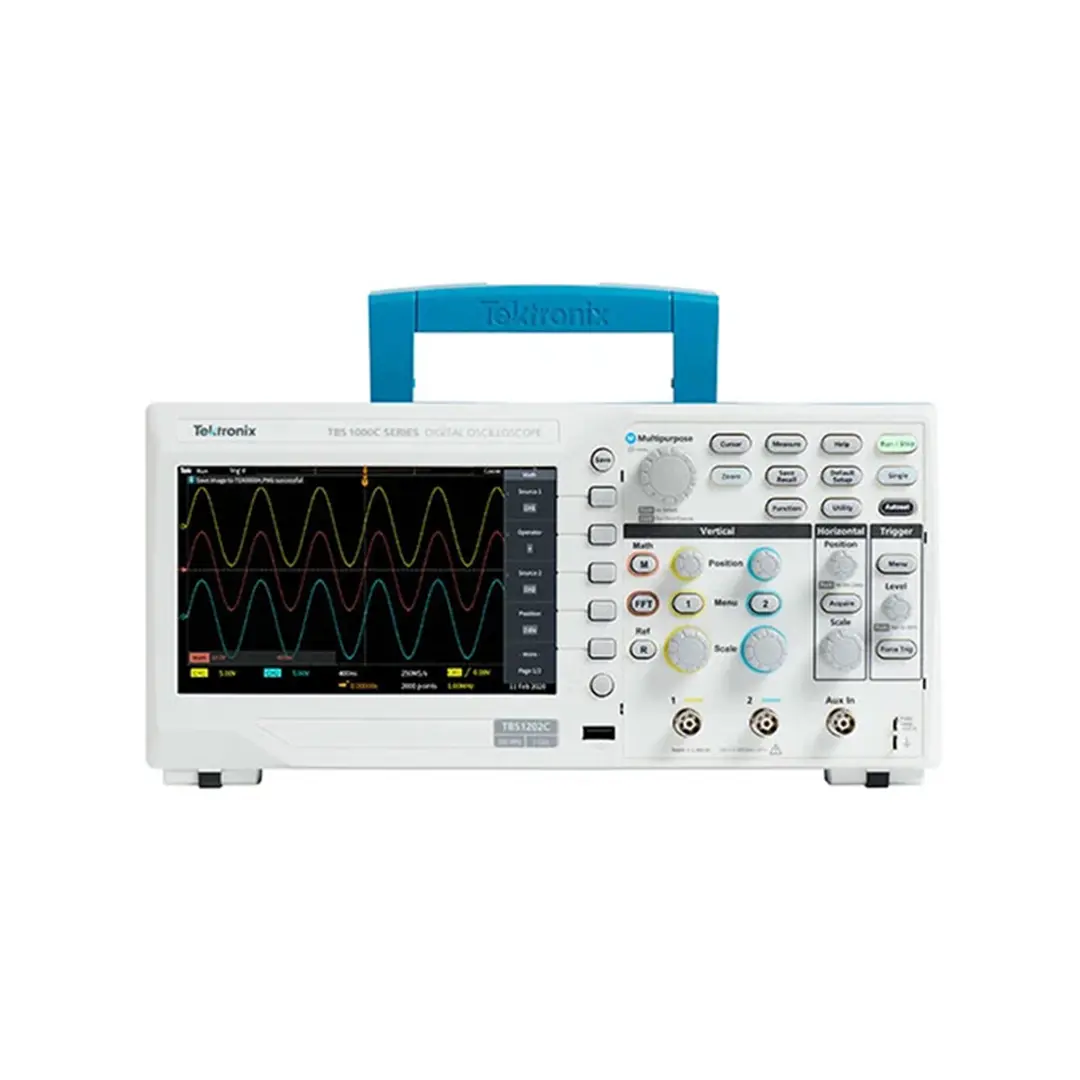

It features a 7-inch WVGA color display with 15 horizontal divisions, which shows 50% more signal content than traditional oscilloscopes, allowing users to analyze waveforms and locate details more easily.
It includes the HelpEverywhere® system which provides on-screen tips, a built-in oscilloscope handbook with theory and operation guidelines, and features allowing educators to disable auto-setup, cursors, and automated measurements to focus on fundamental manual training.
Yes, it features a front-panel USB 2.0 host port for exporting data to USB flash drives, and a rear-panel USB 2.0 device port for connecting to a computer, facilitating remote control and integration into automated testing setups.
The standard configuration of the TBS1102C does not include a battery; however, a battery option is available separately for users requiring wireless or highly portable operations.
The series comprises multiple 2-channel models, including: the TBS1052C-EDU and TBS1052C (50 MHz), the TBS1072C (70 MHz), the TBS1102C (100 MHz), and the TBS1202C (200 MHz). All share the same core real-time sample rate of 1 GS/s and 20k point record length.
