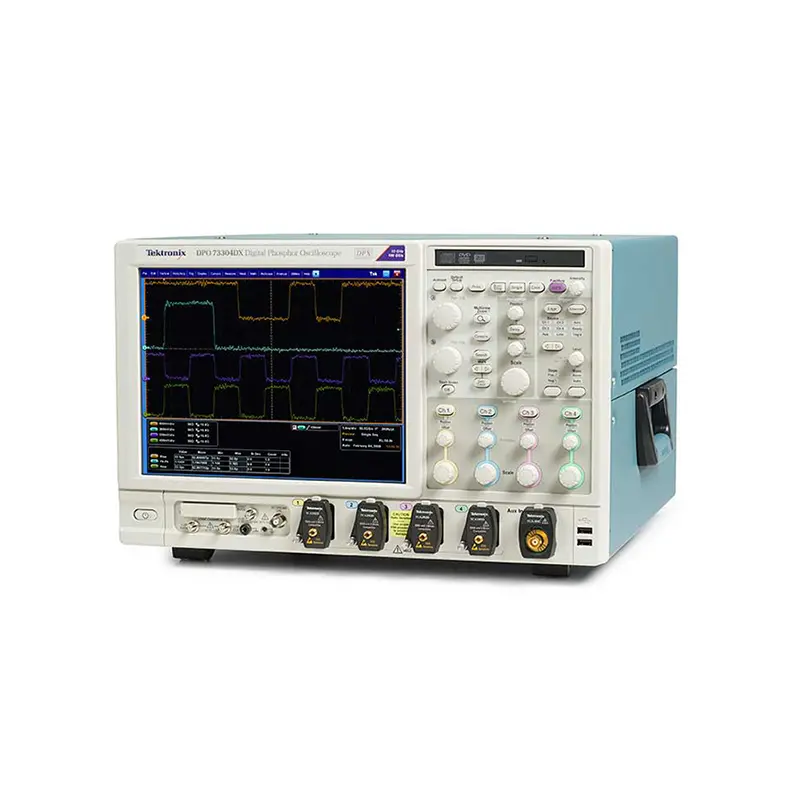

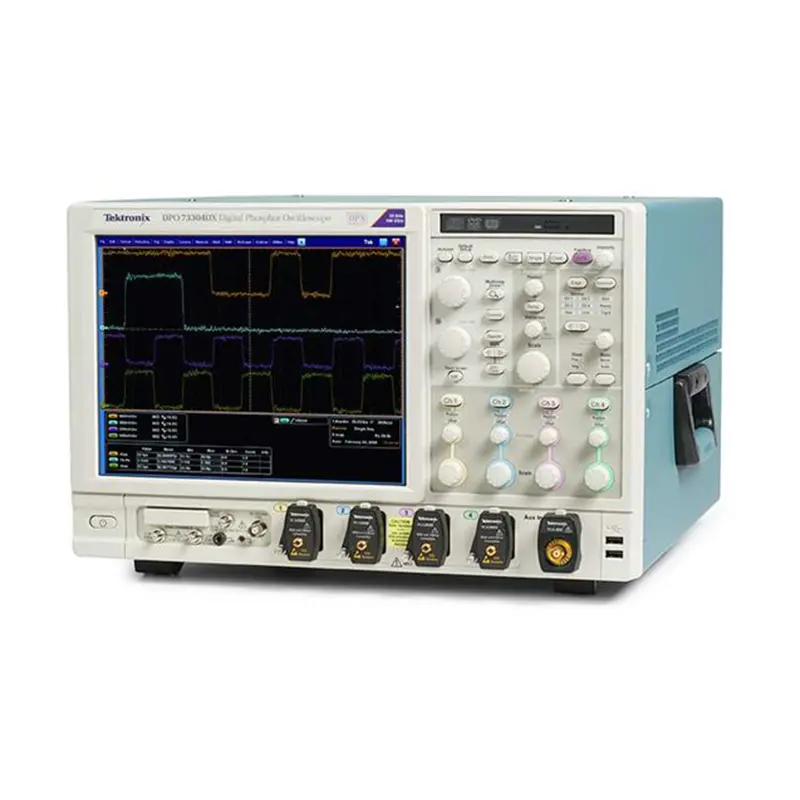

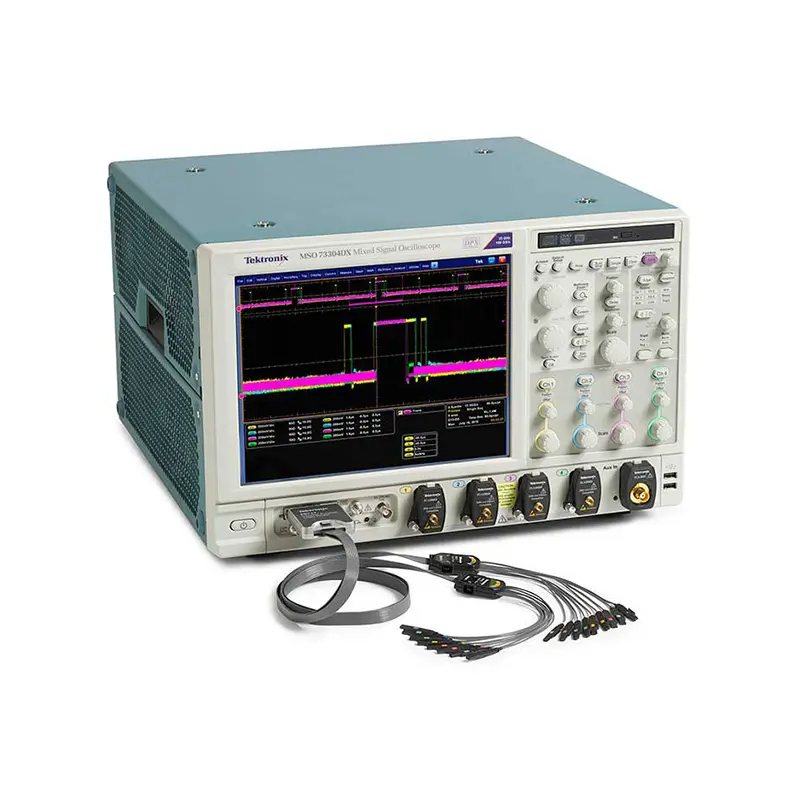

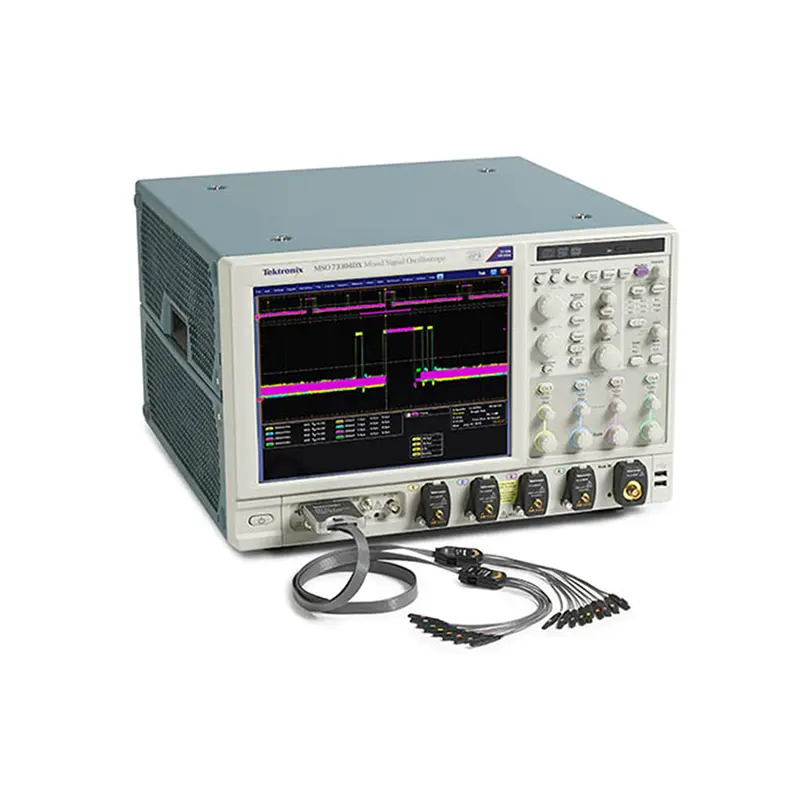

Custom Tektronix MSO DPO70000DX Mixed SignalDigital Phosphor Oscilloscopes Suppliers, Product
Custom Tektronix MSO DPO70000DX Mixed SignalDigital Phosphor Oscilloscopes Suppliers, Product
Custom Tektronix MSO DPO70000DX Mixed SignalDigital Phosphor Oscilloscopes Suppliers, Product
Custom Tektronix MSO DPO70000DX Mixed SignalDigital Phosphor Oscilloscopes Suppliers, Product
1 / 4
Custom Tektronix MSO DPO70000DX Mixed SignalDigital Phosphor Oscilloscopes Suppliers, Product
Custom Tektronix MSO DPO70000DX Mixed SignalDigital Phosphor Oscilloscopes Suppliers, Product
Custom Tektronix MSO DPO70000DX Mixed SignalDigital Phosphor Oscilloscopes Suppliers, Product
Custom Tektronix MSO DPO70000DX Mixed SignalDigital Phosphor Oscilloscopes Suppliers, Product

Custom Tektronix MSO DPO70000DX Mixed SignalDigital Phosphor Oscilloscopes Suppliers, Product

One of the most sophisticated oscilloscopes in its class, the MSO/DPO70000DX allows engineers to observe signals more clearly with less noise, troubleshoot signal anomalies more quickly, and use measurement and analysis features for automated compliance testing and other verifications. The MSO/DPO70000DX is also ideal for data communications, high-speed serial communications, and analog/digital design and debugging. Discover how the MSO/DPO70000DX can be used to identify and examine a variety of mixed-signal anomalies for your upcoming project.

Send Inquiry

Product Description

Superior signal-to-noise performance and acquisition. The outstanding signal-to-noise ratio and superb signal integrity guarantee that your measurement results are reliable.
Four channels matched up to 33 GHz
Imperfections in frequency response are eliminated all the way to the probe tip using bandwidth improvement. Each channel features user-selectable filters that compensate for phase and magnitude to better depict very rapid signals. Furthermore, for applications that require the greatest measurement throughput, only this system enables the user to turn off the bandwidth improvement.
More signal features (transients, flaws, and quick edges) are captured when all channels have a high sample rate operating simultaneously. 50 GS/s on all analog channels and 100 GS/s on two channels. 12.5 GS/s across all logic channels.
High vertical precision and a low jitter noise level give your measurements more leeway.
High resolution and extended-duration waveform capture are made possible by long record length. Standard 62.5 MS per channel. Up to 500 MS on four channels and 1 GS on two channels are optional. For uncompromised analog and digital acquisition, the logic channels' record lengths match the analog record lengths. Managing lengthy recordings and comparing and analyzing various waveform segments are made easier with MultiView Zoom.
You can carry out accurate characterisation measurements thanks to its excellent signal-to-noise ratio and low internal noise floor. Finding the slightest irregularities influencing a DUT's performance during debugging is made possible by a low noise floor and maximal signal quality of the measurement device. A greater dynamic range for RF signals results from a lower noise floor, which expands the range of applications.
Key performance specifications
  • Up to 33 GHz analog bandwidth and rise time as fast as 9 ps. Enables measurement on the latest high-speed serial standards
  • True 33 GHz Real-time Analog Bandwidth on 2 Channels with 33 GHz models
  • Industry-leading sample rate and timing resolution
  • 100 GS/s on 2 Channels (33, 25, 23, 20, 16, and 12.5 GHz models)
  • Four-channel Simultaneous Performance
  • Up to 23 GHz Bandwidth
  • Up to 50 GS/s Real-time Sample Rate
  • Up to 500 Megasample Record Length with MultiView Zoom for quick navigation
  • Fastest Waveform Capture Rate with >300,000 wfms/s maximum per channel
  • 16 Logic Channels with 80 ps Timing Resolution for Debug of digital and analog signals
  • Unique iCapture capability enables viewing analog characteristics of digital channels with single probe connection
  • 6.25 Gb/s Real-time Serial Trigger – Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects
  • Application Support for High-speed Serial Industry Standards, wideband RF, Power supplies, and memory – Enables standard-specific certification, measurement automation, and ease of use
Key features
  • Superior signal integrity and excellent signal-to-noise ratio – observe the truest representation of your waveform
  • Pinpoint triggering – minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
  • Visual Trigger – precisely qualify triggers and find unique events in complex waveforms
  • Search and Mark – provides waveform or serial bus pattern matching and software triggers for signals of interest
  • Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI C-PHY, D-PHY and M-PHY
  • TriMode probing system – perfectly matched signal connectivity, with calibration to probe tip
  • High-performance 17-channel logic probes with bandwidths up to 2.5 GHz for connections to today's fast digital signals
Connectivity
  • USB 2.0 host port on both the front panel and rear panel for quick and easy data storage, printing, and connecting a USB keyboard
  • Integrated 10/100 Ethernet port for network connection and Video Out port to export the oscilloscope display to a monitor or projector
Model Specification DPO70804DX / MSO70804DX DPO71254DX / MSO71254DX DPO71604DX / MSO71604DX DPO72004DX / MSO72004DX DPO72304DX / MSO72304DX DPO72504DX / MSO72504DX DPO73304DX / MSO73304DX
Analog channels 4 4 4 4 4 4 4
Digital channels (MSO models only) 16 16 16 16 16 16 16
Analog bandwidth (user-selectable DSP enhance) (-3 dB) 8 GHz 12.5 GHz 16 GHz 20 GHz 23 GHz (2 Ch) 25 GHz (2 Ch) 33 GHz (2 Ch)
Bandwidth configurations - - - - 23 GHz (4 Ch) 23 GHz (4 Ch) 23 GHz (4 Ch)
Hardware Analog Bandwidth (-3 dB) 8 GHz (typical) 12.5 GHz 16 GHz 20 GHz 23 GHz 25 GHz 33 GHz
Rise time (typical) 10% to 90% 52 ps 32 ps 26 ps 22 ps 17 ps 16 ps 13 ps
Rise time (typical) 20% to 80% 38 ps 23 ps 19 ps 15 ps 13 ps 12 ps 9 ps
Sample rate (1, 2 ch) 100 GS/s 100 GS/s 100 GS/s 100 GS/s 100 GS/s 100 GS/s 100 GS/s
Sample rate (3, 4 ch) 50 GS/s 50 GS/s 50 GS/s 50 GS/s 50 GS/s 50 GS/s 50 GS/s
Sample rate (ET/IT mode) 10 TS/s 10 TS/s 10 TS/s 10 TS/s 10 TS/s 10 TS/s 10 TS/s
Record length (each channel, standard) 62.5 M 62.5 M 62.5 M 62.5 M 62.5 M 62.5 M 62.5 M
Record length (Opt. 10XL) 125 M 125 M 125 M 125 M 125 M 125 M 125 M
Record length (Opt. 20XL) 250 M 250 M 250 M 250 M 250 M 250 M 250 M
Record length (Opt. 50XL) 500M (4 Ch), 1G (2 Ch) 500M (4 Ch), 1G (2 Ch) 500M (4 Ch), 1G (2 Ch) 500M (4 Ch), 1G (2 Ch) 500M (4 Ch), 1G (2 Ch) 500M (4 Ch), 1G (2 Ch) 500M (4 Ch), 1G (2 Ch)
Timing resolution 10 ps 10 ps 10 ps 10 ps 10 ps 10 ps 10 ps
Duration at highest sample rate (standard) 0.63 ms 0.63 ms 0.63 ms 0.63 ms 0.63 ms 0.63 ms 0.63 ms
Duration at highest sample rate (Opt. 50XL) 10 ms 10 ms 10 ms 10 ms 10 ms 10 ms 10 ms
Vertical noise (% of full scale, typical) 0.32% 0.42% 0.47% 0.56% 0.53% 0.67% 0.71%
Time base range (Auto mode) 10 ps/div to 1000 s/div 10 ps/div to 1000 s/div 10 ps/div to 1000 s/div 10 ps/div to 1000 s/div 10 ps/div to 1000 s/div 10 ps/div to 1000 s/div 10 ps/div to 1000 s/div
Timing resolution (ET/IT mode) 100 fs 100 fs 100 fs 100 fs 100 fs 100 fs 100 fs
Delta time measurement accuracy (RMS) 1.17 ps 861 fs 727 fs 658 fs 585 fs 604 fs 529 fs
Dimensions
Dimension Aspect mm in.
Height 298 11.74
Width 451 17.75
Depth 489.97 19.29
Rackmount dimensions
Dimension Aspect mm in.
Height 311 12.25
Width 480.1 18.9
Depth (from rack mounting ear to back of instrument) 546.1 21.5
Weight Configurations
4.17 kg (9.2 lbs.), stand-alone instrument.
Weight Type kg lb.
Net 24 53
Shipping 34 67
Rackmount weight
Weight Type kg lb.
Net 22 59
Kit 2.7 6
MSO DPO70000DX Mixed Signal Digital Phosphor Oscilloscopes Documents
Resource document preview
DOCUMENT_03.PDF
Download
Resource document preview
DOCUMENT_02.PDF
Download
Resource document preview
DOCUMENT_01.PDF
Download
Frequently Asked Questions
What is the maximum analog bandwidth of this oscilloscope series?
The series offers up to 33 GHz real-time analog bandwidth on two channels for high-bandwidth models, with rise times as fast as 9 ps, enabling measurement on the latest high-speed serial standards.
How many digital and analog channels are supported?
All models support 4 analog channels. The MSO Series models additionally feature 16 logic (digital) channels with 80 ps timing resolution for comprehensive analog and digital signal analysis.
What is the maximum sample rate and record length option?
The series provides up to 100 GS/s real-time sample rate on 2 channels. The record length starts at a standard 62.5 MS per channel and can be optionally configured up to 500 MS on four channels and 1 GS on two channels.
How does bandwidth improvement affect measurement accuracy?
Bandwidth improvement helps eliminate frequency response imperfections all the way to the probe tip. Users can select filters that compensate for phase and magnitude to accurately represent very rapid signals, or disable this improvement for maximized measurement throughput.
What connectivity options are built into the instrument?
The instruments feature USB 2.0 host ports on both front and rear panels for storage and keyboard connections, an integrated 10/100 Ethernet port for network connectivity, and a Video Out port to display the screen on external monitors.
What type of automated serial analysis is supported?
Automated serial analysis options are available for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI C-PHY, D-PHY, and M-PHY.
