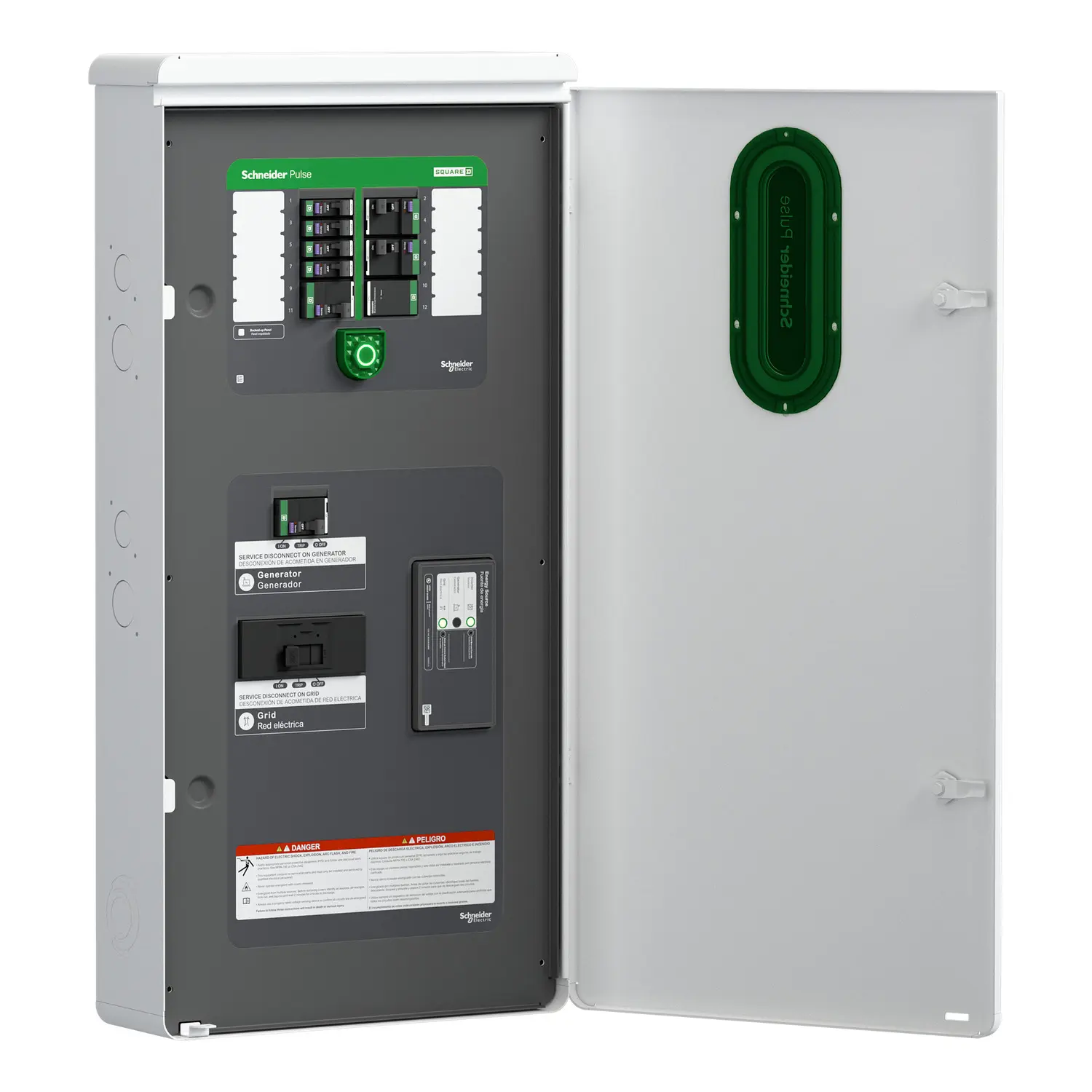

Schneider Electric BC200A1NAWM is a 120/240V, 200A pulse-type backup controller featuring an integrated 12-pole QO breaker panel and equipped with a Microgrid Interconnection Device (MID). This product controls switching to backup power sources. Its integrated 12-pole QO breaker panel reduces the number of wall-mounted devices and accelerates installation. The integrated breaker panel can be flexibly configured for critical backup loads or non-backup loads. It also supports optional load control functions to extend battery runtime and prevent system overload, while being compatible with Schneider Electric's user-friendly commissioning app for residential solar and battery systems.

Send Inquiry

Product Description

Overview
During an outage, the Pulse backup controller automatically disconnects from the grid, allowing the system to produce backup power through the Boost and Inverter.
Because of the integrated 12-space QO breaker panel, the Pulse Backup Controller simplifies installations and requires fewer electrical boxes on the wall. The integrated breaker panel can be configured for important backup or non-backup loads. Optional load control can be utilized to extend battery life and allow more control over how the home is powered during an outage.
The Home app allows homeowners to monitor, control, and automate their entire home's energy. Our simple commissioning tool saves installers time, and the installer portal web app allows for remote system monitoring and troubleshooting.
Specifications
Complementary
Width 36.4 in (924.6 mm)
Height 18.1 in (459.7 mm)
Depth 6.2 in (157.5 mm)
Product Weight 70 lb(US) (31.8 kg)
Ordering and Shipping Details
Category US1STG212300
Discount Schedule STG2
GTIN 3.60649E+12
Returnability No
Country of Origin IN
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 36.39 in (92.43 cm)
Package 1 Width 18.14 in (46.08 cm)
Package 1 Length 6.2 in (15.8 cm)
Package weight(Lbs) 86.0 lb(US) (39 kg)
Models
Backup Controller, Pulse, 120/240V, 200A, MID, 12 space QO breaker panel BC200A1NAWM
Manuals & Resources
Datasheet Document Preview

Pulse Backup Controller 12 space QO breaker panel BC200A1NAWM Datasheet.pdf

Download Available
Frequently Asked Questions (FAQ)
Q: How does the Pulse backup controller work during an electrical outage?
During a power outage, the backup controller automatically disconnects your electrical system from the main grid. This disconnection allows the backup system to generate and distribute reserve power through the Boost and Inverter components.
Q: What are the benefits of the integrated 12-space QO breaker panel?
The integrated 12-space breaker panel streamlines the setup process, meaning fewer external electrical boxes are required on your wall. This design offers a cleaner look and reduces installation complexity and space requirements.
Q: Can I control which appliances receive power during an outage?
Yes. The integrated panel can be configured specifically for critical backup or non-backup loads. Additionally, optional load control functionality allows you to manage energy distribution more selectively to extend battery runtime.
Q: How can homeowners and installers monitor system performance?
Homeowners can easily monitor, control, and automate system diagnostics using the Home app. For system specialists, a dedicated commissioning tool saves setup time, and the installer web app facilitates remote system monitoring and troubleshooting.
Q: What are the physical dimensions and weight of this backup controller?
The controller has a width of 36.4 inches (924.6 mm), a height of 18.1 inches (459.7 mm), and a depth of 6.2 inches (157.5 mm). The product weight is approximately 70 lbs (31.8 kg), with a total package shipping weight of 86 lbs (39 kg).
