Overview

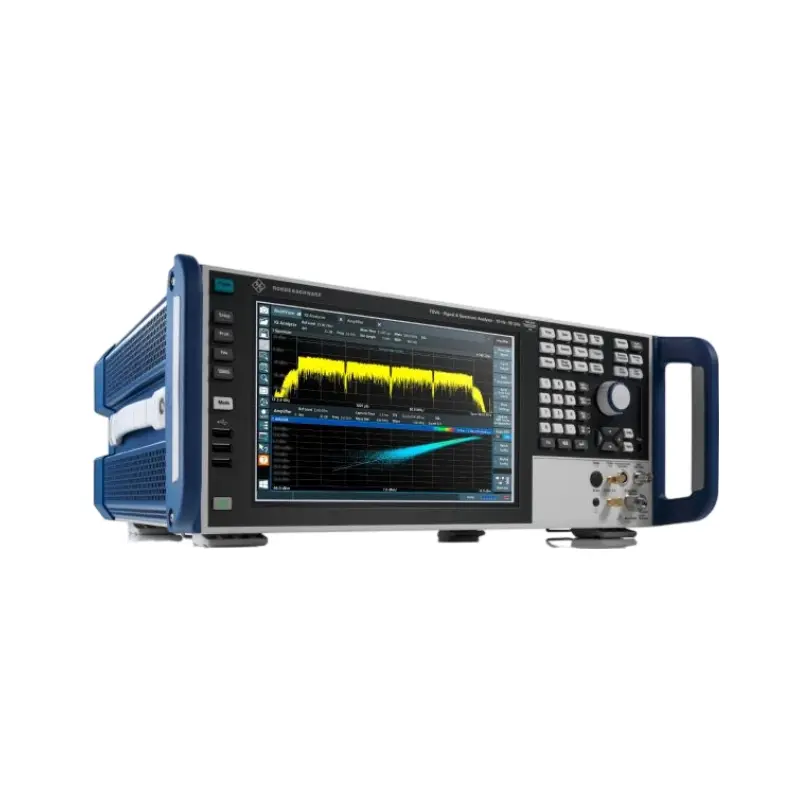

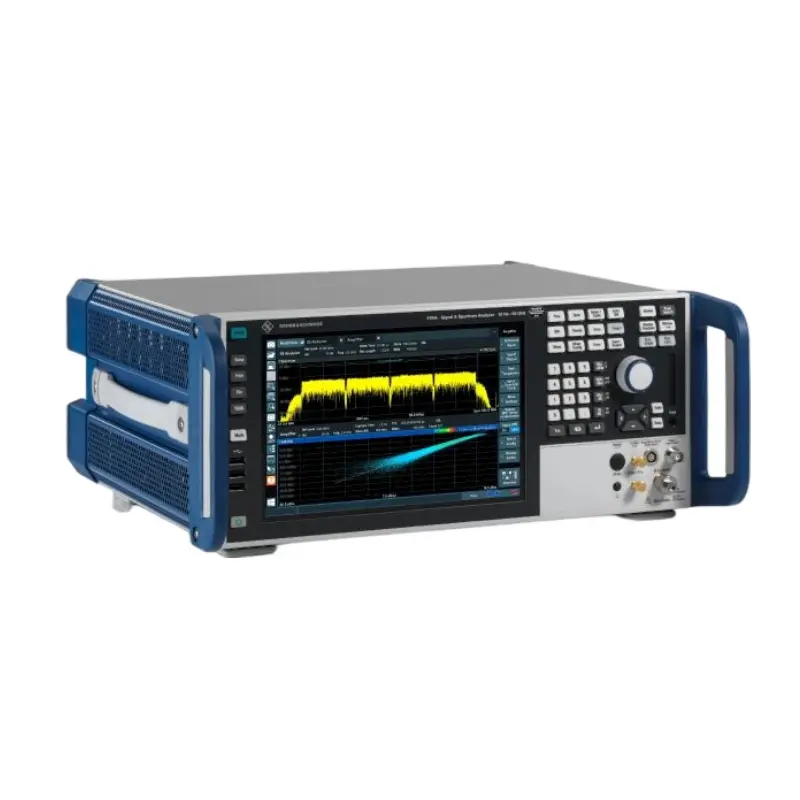

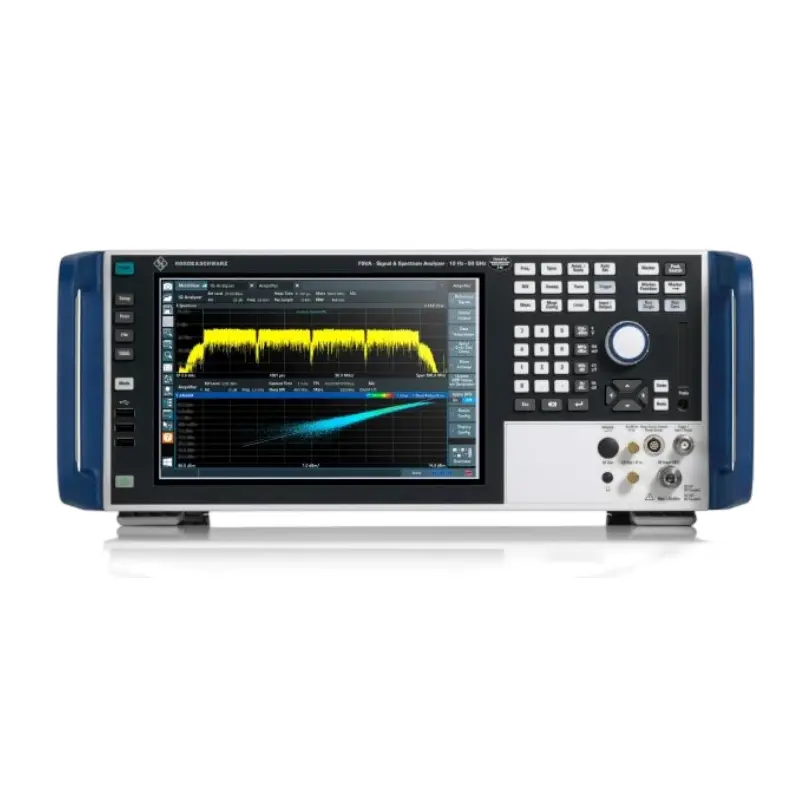

The R&S®FSVA3050 is a high-performance signal and spectrum analyzer from the R&S®FSVA3000 series, designed for wireless communication signal analysis in R&D, system testing, validation, and production.
Equipped with an intuitive multi-touch graphical user interface, it offers easy operation similar to a smartphone. An autoset function automatically sets important parameters such as frequency, level, and gating. Additionally, it features a SCPI recorder that converts manual operations into remote control command scripts, facilitating debugging of the device under test.
Frequency Range
10 Hz to 50 GHz (extendable to 54 GHz with the R&S®FSV3-B54G option).
Analysis Bandwidth
Up to 1 GHz analysis bandwidth enables demanding signal analysis tasks such as linearizing power amplifiers and characterizing frequency-agile signals.
Phase Noise
Single-sideband phase noise is as low as –127 dBc/Hz at a 1 GHz carrier frequency and 10 kHz offset, demonstrating excellent purity.
Linearity & Noise
DANL is -153 dBm at 1 GHz (reaches -167 dBm with preamplifier) and typical TOI is +20 dBm at 1 GHz.
Applications & Extensions: Suitable for 5G NR testing, WLAN testing, and other wireless validation applications. It also supports noise figure measurements, phase noise measurements, general-purpose vector signal analysis, and various digital signal analysis applications (such as 5G NR and 802.11 ax/be). Users can enhance performance via a quad-core CPU option for faster demodulation and a 10 Gbit/s LAN interface for swift I/Q data transfer.
Delivery & Physical Specs
Dimensions
462 mm × 197 mm × 417 mm
Weight
15.6 kg
Battery Configuration
Without battery
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
Frequently Asked Questions
What is the standard frequency range of the R&S®FSVA3050?
The default frequency range is 10 Hz to 50 GHz. However, it can be extended up to 54 GHz using the optional R&S®FSV3-B54G frequency extension.
What is the maximum analysis bandwidth supported by this analyzer?
The R&S®FSVA3050 supports an analysis bandwidth of up to 1 GHz, which is ideal for demanding tasks such as linearizing power amplifiers and capturing quick transient events.
Does the R&S®FSVA3050 support 5G NR signal testing?
Yes, it features options specifically designed for analog and digital signal analysis, including comprehensive support for 5G NR and 802.11 ax/be testing.
What are the phase noise and DANL performance figures?
At a 1 GHz carrier with a 10 kHz offset, the phase noise is less than –127 dBc/Hz. The Displayed Average Noise Level (DANL) is –153 dBm at 1 GHz, which can be improved to –167 dBm with the optional preamplifier.
What makes the user interface user-friendly?
The device is equipped with a multi-touch graphical interface similar to a smartphone, an autoset feature for key parameter configurations, and a built-in SCPI recorder for quick remote script generation.
What are the physical measurements and power needs of the R&S®FSVA3050?
The unit has dimensions of 462 mm × 197 mm × 417 mm, weighs 15.6 kg, operates without an internal battery, and typically consumes 200 W on a standard AC 100 - 240 V (50/60 Hz) power supply.
