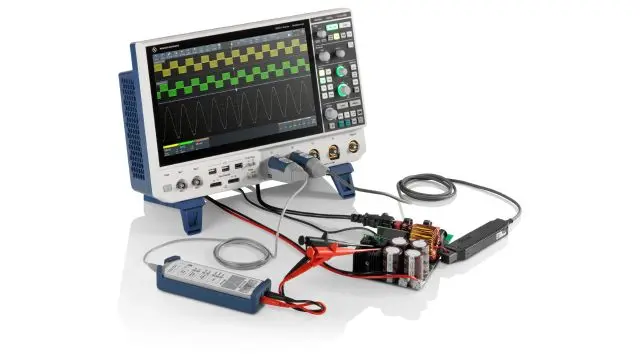

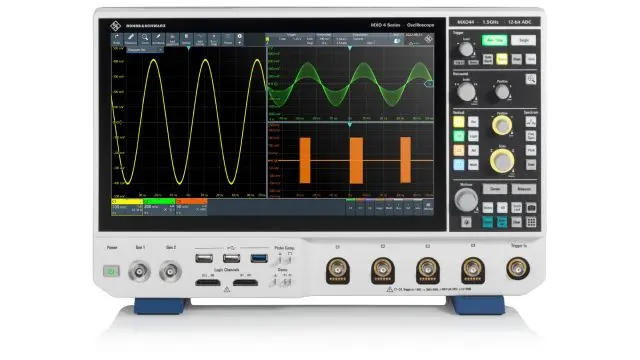

The R&S®MXO 4 series oscilloscopes represent a new generation of instruments centered on “accelerating measurement insights.” As the first oscilloscopes to achieve dual breakthroughs in both performance and cost-effectiveness, they deliver a decade-defining engineering innovation, creating highly efficient and precise testing tools for engineers.

This series incorporates multiple world-leading technologies: featuring the world's fastest real-time update rate of 4.5 million waveforms per second, enabling engineers to capture rare events undetectable by other instruments; equipped with a 12-bit ADC delivering 16 times the resolution of traditional 8-bit oscilloscopes at full sampling rates, achieving uncompromised precision measurement; All four channels come standard with 400 M points of acquisition memory, while the optional 800 M points of interleaved memory expands capacity up to 100 times the industry standard.

In terms of user experience, it far surpasses competitors with a 13.3-inch full HD capacitive touchscreen and intuitive interface, requiring less than 15 minutes to master and significantly lowering the learning curve. Core specifications are equally impressive: Bandwidth spans 200 MHz to 1.5 GHz, making it the world's first oscilloscope with a real-time update rate exceeding 4.5 million waveforms per second. It also boasts an industry-leading spectrum acquisition rate of 45,000 FFTs per second, supporting up to four simultaneous spectrum displays. Its advanced system architecture delivers 18-bit vertical resolution, 12-bit ADC, and 10 effective number of bits (ENOB). It supports region triggering across analog, spectrum, and math domains, and boasts the deepest standard memory in its class at 400 M points.
