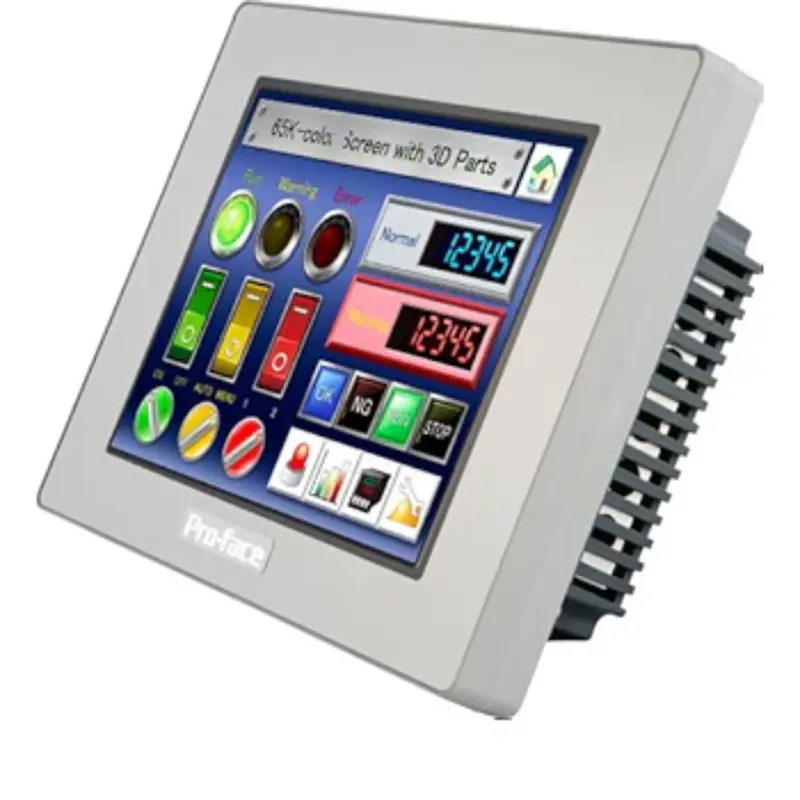

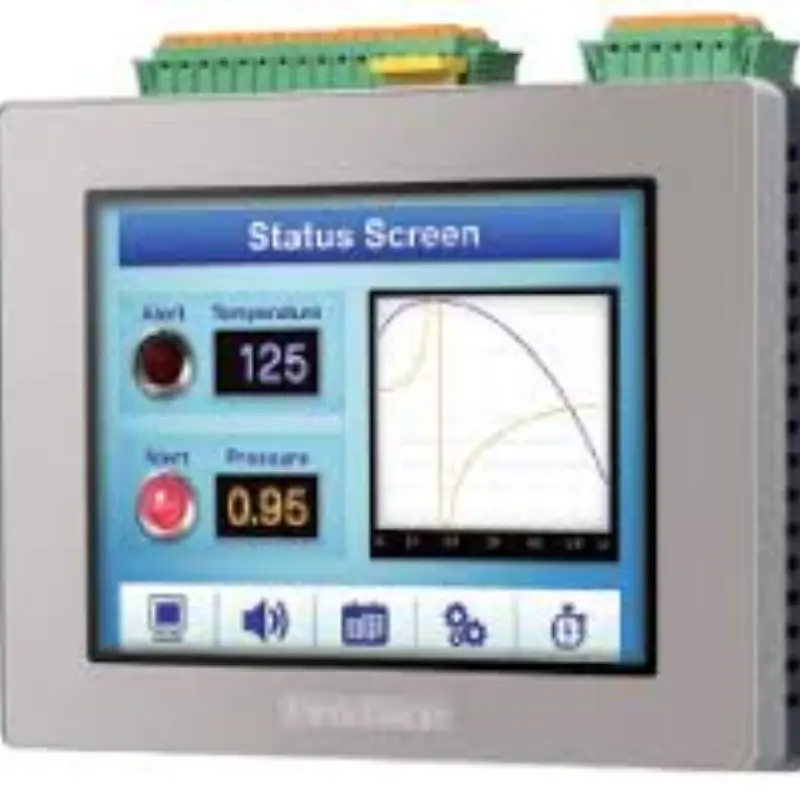

It is equipped with a 5.7-inch TFT color LCD display, featuring a resolution of 320×240 pixels (QVGA) and is capable of showing up to 65,536 colors. The screen brightness can be adjusted in 16 levels through the touch-panel within the configuration menu.
The rated input voltage is 24VDC, and the allowable input voltage range is 20 - 28.8VDC. Its power consumption is 10W or less.
Digital I/O: For the digital input and output, in the DIO model, there are 20 standard inputs, among which 2 are for high-speed input, and 10 standard outputs, with 2 for high-speed output. In the AIO+DIO model, there are 12 standard inputs and 6 standard outputs, also with 2 high-speed inputs and 2 high-speed outputs.
Analog I/O: The AIO+DIO model is furnished with 2-channel analog inputs (13-bit), 2-channel analog inputs for thermocouples (16-bit), and 2-channel analog outputs (12-bit).
It has 1 Ethernet interface, 1 serial interface, 1 USB (Type A) interface, and 1 USB (Mini-B) interface, which support communication with a variety of industrial devices such as PLCs, motion controllers, and robots.
It comes with an application memory of up to 16MB. In addition, it has a non-volatile SRAM of 128KB for data backup and 64KB for the variable area, both of which are backed up by a rechargeable lithium battery.
The LT-4301TM can be installed in a Φ22mm hole, and the separated cable design enables the control unit to be mounted on a DIN rail while the operation unit can be placed in another position, facilitating flexible installation on the panel.
It is programmed by the GP-pro EX screen development software. It supports the Ethernet multi-link function, which allows the easy addition of a display unit as a sub-display to the equipment without modifying the settings of the control device. It also features a new recipe function that permits writing random addresses and multiple data formats.
| Item | Details |
|---|---|
| Model Number | LT-4301TM (PFXLM4301TADC, PFXLM4301TADK) |
| Series | LT4000M Series |
| Display Size | 5.7 inches |
| Digital Input | 12 points standard input (including 2 points for fast input) |
| Digital Output | 6 points standard output and 2 points fast output |
| Analog Input | 2 ch analog inputs (13-bit) and 2 ch analog inputs (16-bit) for thermocouple |
| Analog Output | 2 ch analog outputs (12-bit) |
| Communication Interfaces | COM, LAN, USB, DIO, AIO, CANopen |
