| General Specifications | |

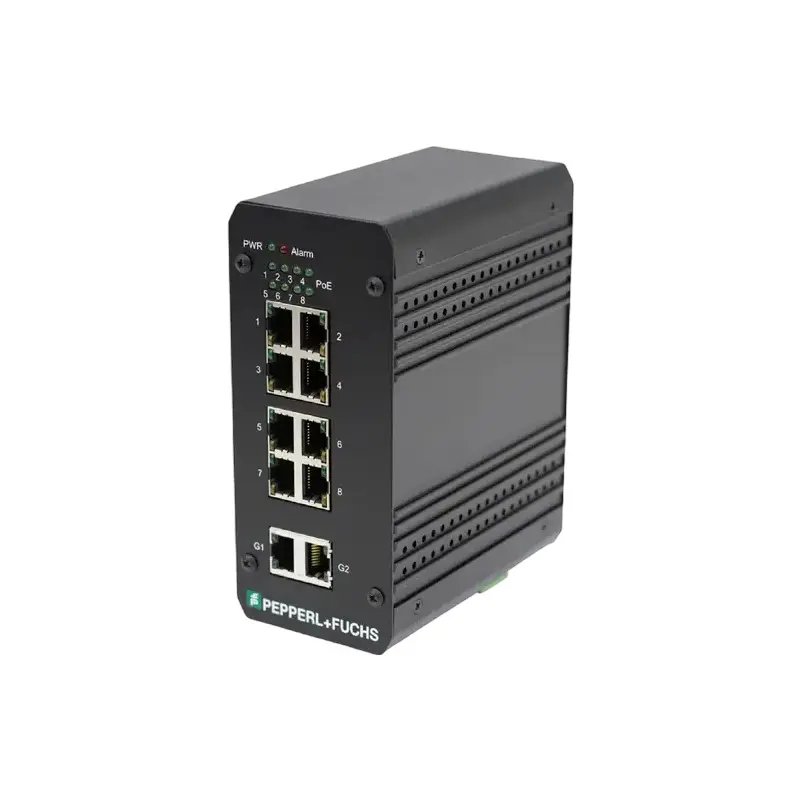

| Model | ICRL-U-10RJ45-PoE-B-DIN |
| UL File Number | E185778 |
| MTBF | 22.8 a |
| Ethernet Interface | |
| Connection Type | RJ45 |
| Auto-MDI(-X) | Yes |
| Autonegotiation | Yes |
| Transfer Rate |
8 - 10BASE-T, 100BASE-TX (10/100 Mbps) 2 - 10BASE-T, 100BASE-TX, 1000BASE-T (10/100/1000 Mbps) |
| Cable Type | Category 5e or better |
| PoE Features | |
| Type | PoE output Mode: Alternative B |
| Max. Total Power | 80 W |
| Standards | |
| IEEE 802.3 10BASE-T | Yes |
| IEEE 802.3u 100BASE-TX | Yes |
| IEEE 802.3x Flow Control | Yes (with Back-pressure support) |
| IEEE 802.1p CoS | Yes (Class of Service support) |
| IEEE 802.3ab 1000BASE-T | Yes |
| IEEE 802.3af PoE | Yes |
| Electrical Specifications | |
| Rated Operating Voltage (Ue) | 8 ... 32 V DC |
| Power Consumption | 15 W max. @ 24 V without PD loading |
| Nominal Voltage (UN) | 12 V, 24 V |
| General Info | Digital output (relay output) rating 1 A Max. @ 24 V DC, Digital input, Alarm relay for failure and event notification |
| Inputs / Outputs | |
| Number / Type | 8 x RJ45 (Fast Ethernet), 2 x RJ45 (Gigabit) |
| Standard Conformity | |
| Electrical Safety | CSA C22.2 No. 60950 / UL60950 |
| Emitted Interference | EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 |
| Noise Immunity | EN 55032 |
| Ambient Conditions | |
| Ambient Temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage Temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Relative Humidity | Max. 95 % (non-condensing) |
| Operating Altitude | 0 ... 3048 m |
| Mechanical Specifications | |
| Degree of Protection | IP30 |
| Housing Material | Aluminum |
| Mounting Type | DIN rail or direct panel mounting |
