ByÂ choosingÂ fromÂ aÂ rangeÂ ofÂ plug-inÂ modulesÂ thatÂ carryÂ outÂ preciseÂ optical,Â electrical,Â andÂ TDR/TDTÂ measurements,Â youÂ mayÂ createÂ aÂ flexible,Â modularÂ mainframeÂ platform.

Send Inquiry

Product Description

Overview Specifications Models Delivery Information Manuals + resources

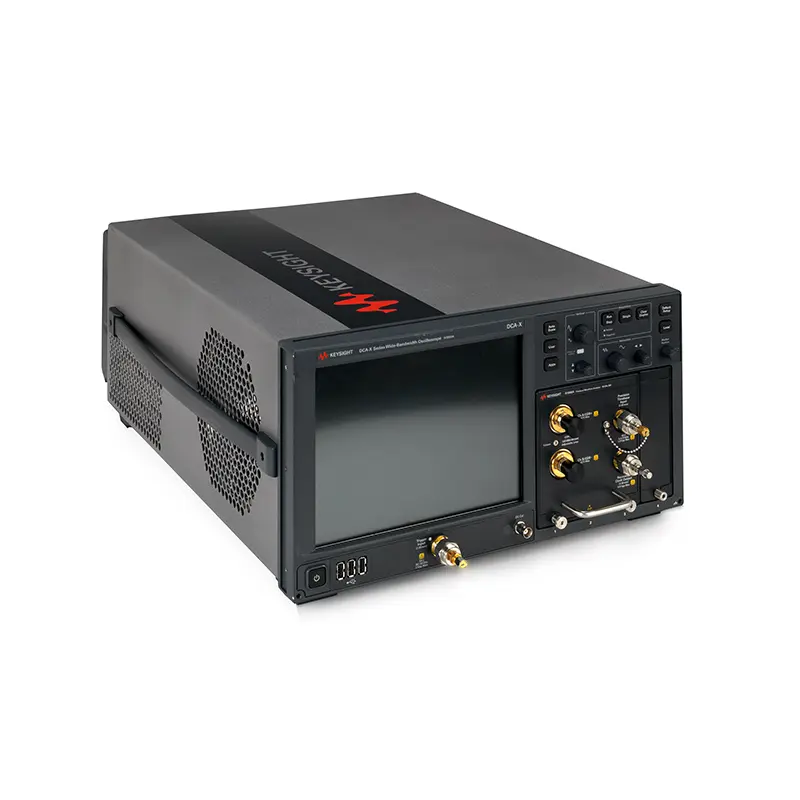

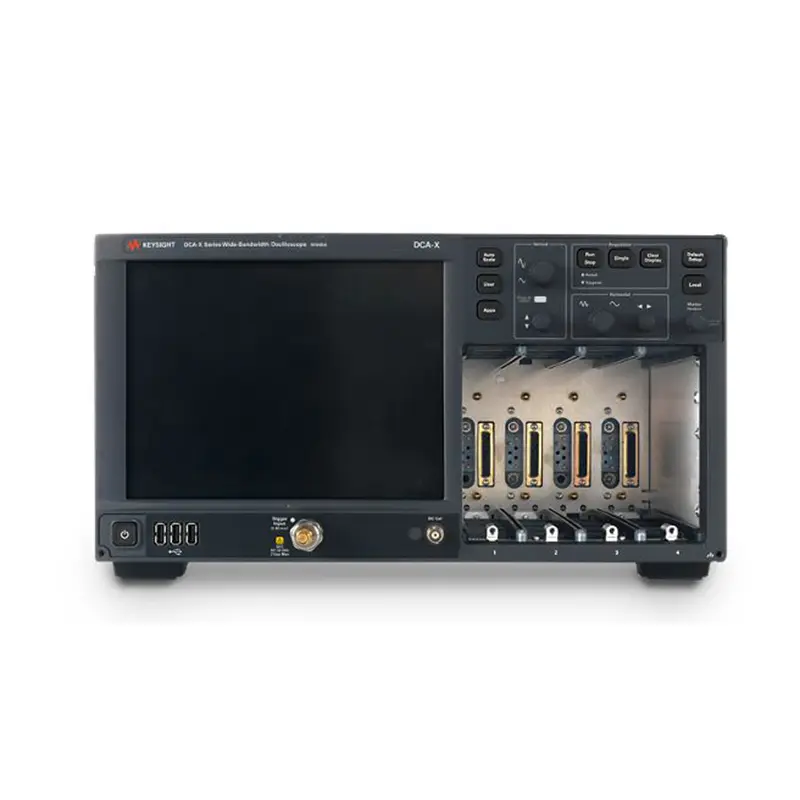

From 50 Mb/s to 224 Gb/s, the Keysight N1000A DCA-X wide-bandwidth oscilloscope can measure high-speed digital designs with accuracy and precision. Choose from a variety of plug-in modules to customize the N1000A DCA-X mainframe to your preferred sensitivity, filtering, and bandwidth.

A mainframe and numerous modules for flexible testing make up the DCA-X platform.

The constancy and versatility of the DCA-X series ensure great accuracy in any measurement.

Helps shield your investment against obsolescence by supporting both current and older, discontinued optical, electrical, and TDR modules.

Jitter as low as 50 fs, noise as low as 275 uV, and bandwidth to > 110 GHz should all be tested.

High test throughput is possible with sample rates of up to 250 kSa/s and support for up to 16 channels.

Integrate plug-in modules for electrical, optical, and/or TDR/TDT/S-parameter analysis to personalize.

8X increase in the precision of time intervals.

Timebases with temperature control increase resistance to environmental fluctuations.

Key Performance Specifications

2 and 4 analog channel models
200 MHz, 100 MHz, and 70 MHz bandwidth models up to 2 GS/s sampling rate
5 M record length on all channels
5 year warranty

Key Features

9-inch WVGA color display with 15 horizontal grids shows 50% more signal
TekVPI probe interface supports active, differential, and current probes with automatic scaling and units
New front-end design enables more accurate measurements
32 automated measurements, and FFT function for quick waveform analysis
Search and Mark features for easy identification of events that occur in the acquired waveform
HelpEverywhere provides helpful on-screen tips for new users
Built-in Scope Intro handbook provides operating instructions and oscilloscope fundamentals
The instrument user interface and the front panel overlay is translated into 10 languages

Connectivity

USB 2.0 host port on the front panel for quick and easy data storage
USB 2.0 device port on rear panel for easy connection to a PC
10/100BASE-T Ethernet port for remote control over LAN
Wi-Fi interface provides wireless communications capability support

Model	N1076B	N1077A	N1078A	N1077B
Description	64 GBd Electrical Clock Recovery	32 GBd Single-mode & Multimode Optical / Electrical Clock Recovery	64 GBd Single-mode Optical / Electrical Clock Recovery	64 GBd Multimode & Single-mode Optical / Electrical Clock Recovery
Data Rate	125 MBd to 64 GBd	50 MBd to 32 GBd	125 MBd to 64 GBd	125 MBd to 64 GBd
Input Signal	Electrical	Optical and Electrical	Optical and Electrical	Optical and Electrical
Wavelength	-	850 nm - 1600 nm	1260 nm - 1620 nm	830 nm - 1340 nm²
Modulation Format	PAM4 and NRZ	PAM4 and NRZ	PAM4 and NRZ	PAM4 and NRZ
Splitter Type	Internal	Internal and External	Internal and External	Internal and External
Integrated Equalizer	Yes (Variable)	No	Yes (Variable)	Yes (Variable)
Jitter Spectrum Analysis (JSA)¹	Yes	Yes	Yes	Yes

N1000A

Weight: Mainframe without modules (characteristic) 20.5 kg (43 lb)

Module Weight: (characteristic) 1.2 kg (2.6 lb)

Dimensions (excluding handle):

• Without front connectors and rear feet: 221mm H x 426mm W x 530mm D (8.7 inch x 16.76 inch x 20.9 inch)

• With front connectors and rear feet: 234mm H x 426mm W x 601mm D (9.23 inch x 16.76 inch x 23.67 inch)

• With front cover and rear feet: 234mm H x 426mm W x 612mm D (9.23 inch x 16.76 inch x 24.1 inch)

N1002A

Weight: 6.5 kg (14.4 lbs), characteristic

Dimensions (excluding handle):

• 101 mm H x 426 mm W x 491 mm D (3.98 inch x 19.33 inch x 19.33 inch)

Keysight Wide-Bandwidth Oscilloscope N1000A DCA-X The mainframe

KEYSIG~2.PDF

Download

KEYSIG~1.PDF

Download

Frequently Asked Questions

What is the measuring data rate range of the Keysight N1000A DCA-X?

The Keysight N1000A DCA-X wide-bandwidth oscilloscope can accurately measure high-speed digital designs with data rates ranging from 50 Mb/s up to 224 Gb/s.

How does the DCA-X platform support older plug-in modules?

The N1000A DCA-X is designed to shield your investment from obsolescence by supporting both current and older, discontinued optical, electrical, and TDR modules.

What are the key noise and jitter performance limits of this mainframe?

The DCA-X provides exceptional measurement precision, with jitter values as low as 50 fs, noise down to 275 uV, and bandwidth capabilities extending to greater than 110 GHz.

What analog channel configurations are available on the basic models?

The oscilloscope models are available in 2-channel and 4-channel analog configurations with bandwidth options of 70 MHz, 100 MHz, and 200 MHz.

What connectivity interfaces are supported by the instrument?

It features a front-panel USB 2.0 host port, a rear-panel USB 2.0 device port, a 10/100BASE-T Ethernet port for LAN-based remote control, and Wi-Fi interface support.

What is the difference between the N1076B and N1077A clock recovery models?

The N1076B supports electrical clock recovery from 125 MBd to 64 GBd, whereas the N1077A supports both optical (single-mode & multimode) and electrical clock recovery from 50 MBd to 32 GBd.
