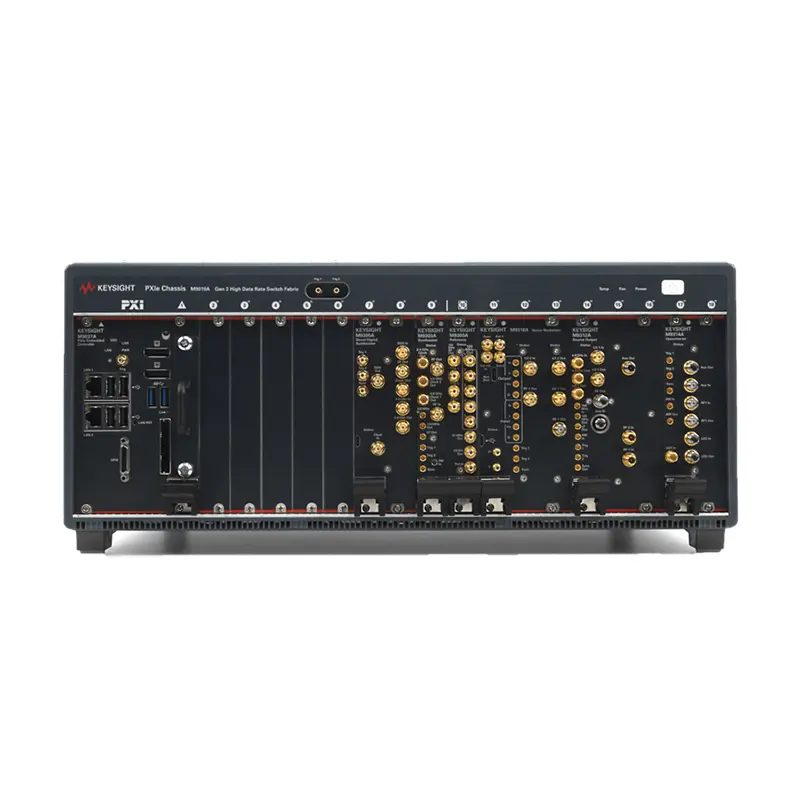

High-quality replay of previously recorded data that represents current signal environments is made possible by the Keysight S7970A playback solutions. The M9383A PXIe microwave signal generator, a small, modular device that offers frequency coverage from 1 MHz to 20 GHz or 44 GHz and up to 320 MHz of streaming modulation bandwidth, is the central component of the S7970A streaming playback solution.
Keysight Broadband Streaming Playback Solution S7970A
Frequently Asked Questions (FAQ)
What is the Keysight S7970A streaming playback solution?
It is a high-quality replay solution designed to reproduce previously recorded data representing current signal environments, centered around the M9383A PXIe microwave signal generator.
What frequency ranges are supported by the S7970A configuration options?
The S7970A-020 option supports a tuning range of 1 MHz to 20 GHz (F20 option), while the S7970A-044 option supports 1 MHz to 44 GHz tuning (F44 option).
What are the modulation bandwidth differences between the options?
The S7970A-020 includes the C05 option (500 MHz RF modulation bandwidth) and the S7970A-044 includes the C06 option (500 MHz RF modulation bandwidth).
Why is the M9300A frequency reference module required?
The M9300A module (option 300) provides five 100 MHz outputs, which are essential to meet the system's official data sheet performance specifications.
Does the solution support long duration signal replay?
Yes, both pre-configured S7970A options include the LW1 option, which enables long waveform playback (streaming) functionality.
