Best keysight N6705C DC Power Analyzer Manufacturers, Product

UnmatchedÂ productivityÂ improvementsÂ areÂ possibleÂ whenÂ sourcingÂ andÂ measuringÂ DCÂ voltageÂ andÂ currentÂ intoÂ theÂ DUTÂ usingÂ theÂ N6705CÂ DCÂ PowerÂ Analyzer.

Send Inquiry

Product Description

Overview

Specifications

Models

Delivery Information

Manuals + resources

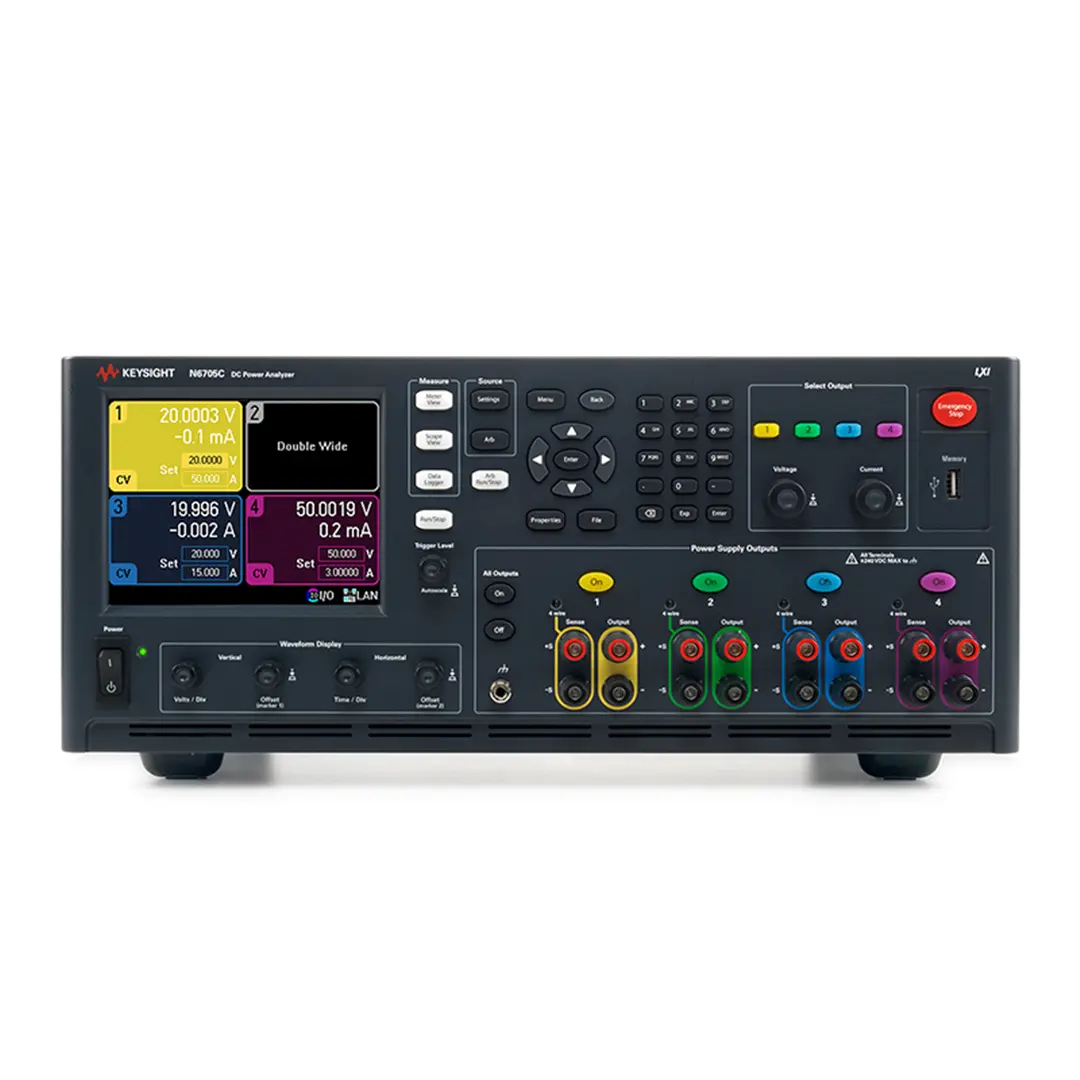

You may increase productivity when sourcing and measuring DC voltage and current into the device under test (DUT) using the Keysight N6705C DC power analyzer. Up to four sophisticated power supplies can be used with the N6705C DC power analyzer: a digital multimeter (DMM), scope, arb, and data recorder.

With the N6705C DC power analyzer, all functions and measurements are on the front panel, so there's no need to write and debug scripts to handle a bunch of instruments. Use the Keysight PathWave BenchVue BV9200 control and analysis software to gain even more control and analysis capabilities.

New advanced data analysis tools, automation capabilities, and an upgraded user interface are all characteristics of the BV9200 PathWave BenchVue control and analysis software. The N6705C is fully programmable via GPIB, USB, LAN, and LXI when automated bench setups are required.

Custom configurations are available for the N6705C DC power analyzer to satisfy your power supply and analysis needs. Up to four DC power modules and 600 W of total DC output power can be accommodated by its four-slot mainframe.

Features

Ideal for R&D procurement to gauge DC voltage and current entering the DUT.

Operate common functions via dedicated physical controls.

Visualize complex data on a large color graphic display.

Enjoy flexible programming through GPIB, LAN, USB; compliant with LXI standards.

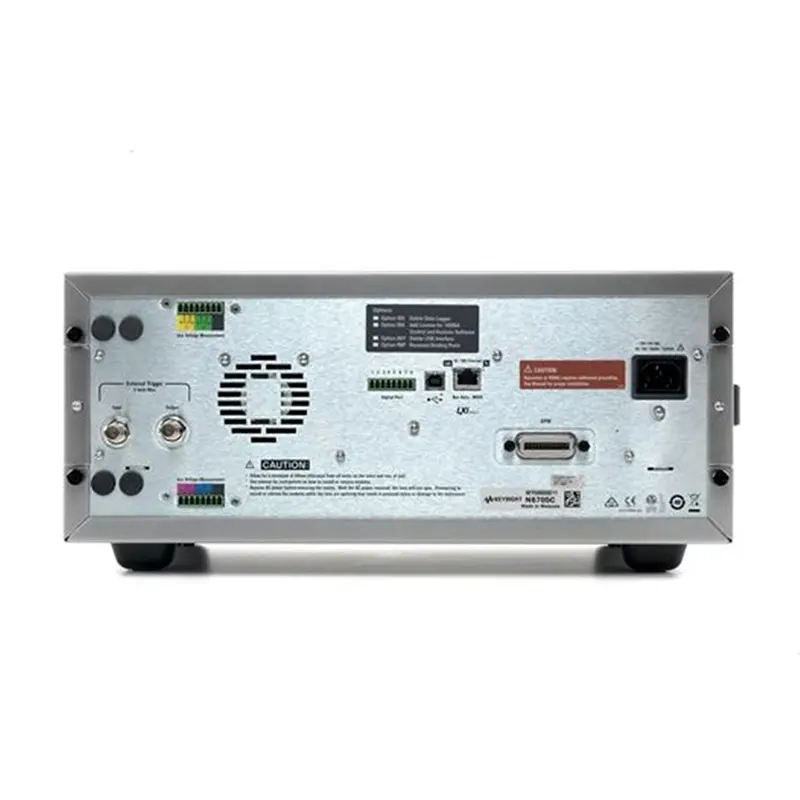

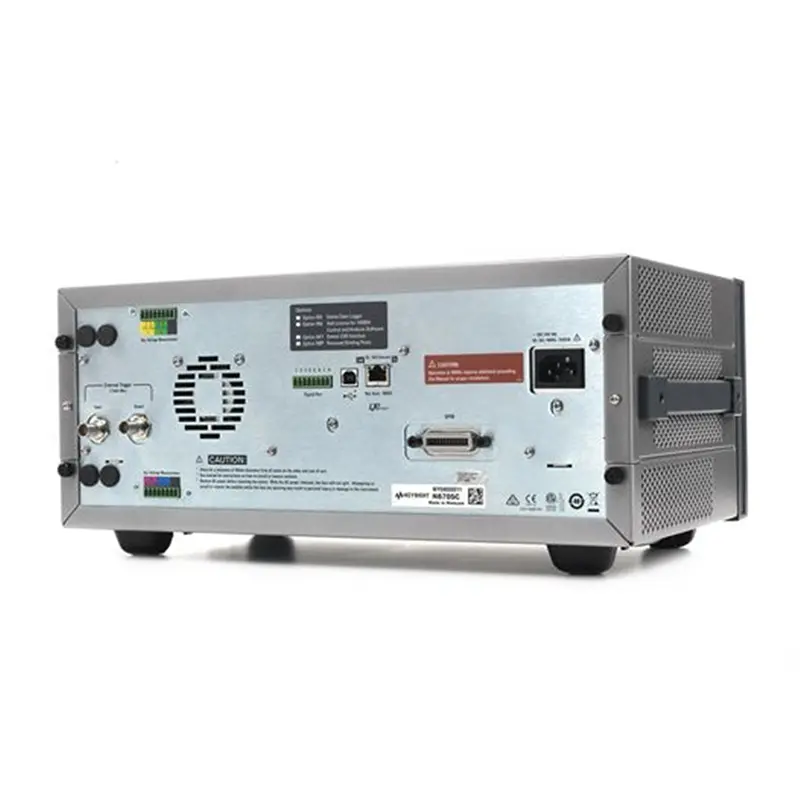

Interface capabilities

GPIB	SCPI - 1993, IEEE 488.2 compliant interface
LXI compliance	Class C
USB 2.0	Requires Keysight IO Library version M.01.01 or 14.0 and up
10/100 LAN	Requires Keysight IO Library version L.01.01 or 14.0 and up

Environmental conditions

Operating environment	Indoor use, installation category II (for AC input), pollution degree 2
Temperature range	0 °C to 55 °C (output current is derated 1% per °C above 40 °C ambient temperature)
Relative humidity	Up to 95%
Altitude	Up to 2000 meters

AC input

Input ratings	~ 100 VAC - 240 VAC; 50/60/400 Hz
Power consumption	1440 VA
Power factor	0.99 @ nominal input and rated power

Model number	Description
N6705C, N6715C	DC Power Analyzer Mainframes
N6731B - N6786A	DC Power Modules
N6791A - N6792A	Electronic Load Modules
PW9252A	PathWave Advanced Power Control and Analysis
PW9253A	PathWave Advanced Battery Test and Emulation

Net weight

N6705 with 4 modules (typical) 16 kg/35 lbs

Dimensions

Height/width/depth:
194.7 mm / 425.6 mm / 313 mm
(7.665 in. / 16.756 in. / 12.319 in.)

keysight N6705C DC Power Analyzer Resource

N6700 Resource Document

Frequently Asked Questions (FAQ)

Q1: What are the main functions integrated into the Keysight N6705C DC power analyzer?

A1: The N6705C integrates up to four sophisticated power supplies, a digital multimeter (DMM), an oscilloscope, an arbitrary waveform generator (arb), and a data recorder into a single mainframe.

Q2: How many power modules can the N6705C mainframe hold?

A2: The mainframe features a four-slot configuration that can accommodate up to four DC power modules with a total DC output power of up to 600 W.

Q3: Which interfaces are supported for programming and automation?

A3: The analyzer is fully programmable and supports GPIB, USB, 10/100 LAN, and is fully compliant with LXI standards.

Q4: What environmental conditions are required for operating the N6705C?

A4: It is designed for indoor use within a temperature range of 0 °C to 55 °C, relative humidity up to 95%, and altitudes up to 2000 meters.

Q5: What is the benefit of using PathWave BenchVue software with the analyzer?

A5: PathWave BenchVue (such as BV9200) provides advanced data analysis tools, automated testing capabilities, and an upgraded user control interface without requiring script writing.
