| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature | 0 to 55 °C (32 to 131 °F) |
| Vibration | Random Vibration 0.0002 G2/Hz, 1.0 Grms, Test Frequency: 5-500Hz |
| Storage Temperature Range | Operating: -10° to 40°C (14° to 104°F) Storage: -20° to 70°C (-4° to 158°F) |
| Onboard Storage | 256GB |
| Humidity | 10 to 95% at 40°C, Non-Condensing |
| SOFTWARE & INTERFACE | |
| Display | 18.5 in Panel, 1980*1080 (16:9) Resolution, 350 Cd/M2 Brightness |
| Touchscreen Type | Projected Capacitive (PCAP) Multi-Touch |
| Operating System | Windows 10 ENT 2019/2021 LTSC (Pre-installed) |
| ELECTRICAL SPECIFICATIONS | |
| Supply / Rated Voltage | 24 VDC |
| STANDARDS & CERTIFICATIONS | |
| Standards | BSMI, CCC, CE (LVD), FCC Class A, KC, RCM, RoHS, UL, cULus Class I Div 2 |
| Ingress Protection | Front panel: IP66 |
| I/O CAPABILITIES & SOFTWARE OPTIONS | |
| Software Options | Experion HS, LX/PC Panel Station; Experion Panel Server with Station (Base 550 points, up to 16K SCADA points) |
| SYSTEM HARDWARE OVERVIEW | |
| Series | Experion |

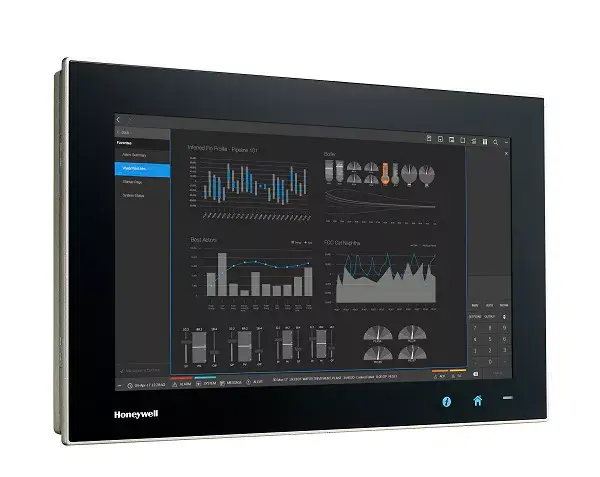

| Models | MZ-PPCT02 |
| Processor | Intel CORE I3 3.2G 6M 1200P 4C I3-10100E |
| Onboard Flash Memory | 256 GB |
| Memory | 16 GB |
| COMMUNICATION & PROTOCOLS | |
| Number of USB Ports | 5*USB 3.2 + 1*USB 2.0 |
| Number of Serial Ports | 2*RS 232/422/485 |
| Ethernet Ports | Integrated 2*10/100/1000 mbps ports |
