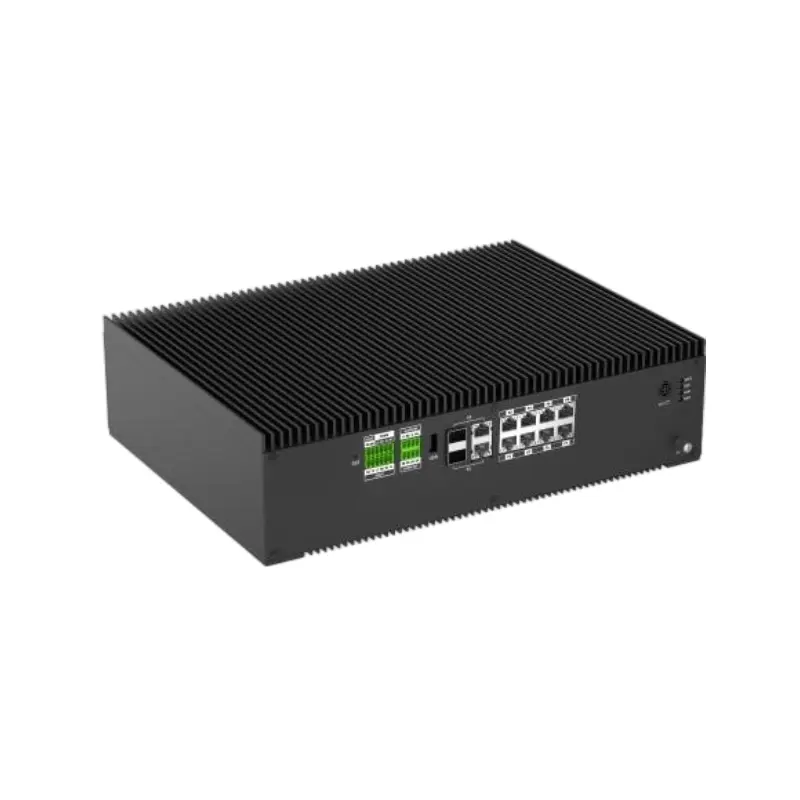

The iDS-TSS300-H Traffic Incident Detection Server is an intelligent analysis device based on a deep learning platform, primarily designed for traffic incident detection and management in urban traffic scenarios.
Based on large-scale model capabilities, it detects real-time events including congestion, wrong-way driving, parked vehicles, emergency lane occupation, roadblocks, breakdowns, traffic accidents, fires, smoke, and intrusions.
Collects key traffic parameters like vehicle flow (small/medium/large), average speed, lane occupancy times, average headways, and spacing to support traffic flow analysis.
Equipped with Video Quality Diagnosis (VQD) to identify issues like video tampering, blurring, and signals anomalies, ensuring the continuous stability of monitoring nodes.
Easily integrates into existing video networks and recording devices, allowing quick system upgrades while preserving legacy surveillance investments.
| Video | |
| Video compression | H.265, H.264 |
| Video input | 4 CH access, up to 4MP resolution |
| Network | |
| API | ISAPI, SDK |
| Client Compatibility | Central Master, Central Pro, Central Master Lite |
| Protocols | TCP/IP, DDNS, HTTPS, RTSP, NTP, HTTP, FTP, DHCP, DNS, RTP, IPV4/IPV6, UDP, SSL/TLS, IRTCP, SMTP, IGMP, 802.1X, QOS, ARP |
| Simultaneous Live View | Up to 4 channel(s) |
| Web Browser | Chrome V61+, Edge |
| User/Host Management | Up to 128 users, 3 user levels: administrator, operator, and user |
| Interface | |
| Alarm | 2 * input, 2 * output |
| Audio | 1 * input, 1 * output |
| Indicator | 4 * indicators (1 * Power, 1 * Alarm, 1 * HDD, 1 * Ready) |
| Network Interface | 10 RJ45 10M/100M/1000M self-adaptive Ethernet ports |
| Optical Interface | 2 SFP |
| RS-232 / RS-485 | 2 RS-232 / 2 RS-485 |
| USB | 1 * USB 3.0 (5.0 V, 1.0 A) |
| Function | |
| Data Uploading | TFS(Traffic Forensics System), AID(Automatic Incident Detection) and manual uploading |
| Network Settings | Able to set two-segment IP address |
| General | |
| Operation System | Linux |
| HDD Storage | 4 x 3.5-inch SATA (Each interface supports up to 8 TB HDD) |
| Operating GUI | Web |
| Power | DC 12 V ±10%, 6 A, max. 72 W |
| Dimensions | 482.6 mm * 102.5 mm * 285.49 mm (19" x 4.04" x 11.24") (L * W * H) |
| Weight | Approx. 5.82 kg (12.83 lb.) |
| Operating Condition | -30°C to 70°C (-22°F to 158°F). Humidity 95% or less (non-condensing) |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A11:2020+A1:2020, ENIEC61000-3-2: 2019+A1:2021, EN61000-3-3:2013+A1:2019+A2:2021, EN 50130-4:2011+A1:2014 |
| Safety | CB: IEC62368-1:2014, IEC 62368-1:2018; CE-LVD: EN 62368-1:2014+A11:2017 |
| Environment | CE-ROHS: 2011/65/EU; WEEE: 2012/19/EU |
Models Available:
iDS-TSS300-H Traffic Incident Detection Server
