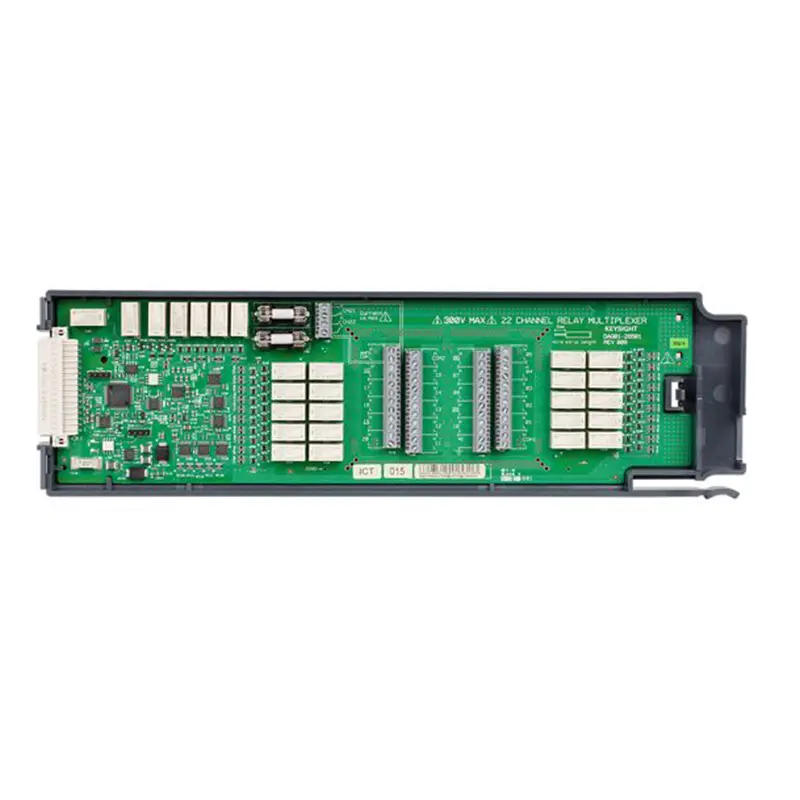

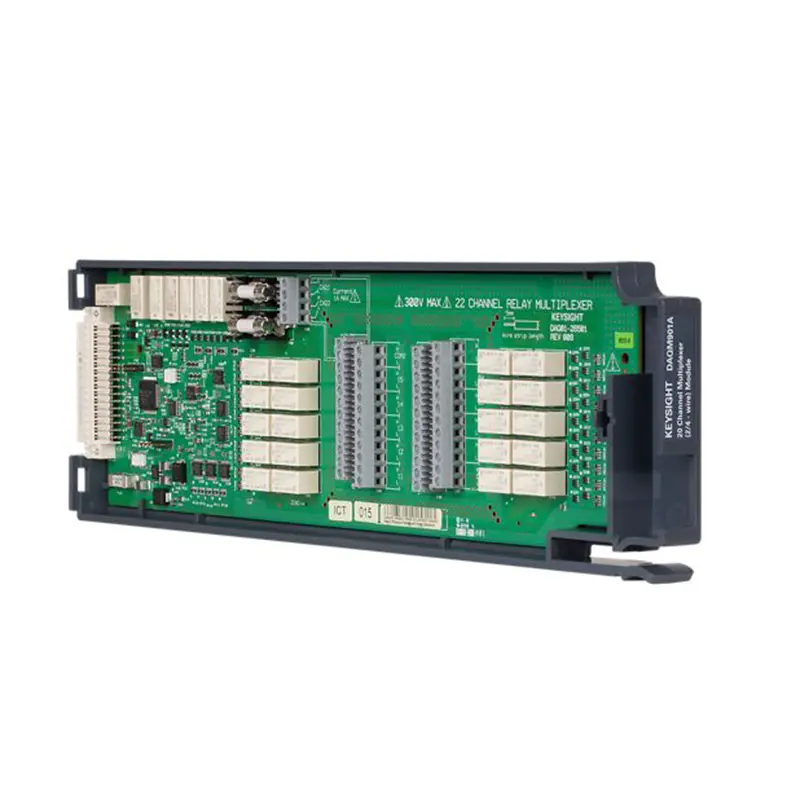

The Keysight DAQM901A module Data Acquisition System is the most versatile 20-channel multiplexer for general-purpose scanning. It combines dense, multi-function switching with 80 channel / second scan rates to address a broad spectrum of data acquisition applications.
On the same module, two-wire and four-wire channels can be combined. The integrated digital multimeter receives up to 1A of current from two extra fused inputs (a total of 22 channels), enabling ac and dc current measurements without the necessity of external shunt resistors.
Frequently Asked Questions
What is the scanning speed of the DAQM901A multiplexer?
The DAQM901A module combines dense, multi-function switching with a scan rate of 80 channels per second. However, the system can achieve scan rates of up to 450 channels per second depending on the mainframe setup.
How many channels does the DAQM901A module support?
It is a versatile 20-channel multiplexer. Additionally, the integrated digital multimeter receives up to 1A of current from two extra fused inputs, offering a total of 22 channels.
Can I combine different wire configurations on the same module?
Yes, two-wire and four-wire channels can be combined on the same DAQM901A module for flexible system configurations.
What types of input signals can the system evaluate and transform?
The system supports 14 distinct input signals including temperature (thermocouple, RTDs, thermistor), dc/ac volts, 2- and 4-wire resistance, frequency and period, dc/ac current, capacitance, and direct/bridge strain.
Does the DAQM901A system support external PC connection?
Yes, it features LAN and USB ports for simple connection to your PC, with some models like the DAQ973A including an extra GPIB interface.
Is the system compatible with older data acquisition models?
Yes, the system offers code compatibility with the 34970A and 34972A models, ensuring smooth transition and integration.
