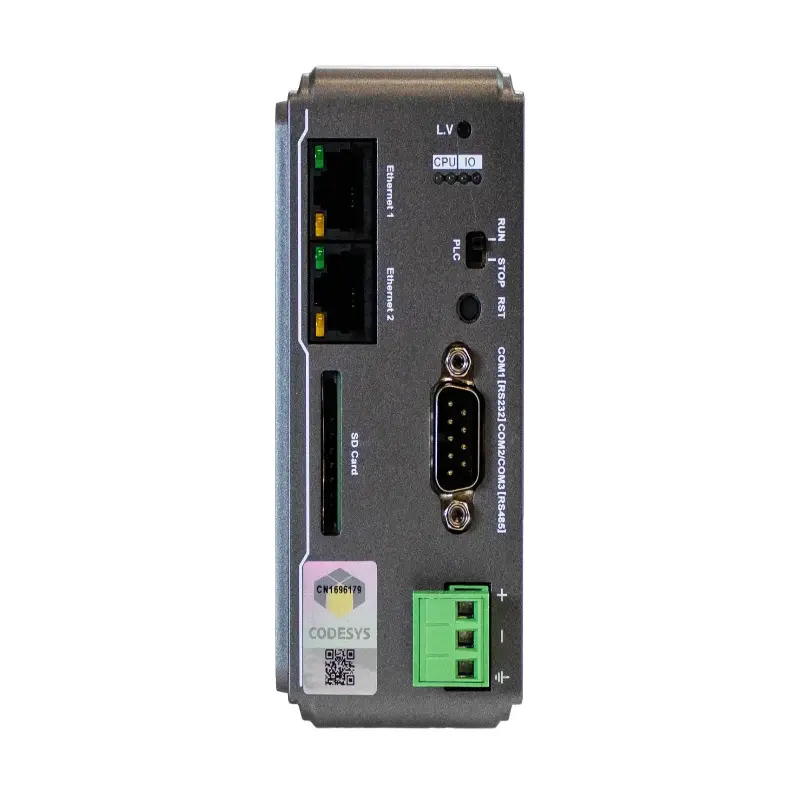

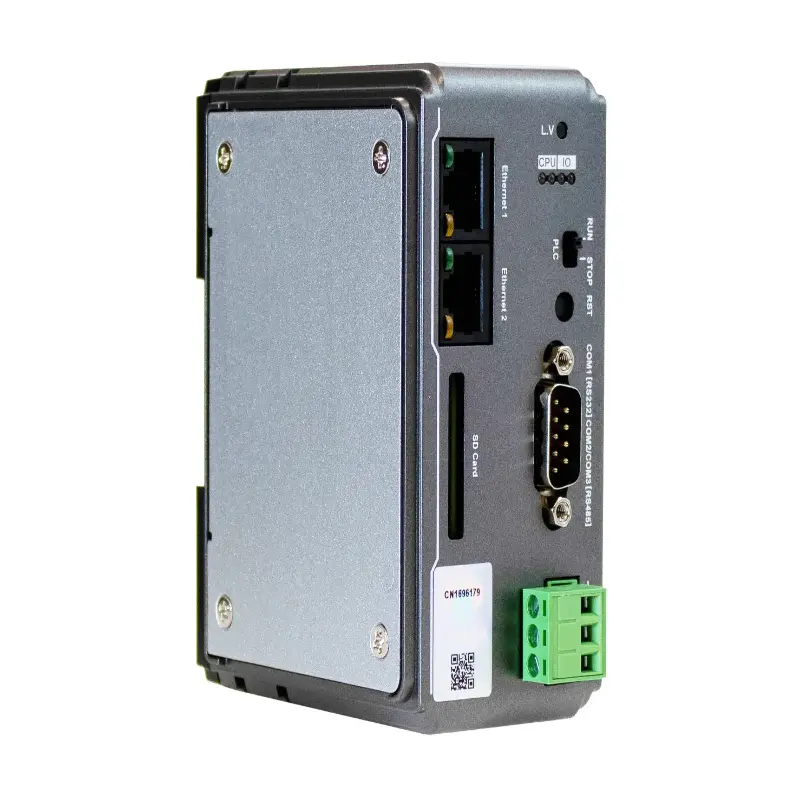

The cMT-CTRL01 is a programmable logic controller integrating CODESYS and an IIoT gateway, primarily targeting industrial IoT and smart manufacturing applications. Below is an overview:
Processor: Dual-core RISC central processing unit.
Memory: Equipped with 4GB Flash memory, 512MB RAM, plus 3MB of Data/Memory/Code memory. Reserved and persistent areas each occupy 16KB, with an 8MB file system.
Communication Interfaces: Features one 10/100/1000Base-T Ethernet port and one 10/100Base-T Ethernet port. COM1 is an RS-232 2-wire interface, COM2 is an RS-485 2-wire/4-wire interface, and COM3 is an RS-485 2-wire interface.
Other: Supports SD/SDHC cards, built-in real-time clock, operates on 24±20% VDC power supply with integrated power isolation. Dimensions: 50x109x81mm, weight: approx. 0.24kg. Mounted via 35mm DIN rail with aluminum rail mounting. IP20 protection rating.
Programming Standards: Built-in CODESYS complies with IEC 61131-3 PLC standards, supporting multiple programming languages including FBD, LD, IL, ST, SFC, and CFC.
Protocol Support: As a gateway, it supports IIoT protocol standards like OPC UA and MQTT, along with protocols such as Modbus TCP/IP Master and EtherCAT Master. It also features a built-in Modbus TCP/IP gateway supporting protocols for over 300 mainstream PLC brands.
Remote Services: Authorized users can activate EasyAccess 2.0 to update CODESYS projects and monitor device status. Through EasyAccess 2.0's push notifications, users receive real-time operational error alerts on mobile devices.
Data Processing: The IIoT gateway supports data sampling and event logging. Historical data can be stored on SD cards or synchronized to SQL databases.
Port Flexibility: Dual Ethernet ports offer versatile allocation. One can be dedicated to CODESYS while the other serves the IIoT gateway, or both can function as IIoT gateways—one connecting to a host computer or the internet, the other linking to field Ethernet-based PLCs.
The cMT-CTRL01 is suitable for industrial IoT and smart manufacturing scenarios. It connects industrial equipment from different brands, converts protocols, and uploads device data to industrial IoT data platforms. This enables production equipment monitoring, data acquisition and analysis, and remote operation and maintenance, helping factories achieve intelligent upgrades and automated control. It can also be flexibly combined with iR series modules to expand the system according to application requirements.
| Memory | Flash | 4 GB |
| RAM | 512 MB | |
| Data, Input, Output, Memory, Code | 5 MB*1 | |
| Retain area | 32 KB (every minute) (Kept after reboots)*1 | |
| Persistent area | 32 KB (every minute) (Kept after downloads)*1 | |
| File system | 12 MB*1 | |
| Processor | Dual-core RISC | |
| I/O Port | SD Card Slot | SD/SDHC |
| Ethernet | Ethernet 1: 10/100/1000 Base-T*1 Ethernet 2: 10/100 Base-T*1 |
|
| COM Port | COM1 RS-232 2W, COM2 RS-485 2W/4W, COM3 RS-485 2W | |
| Local bus | iBus | |
| CAN Bus | N/A | |
| CODESYS | Protocol | Modbus TCP/IP Master, EtherCAT Master EtherNet/IP Scanner, PROFINET Controller*2 |
| RTC | Built-in | |
| Power | Input Power | 24±20%VDC |
| Power Isolation | Built-in | |
| Power Dissipation | Nominal 310mA@24VDC | |
| Current for Internal Bus | Max 2A@5VDC | |
| Current Consumption | 550mA@5VDC | |
| Voltage Resistance | 500VAC (1 min.) | |
| Isolation Resistance | Exceed 50MΩ @ 500VDC | |
| Specification | PCB Coating | Yes |
| Enclosure | Plastic | |
| Dimensions WxHxD | 50 * 109 * 81 mm | |
| Weight | Approx. 0.24 kg | |
| Mount | 35 mm DIN rail mounting | |
| Environment | Protection Structure | IP20 |
| Storage Temperature | -20°~70°C (-4°~ 158°F) | |
| Operating Temperature | -10°~50°C (14°~122°F) | |
| Relative Humidity | 10%~90% (non-condensing) | |
| Altitude | 3,000 m | |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) | |
| Certificate | CE | CE marked |
| UL | cULus Listed | |
| Software | EasyBuilder Pro | V6.03.02 or later versions |
| Weincloud | EasyAccess 2.0 (Optional) | |
| CODESYS® | V3.5 SP10 Patch 3 or later*3 | |
Models: cMT-CTRL01 CODESYS PLC with IIoT Gateway
| PCB Coating | Yes |
| Enclosure | Plastic |
| Dimensions WxHxD | 50 * 109 * 81 mm |
| Weight | Approx. 0.24 kg |
| Mount | 35 mm DIN rail mounting |
