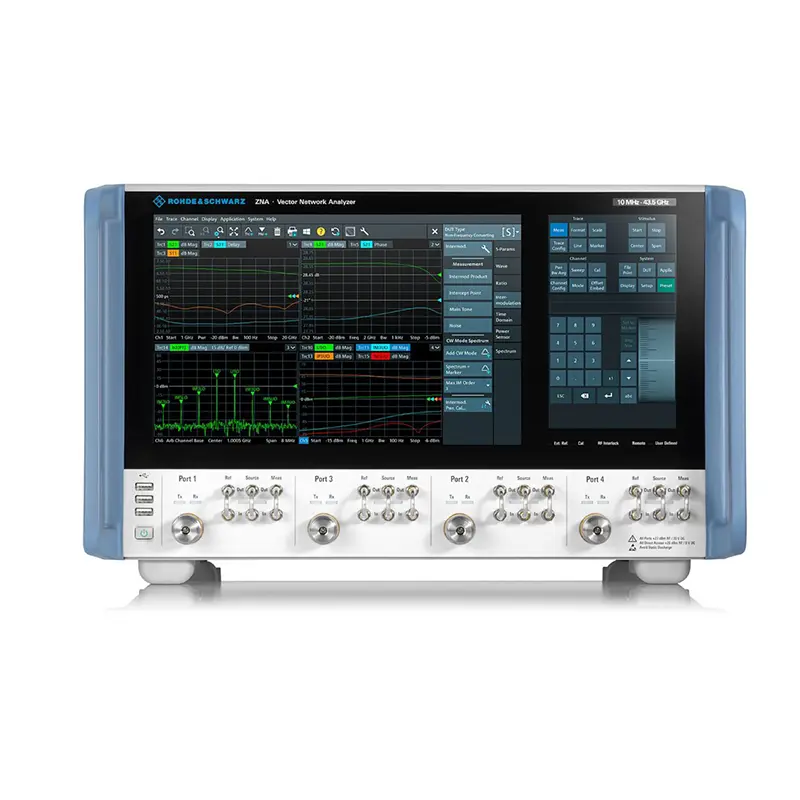

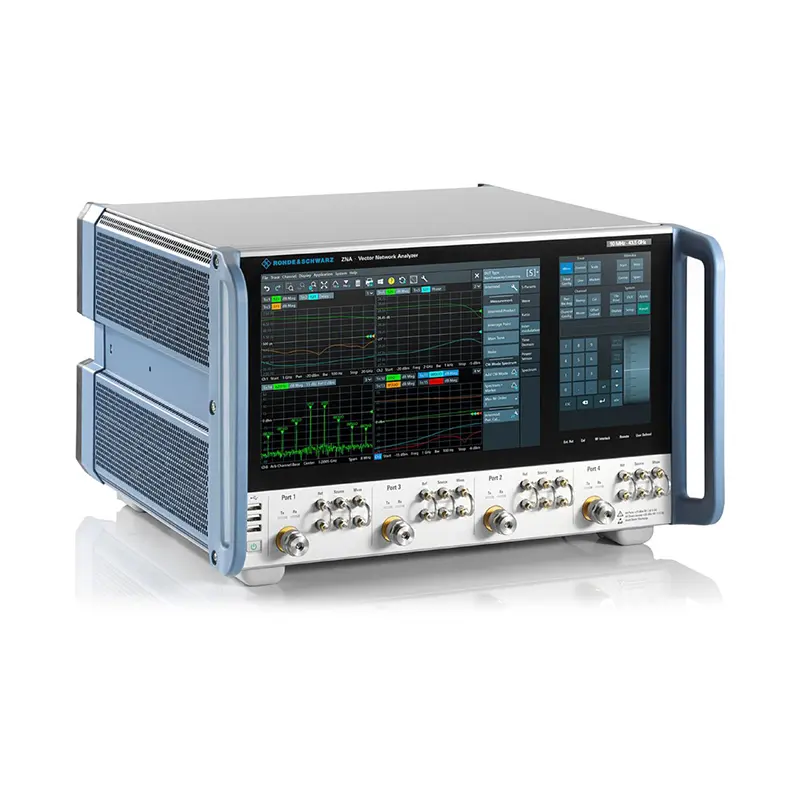

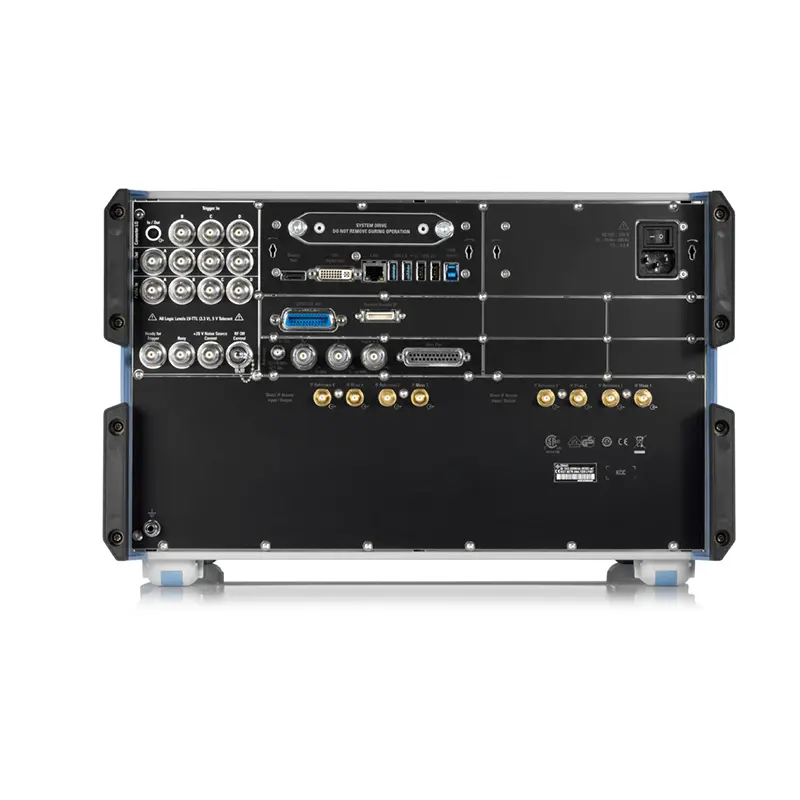

The R&S®ZNA vector network analyzers represent the premium series in the portfolio, combining a unique hardware concept, an extensive range of software features, and exceptional RF performance. With its touch-only functionality and DUT-centric methodology, the R&S®ZNA is a powerful, universal, and compact measurement tool for both passive and active device characterization.
| Key Performance | Details |
|---|---|
| Dynamic range | > 129 dB (specification, without options), 147 dB (typ., with options), up to 170 dB (maximum attainable range, allowing full 2-port correction) |
| Sensitivity | > -120 dBm (1 Hz IF bandwidth) (spec., without options), -162 dBm (1 Hz IF bandwidth) (meas., with options)¹ |
| Power sweep range | 100 dB (typ.), continuous electronic sweep range, can be shifted using mechanical step-attenuators |
| Source power linearity | 0.2 dB (typ., from -40 dBm to +10 dBm) |
| Receiver compression | 0.05 dB (typ., up to +8 dBm with reference to -10 dBm, at test port) |
| Trace noise | 0.005 dB (spec., RMS), 0.002 dB (typ., RMS) (10 GHz, 100 kHz measurement bandwidth, 0 dB reflection) |
| Speed | 10 MHz to 43.5 GHz, 500 kHz measurement bandwidth, 1601 points, 2-port calibration, sweep time: 96 ms (nom.) |
| Jitter Spectrum Analysis (JSA)¹ | Yes |
| Designation | Type | Frequency Range |
|---|---|---|
| License dongle, PC software | R&S®ZNPC | - |
| R&S®ZNA simulation | R&S®ZNXSIM-K2 | - |
| Time domain analysis (TDR) for simulation | R&S®ZNXSIM-K22 | - |
| Vector network analyzer systems | - | - |
| Vector network analyzer system, 110 GHz, 2 test ports, complete system based on R&S®ZNA67, 2-port model, standard power | R&S®ZNA67EXT | 10 MHz to 110 GHz |
| Vector network analyzer system, 110 GHz, 2 test ports, complete system based on R&S®ZNA67, 4-port model, standard power | R&S®ZNA67EXT | 10 MHz to 110 GHz |
| Vector network analyzer system, 110 GHz, 4 test ports, complete system based on R&S®ZNA67, 4-port model, standard power | R&S®ZNA67EXT | 10 MHz to 110 GHz |
| Vector network analyzer system, 110 GHz, 2 test ports, complete system based on R&S®ZNA67, 2-port model, high power | R&S®ZNA67EXT | 10 MHz to 110 GHz |
| Vector network analyzer system, 110 GHz, 4 test ports, complete system based on R&S®ZNA67, 4-port model, high power | R&S®ZNA67EXT | 10 MHz to 110 GHz |
| Vector network analyzer system, 110 GHz, 4 test ports, complete system based on R&S®ZNA67, 4-port model, high power | R&S®ZNA67EXT | 10 MHz to 110 GHz |
| Dimensions | W × H × D | EIA Rack Unit (RU) |
|---|---|---|
| Weight |
2-port models: 24 kg (52.9 lb) 4-port models: 29 kg (63.9 lb) |
6U (461.4 mm × 284.6 mm × 462.1 mm / 18.2 in × 11.2 in × 18.2 in) |
| Shipping Weight |
2-port models: 30 kg (66.2 lb) 4-port models: 35 kg (77.2 lb) |
The R&S®ZNA offers a standard dynamic range of > 129 dB without options. With options enabled, it can achieve 147 dB typical and up to 170 dB maximum attainable range, allowing for comprehensive 2-port correction.
The R&S®ZNA67EXT vector network analyzer system supports a broad frequency measurement range from 10 MHz to 110 GHz.
Yes, the system can contain up to four internal phase-coherent sources, which yields high flexibility and helps enable short sweep durations during measurement cycles.
The instrument standard size matches 6 Rack Units (EIA RU) with dimensions of 461.4 mm × 284.6 mm × 462.1 mm. The 2-port models weigh 24 kg, while the 4-port configurations weigh 29 kg.
It features highly stable raw data with trace noise specified at 0.005 dB RMS (0.002 dB RMS typical) measured at 10 GHz with a 100 kHz measurement bandwidth and 0 dB reflection.
Yes, Jitter Spectrum Analysis (JSA) is supported as part of its key performance features depending on the configured options.
