Channel Number and Power: Features 4 output channels with a maximum output power of 800W. The power limit for each channel is 200W.

Voltage and Current: Channel 1 and channel 2 output voltage range is 0V to 32V, and the current range is 0A to 20A; for channel 3 and channel 4, the output voltage range is 0V to 64V, and the current range is 0A to 10A.

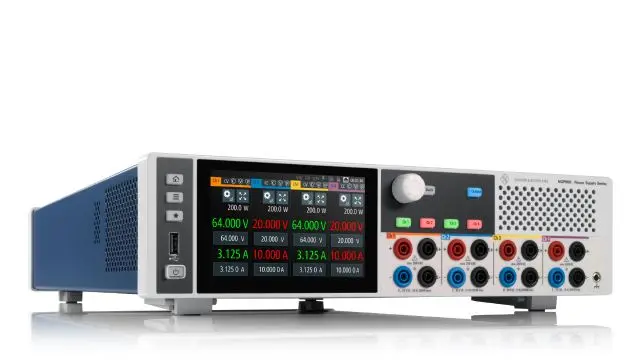

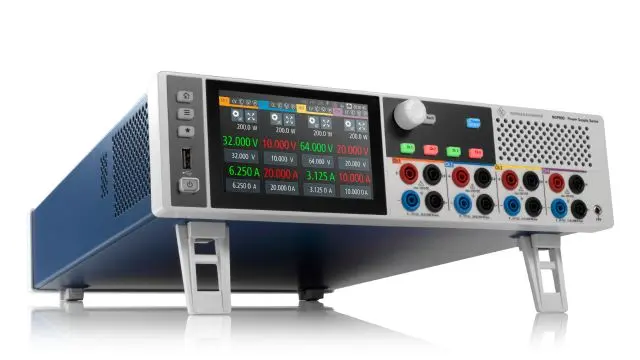

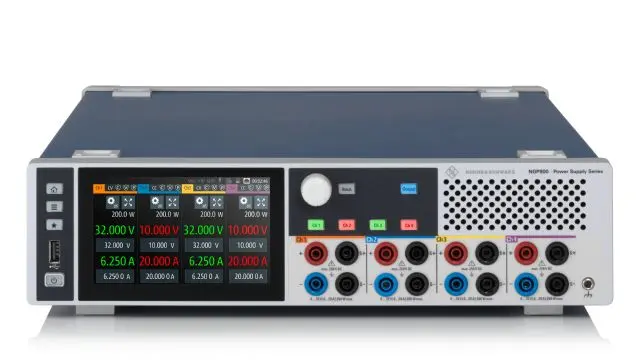

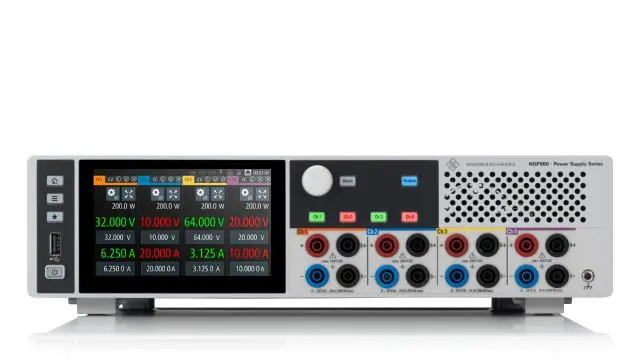

High-resolution Touchscreen: Equipped with a 5-inch high-resolution touchscreen, which makes the operation simple and intuitive. Users can quickly browse the menu to access all functions and settings, and can also use the virtual keyboard to enter values more quickly. The home screen displays information of all channels, and any channel can be selected for a more detailed view.

Built-in Measurement: Each output channel has an independent voltmeter and ammeter with a resolution of 1mV and 0.5mA respectively, displaying the minimum, maximum, and average values.

Data Recording: Records voltage and current measurement data of all channels for exporting as a .CSV file.

Arbitrary Function (QuickArb): Simulates the normal behavior of the power supply subsystem and simulates power problems to verify design. Generates voltage and current sequences with dwell times as low as 1ms.

Parallel and Serial Operation: Connect channels in series (up to 250V) or parallel (up to 80A). Tracking function synchronously adjusts voltage and current across selected channels.

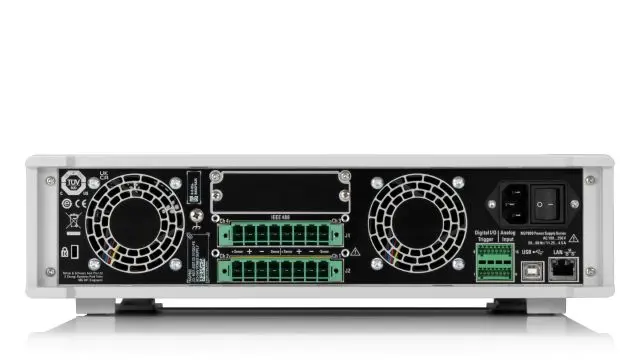

Communication Interface: Standard setup includes remote sensing terminals, USB, and LAN interfaces. Optional GPIB, digital trigger I/O, analog input, and WLAN interfaces are available for workbench or automated test systems.

Application Scope: Suitable for a variety of test and measurement scenarios, including automotive electronics, research and development, manufacturing, and general-purpose use.
