Pro-face HMI Centric ET6000 Series ET-6700WA

Maintains a streamlined profile while enhancing the visual experience

The ET6000 series offers precisely tailored functionality with seamless hardware and software compatibility, facilitating effortless upgrades. Centred on a human-machine interface design philosophy, it injects your equipment with exceptional performance and rich functionality..

Send Inquiry

Product Description

Product Overview

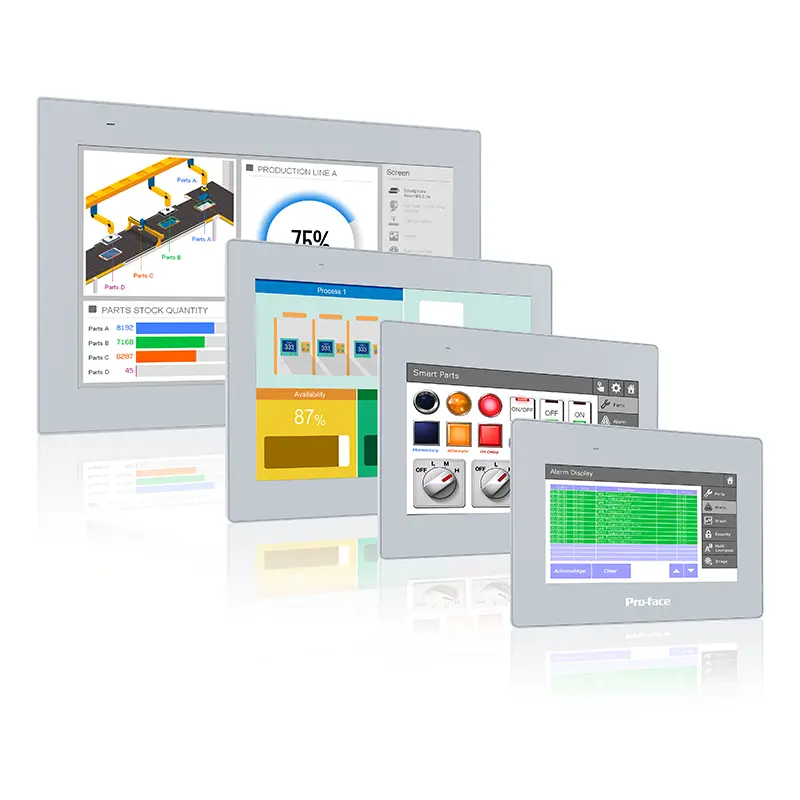

The Pro-face HMI Centric ET6000 Series ET-6700WA is an entry-level human-machine interface device designed for high-performance industrial visualization and control.

🖥️

Brilliant Display

Features a 15.6-inch wide TFT color LCD with FWXGA (1366 × 768) resolution and 16 million colors for realistic and detailed imaging.

👆

Precision Touch

Equipped with a resistive film analog touch screen (1024 × 1024 resolution) boasting a service life of over 1,000,000 touches.

🔌

Versatile Interface

Includes COM1 (RS-232C), COM2 (RS-422/485), Ethernet, USB Type-A, and USB Micro-B for seamless connectivity.

Technical Specifications

Item	Details
Model Number	ET - 6700WA (PFXET6700WAD)
Series	ET6000 Series
Display Size	15.6-inch wide
Display Resolution	1366 * 768 Pixels
Backlight	White LED (50,000+ hours life)
Application Memory	64 MB (GP-pro EX software)
Backup Memory	128 KB SRAM with replaceable battery
Input Voltage	24VDC (Range: 19.2 - 28.8VDC)
Power Consumption	18.5W or less

Environmental Adaptability

🛠️ Mechanical

Weight: 2.7kg or less
Protection: IP65 front panel (Dust and water splash resistant).

🌡️ Operating Conditions

Temperature: 0 - 50°C
Humidity: 10% - 90%RH (non-condensing).

🛡️ Reliability

Anti-interference: Comply with IEC/EN61131-2 standards.
Electrostatic Discharge: 6kV (contact), 8kV (air).

Delivery & Resources

Delivery information typically includes standard shipping methods and protective packaging, which may vary depending on the purchase location.

Pro-face HMI Centric ET6000 Series ET-6700WA Datasheet.pdf

Technical documentation and resource file.

Download PDF

Frequently Asked Questions

What is the screen size and resolution of the ET-6700WA?

The ET-6700WA features a 15.6-inch wide TFT color LCD with a resolution of 1366 x 768 pixels (FWXGA).

What is the expected lifespan of the backlight?

The white LED backlight has a service life of 50,000 hours or more under specific operating conditions.

Can the brightness be adjusted?

Yes, it supports 16-level brightness adjustment, which can be controlled via the touch panel or software.

What is the protection rating of the device?

The front-side of the unit has a protection level of IP65, providing effective resistance against dust and water splashing.

What power supply is required for this HMI?

The device requires a rated input voltage of 24VDC, with an acceptable range of 19.2 to 28.8VDC.

How much application memory is available?

When using GP-pro EX software, it provides 64MB of application memory, including space for user fonts and logic programs.
