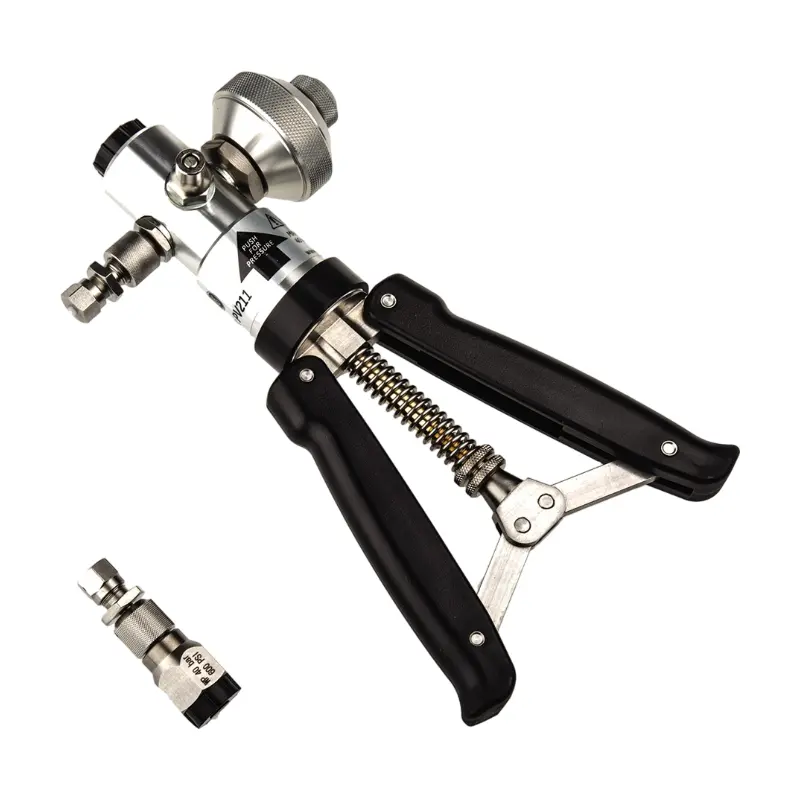

Custom Druck PV211-P Pneumatic Pressure Calibration Pump Manufacturers, Product
Custom Druck PV211-P Pneumatic Pressure Calibration Pump Manufacturers, Product
1 / 2
Custom Druck PV211-P Pneumatic Pressure Calibration Pump Manufacturers, Product
Custom Druck PV211-P Pneumatic Pressure Calibration Pump Manufacturers, Product

Custom Druck PV211-P Pneumatic Pressure Calibration Pump Manufacturers, Product

  • Pressures to 0 to 40 bar (600 psi)
  • Vacuum to 0 to -900 mbar (28.5 inHg)
  • High pneumatic pressure generation with minimal effort
  • Precision vernier control - The field proven PV211 is a lightweight yet high quality combined pressure and vacuum hand pump. The PV211 has been designed to provide maximum pneumatic pressures efficiently and effortlessly.
  • Dual source of pneumatic pressure and vacuum
  • Built-in fine adjust vernier
  • Needle valve provides controlled pressure release
  • Selector valve for vacuum or pressure generation
  • Comfortable, ergonomically designed moulded handles
  • Adjustable stroke
  • Extremely efficient - only four strokes to 7 bar (100 psi)
Send Inquiry

Product Description

Product Overview
The Druck PV211-P pneumatic pressure calibration pump is a high-quality, lightweight hand-operated device used for generating pressure and vacuum. Designed as a field-proven combined pressure and vacuum hand pump, it efficiently and effortlessly provides maximum pneumatic pressure and serves as a portable pressure comparator in conjunction with various pressure-indicating devices.
Key Specifications
  • Pressure Range: Generates pressure from 0 to 40 bar (0 to 600 psi) and vacuum from 0 to -900 mbar (0 to 28.5 inHg).
  • Accuracy Control: Precision vernier control for accurate pressure adjustments with standard adjustable over-pressure protection.
  • Connection Interface: Equipped with a standard 1/4 NPT connection interface.
  • Included Hose: Includes a 0.6m (3ft) long, 1/8 in diameter nylon hose for flexible device connections.
  • Lightweight Design: Weighs only 453.6 g, making it highly portable for on-site calibration.
Key Features
  • Dual-Source Capability: Easily switch between vacuum and pressure generation with a built-in selector valve.
  • Pressure Release Mechanism: Needle valve provides controlled and adjustable pressure release rates.
  • Ergonomic Design: Molded handles create comfort, ease of use, and reduce operator fatigue.
  • High Efficiency: Adjustable stroke requires only four strokes to reach 7 bar (100 psi).
  • Optional Accessories: Hard-carrying protective case and a 6-piece NPT adapter set (4 female, 2 male) are available.
Technical Specifications
Parameter Specific Details
Model Druck PV211-P Pneumatic Pressure Calibration Pump
Product Type Hand-operated combined pressure & vacuum calibration pump (portable, field-proven)
Pressure Range 0 – 40 bar (0 – 600 psi); Vacuum range: 0 – -900 mbar (0 – 28.5 inHg)
Pressure Control Precision vernier control for accurate pressure adjustment; adjustable over-pressure protection system (standard)
Pressure Release Equipped with a needle valve for controlled pressure release (adjustable release rate)
Connection Interface Pressure connection: 1/4 NPT (universal for easy device pairing)
Included Hose 0.6m (3ft) long nylon hose, 1/8 in diameter (offers flexibility in use)
Weight 453.6 g (1 lb) – lightweight for portable on-site calibration
Core Design Features Dual-source (pressure + vacuum) with selector valve; adjustable pump stroke; ergonomically moulded handle
Operational Efficiency Highly efficient: only 4 strokes to reach 7 bar (100 psi)
Housing & Durability Robust construction suitable for field and industrial environments
Optional Accessories Accessory kit: Hard carrying case with custom foam + 6-piece NPT adapter set (4 female: 1/8, 1/4, 3/8, 1/2 in; 2 male: 1/8, 1/4 in)
Key Applications On-site pressure instrument calibration, pressure/vacuum testing, pairing with pressure indicators/calibrators for industrial process verification
Model & Package Information
Model Variant
Standard Model:
Druck PV211-P Pneumatic Pressure Calibration Pump
Packaging Details
Dimensions:
220mm × 105mm × 63mm
Package Weight:
650g
Note: Delivery times, shipping methods, and packaging details vary based on regional availability and seller options.
Manuals & Resources
Druck PV211-P Datasheet Thumbnail
Druck PV211-P Pneumatic Pressure Calibration Pump datasheet.pdf
Document Available
Frequently Asked Questions
What is the pressure and vacuum generation range of the Druck PV211-P?
The Druck PV211-P pump can generate a pneumatic pressure range from 0 to 40 bar (0 to 600 psi) and a vacuum range from 0 to -900 mbar (0 to 28.5 inHg).
How efficient is the pump stroke of the PV211-P?
The pump stroke is fully adjustable and highly efficient, requiring only four strokes to reach a pressure of 7 bar (100 psi).
What safety mechanisms are built into the pump?
It features an adjustable over-pressure protection system as standard to ensure operation safety, alongside a needle valve for controlled, adjustable pressure release.
What connection interface does the pump use?
The pump uses a standard 1/4 NPT connection interface, making it easily compatible with various pressure devices and calibration setups.
Is the Druck PV211-P lightweight enough for field use?
Yes, the pump is designed for field portability. It weighs only 453.6 g (1 lb) and features ergonomically molded handles to enhance comfort and reduce fatigue during on-site calibration.
What is included in the optional accessory kit?
The optional kit includes a protective hard-carrying case with custom foam cutouts and a 6-piece NPT adapter set containing 4 female adapters (1/8, 1/4, 3/8, and 1/2 inch) and 2 male adapters (1/8 and 1/4 inch).
