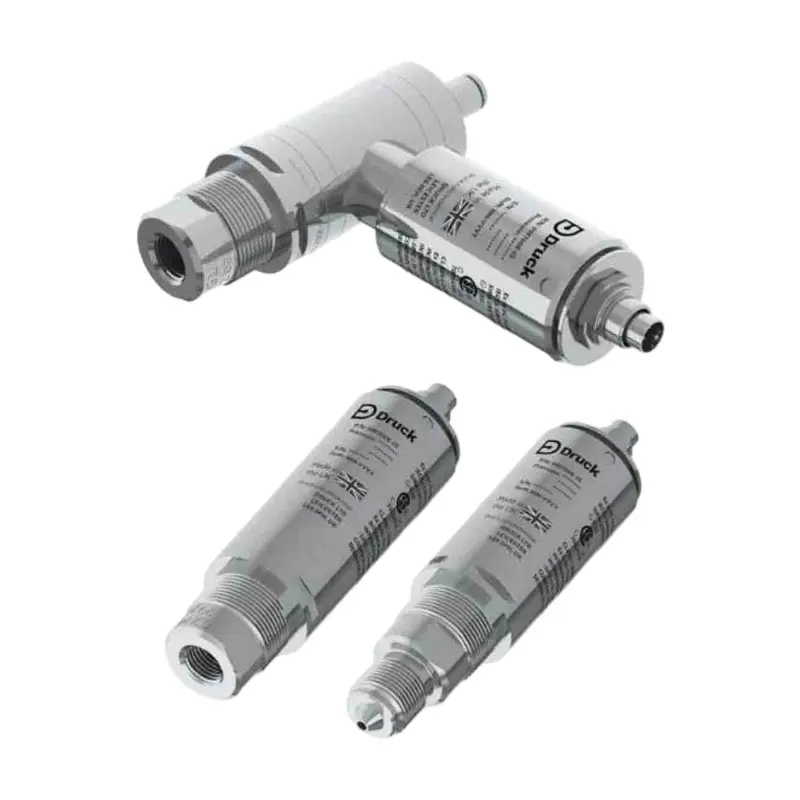

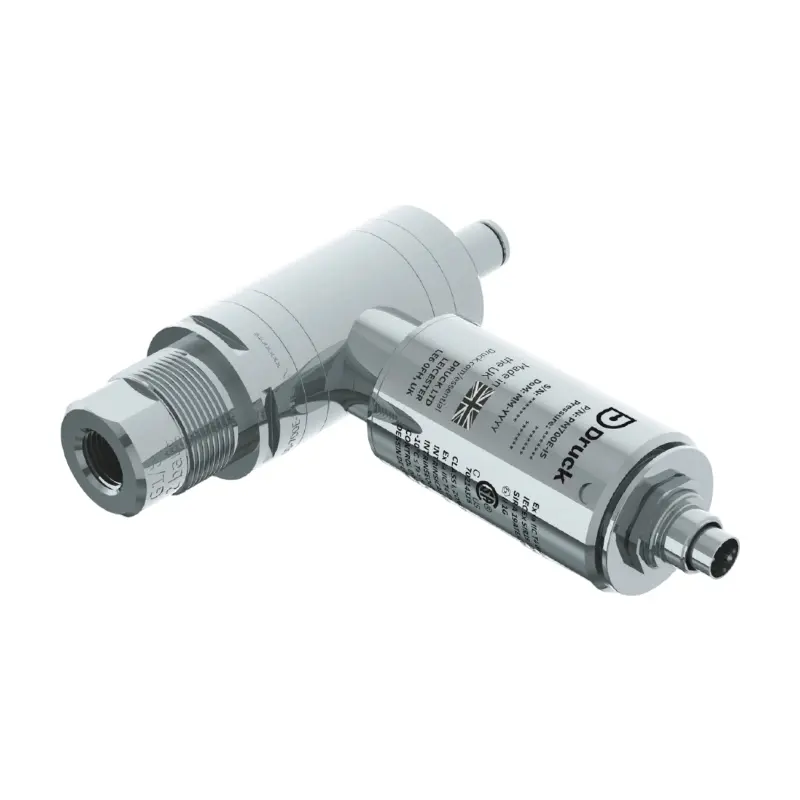

The Druck PM700E (2MPa) is a high-precision industrial pressure sensor, offering 0â€“2MPa (0â€“20 bar) gauge/absolute measurement with Â±0.05% FS typical accuracy and â‰¤Â±0.01% FS/year stability. It features configurable 4â€“20mA/HART/MODBUS outputs, 316L stainless steel wetted parts, IP67 protection, and -40Â°C to +125Â°C operating temperature, ideal for rugged process industries like oil & gas, petrochemicals, and power generation.

Send Inquiry

Product Description

Overview
Specifications
Models
Delivery Information
Manuals + resource

The Druck PM700E (2MPa) is a high-precision, industrial-grade pressure sensor designed for reliable pressure measurement in harsh environments. It belongs to Druck’s PM700E series, known for stability and accuracy in industrial and process applications.

Core Product Overview

It is a rugged pressure sensing solution optimized for 2MPa (20 bar) pressure ranges, suitable for both gas and liquid media compatible with its wetted materials. The sensor integrates advanced MEMS technology and robust packaging, balancing precision with durability for long-term field use.

Key Technical Specifications

▸
Pressure Range: 0–2MPa (0–20 bar) (gauge/absolute pressure options available).
▸
Measurement Accuracy: Up to ±0.05% full scale (FS) typical, with ±0.1% FS maximum over a wide temperature range.
▸
Wetted Materials: Standard options include 316L stainless steel (isolator), ensuring compatibility with most industrial media.
▸
Output Signals: Configurable analog outputs (4–20mA, 0–10V) or digital outputs (HART, MODBUS RTU) for seamless system integration.
▸
Operating Temperature: -40°C to +125°C, maintaining accuracy across extreme environmental conditions.

Performance & Design Advantages

▸
Stability: Low drift (≤±0.01% FS/year) ensures long-term reliability without frequent recalibration.
▸
Rugged Construction: IP67/IP68 protection rating (depending on configuration) for dust, water, and moisture resistance.
▸
Pressure Handling: Overpressure capacity up to 5× full scale, preventing damage from sudden pressure spikes.
▸
Installation Flexibility: Compact design with multiple process connections (G1/2, 1/4 NPT, etc.) and mounting options (inline, bracket).

Power Supply & Environmental Adaptability

▸
Power Requirements: 10–30 VDC (for 4–20mA output); low power consumption for remote or battery-powered applications.
▸
Vibration & Shock Resistance: Compliant with IEC 60068 standards, suitable for industrial machinery and mobile equipment.
▸
EMC Compliance: Meets EN 61326 for electromagnetic compatibility, avoiding interference with other system components.

Typical Applications

Widely used in process industries such as oil & gas, petrochemicals, power generation, and water treatment. It is ideal for measuring pressure in pipelines, tanks, pumps, and hydraulic/pneumatic systems, as well as in test benches and industrial automation setups.

Parameter	Details
Model	PM700E (2MPa Range)
Pressure Type	Gauge (G) or Absolute (A) (configurable)
Pressure Range	0 – 2MPa (0 – 20 bar)
Measurement Accuracy (Typical)	±0.05% Full Scale (FS)
Measurement Accuracy (Maximum)	±0.1% Full Scale (FS)
Long-Term Stability	≤±0.01% FS/year
Operating Temperature Range	-40°C to +125°C
Wetted Materials	316L stainless steel (isolator); FKM/Viton® seals (standard)
Output Signals	Analog: 4–20mA (2-wire), 0–10V (3-wire); Digital: HART 7, MODBUS RTU
Power Supply	10–30 VDC (for 4–20mA output); 12–30 VDC (for 0–10V/MODBUS)
Overpressure Capacity	Up to 5× Full Scale (10MPa max)
Protection Rating	IP67 (standard); IP68 (optional, submersible)
Process Connections	G1/2 BSPP, 1/4 NPT, M12×1.5 (standard options)
Mounting Style	Inline, bracket-mounted, or panel-mounted
Vibration Resistance	IEC 60068-2-6: 10g (10–2000Hz)
Shock Resistance	IEC 60068-2-27: 100g (11ms half-sine)
EMC Compliance	EN 61326-1:2013 (industrial environment)
Pressure Units	Configurable: MPa, bar, psi, Pa, kPa, mmHg, inHg, atm, etc.
Housing Material	Anodized aluminum (standard); Stainless steel (optional)
Weight	Approximately 180g (aluminum housing, standard configuration)
Certifications	CE, ATEX (optional for explosive environments), IECEx (optional)

Models: Druck PM700E(2MPA) Pressure sensor

Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Druck PM700E(2MPA) Pressure sensor datasheet.pdf

Download

Frequently Asked Questions (FAQ)

What is the pressure range of the Druck PM700E (2MPa) sensor?

The Druck PM700E features a pressure range from 0 to 2MPa (equivalent to 0 to 20 bar), and it is configurable for both gauge and absolute pressure measurements.

What level of measurement accuracy does the PM700E offer?

It offers a typical measurement accuracy of up to ±0.05% Full Scale (FS), with a maximum limits specification of ±0.1% FS over a wide operating temperature range.

Is the Druck PM700E suitable for harsh outdoor conditions?

Yes. Built with standard IP67 (optional IP68 submersible) protection rating and configured with 316L stainless steel wetted parts, the sensor operates reliably in extreme temperatures ranging from -40°C to +125°C.

What output signal options are available?

The PM700E supports versatile configuration options including analog signals (4–20mA, 0–10V) and digital protocols (HART 7 and MODBUS RTU) to ensure smooth integration with standard industrial control systems.

How does the sensor handle sudden overpressure spikes?

The sensor possesses an outstanding overpressure capacity of up to 5 times the full scale (maximum 10MPa limit), preventing internal mechanical damage from system pressure surges.

What industries and systems typically use the PM700E pressure sensor?

It is commonly implemented across the process industries such as oil and gas, petrochemicals, power generation, and water management. It is ideal for monitoring pipelines, storage tanks, pumps, hydraulic circuits, and automation test benches.
