The built-in R&S® FSWP sources allow measurement of extremely sensitive oscillators like DROs and OCXOs with a smallest number of cross correlations, cutting down significant time. Adding hardware-sped signal processing to the R&S® FSWP phase noise analyzer allows instantaneous phase noise measurements. Brief measurement duration is key since it accelerates the development to production process while raising production throughput.
Almost no signal generator on the market can match the R&S® FSWP internal local oscillator's phase-noise performance. A high-quality oscillator can be measured with only a few correlations because of the inherent low-noise analyzer sources. The quickest measuring times are made possible by this.
To assess EVM or pulse characteristics in several measurement channels, users can analyze the spectrum and demodulate the signal. Because they don't need to buy a separate spectrum analyzer or vector signal analyzer, designers of automatic test systems save money and space. An investment that is future-proof is the R&S® FSWP. It is based on the high-end R&S® FSW, which has a high sensitivity and distinctive RF performance.
| Parameter | Specification Details |
|---|---|
| Display | 30.7 cm (12.1"), WXGA color touchscreen |
| Resolution | 1280 × 800 pixel (WXGA resolution) |
| Pixel failure rate | < 1 × 10⁻⁵ |
| Data storage - Internal - standard | solid-state drive ≥ 128 Gbyte |
| Data storage - External | supports USB 2.0 compatible memory devices |
| Temperature - Operating temperature range | +5 °C to +50 °C |
| Temperature - Permissible temperature range | 0 °C to +55 °C |
| Temperature - Storage temperature range | -40 °C to +70 °C |
| Temperature - Climatic loading - without condensation | +40 °C at 90 % rel. humidity, in line with EN 60068-2-30 |
| Altitude - Maximum operating altitude - above sea level | 4600 m (approx. 15100 ft) |
| Mechanical resistance - Vibration (Sinusoidal) | 5 Hz to 55 Hz, displacement: 0.15 mm constant, amplitude (1.8 g at 55 Hz), 55 Hz to 150 Hz, acceleration: 0.5 g constant, in line with EN 60068-2-6 |
| Mechanical resistance - Vibration (Random) | 8 Hz to 500 Hz, acceleration 1.2 g (RMS), in line with EN 60068-2-64 |
| Mechanical resistance - Shock | 40 g shock spectrum, in line with MIL-STD-810E, method no. 516.4, procedure I, MIL-PRF-28800F, class 3 |
| Models | Frequency range | Phase noise | Max. analysis bandwidth | Instrument type |
|---|---|---|---|---|
| R&S® FSWP8 | 1 MHz - 8 GHz | < -166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) | 320 MHz | Phase noise analyzer and VCO tester |
| R&S® FSWP26 | 1 MHz - 26.5 GHz | < -166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) | 320 MHz | Phase noise analyzer and VCO tester |
| R&S® FSWP50 | 1 MHz - 50 GHz | < -166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) | 320 MHz | Phase noise analyzer and VCO tester |

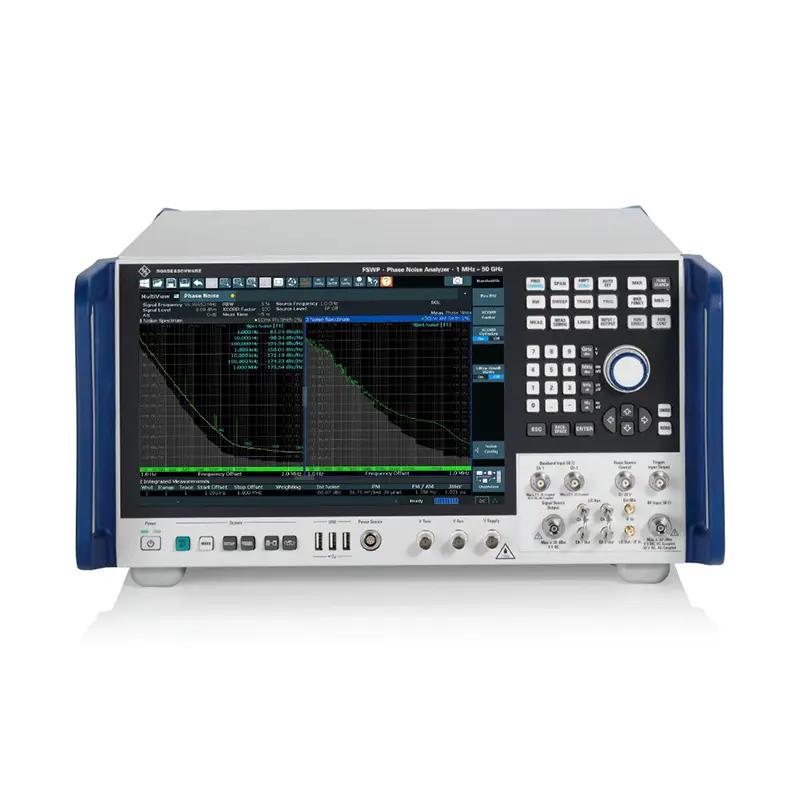

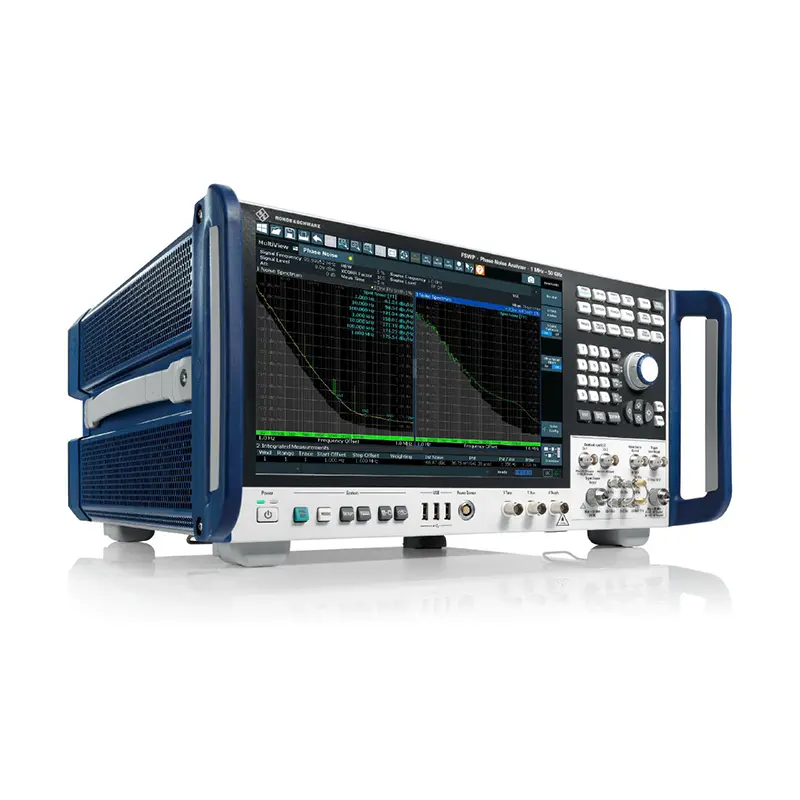

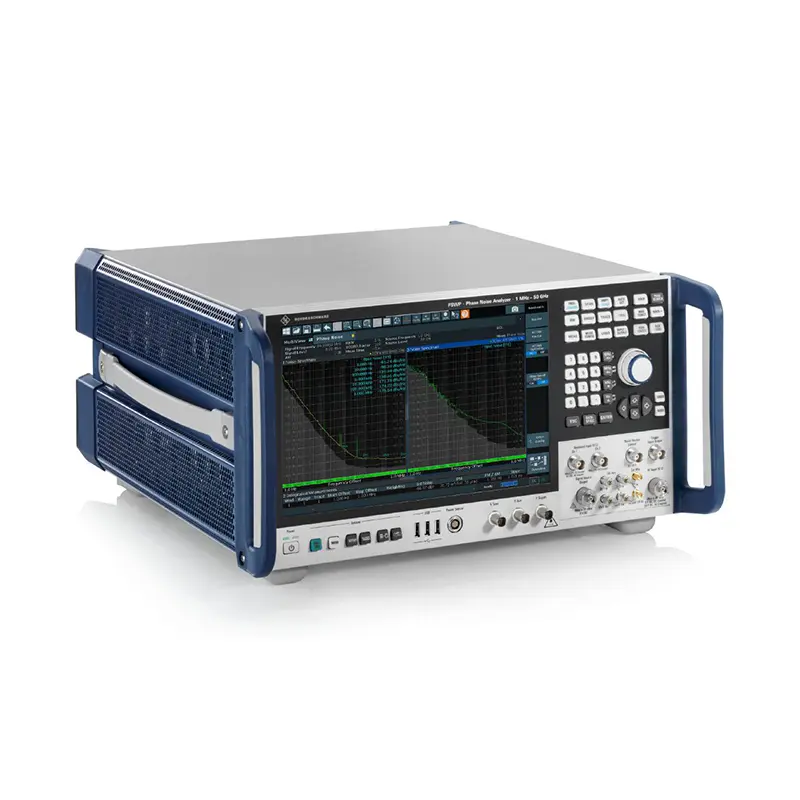

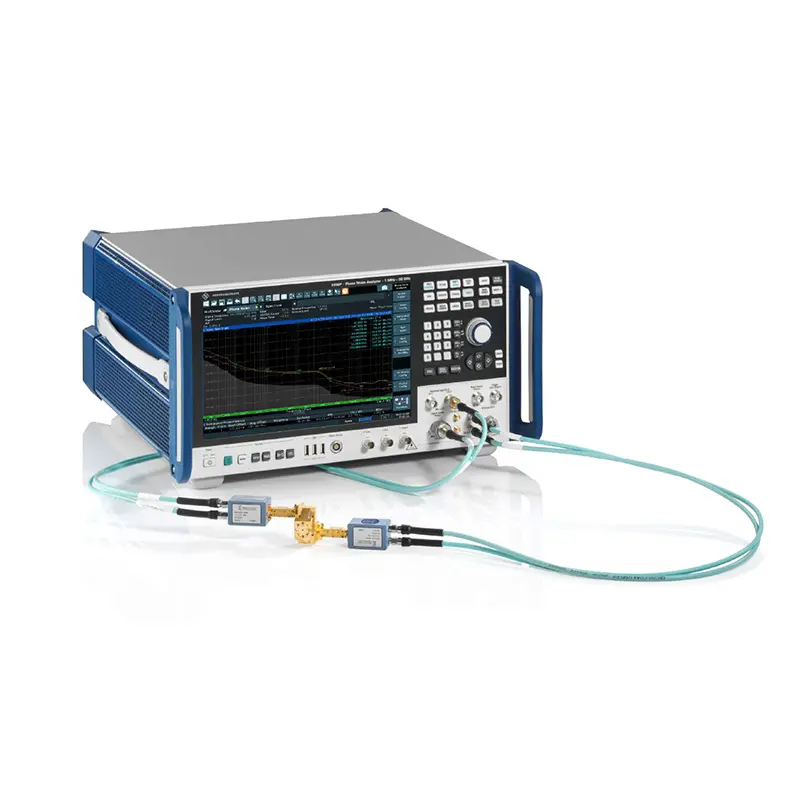

Phase noise of R&S® FSWPA phase noise analyzer and VCO tester
The R&S® FSWP features built-in low-noise sources that allow measurement of highly sensitive oscillators (like DROs and OCXOs) with a minimal number of cross-correlations, paired with hardware-sped signal processing for instantaneous measurements.
Yes. The R&S® FSWP functions as an all-in-one high-end signal, spectrum, and phase noise analyzer. This allows users to analyze spectrum and demodulate signals for EVM or pulse testing without purchasing separate hardware.
The series offers three primary frequency range options: R&S® FSWP8 operates from 1 MHz to 8 GHz, R&S® FSWP26 covers 1 MHz to 26.5 GHz, and R&S® FSWP50 spans 1 MHz to 50 GHz.
The instrument is equipped with a 30.7 cm (12.1-inch) WXGA color touchscreen offering a crisp resolution of 1280 × 800 pixels.
The normal operating temperature range of the unit is +5 °C to +50 °C, with a storage temperature tolerance of -40 °C to +70 °C.
Weight varies by options and frequency model: the R&S® FSWP8 starts at 20.6 kg with minimum options, while the fully-equipped R&S® FSWP50 weighs up to 24.5 kg.
