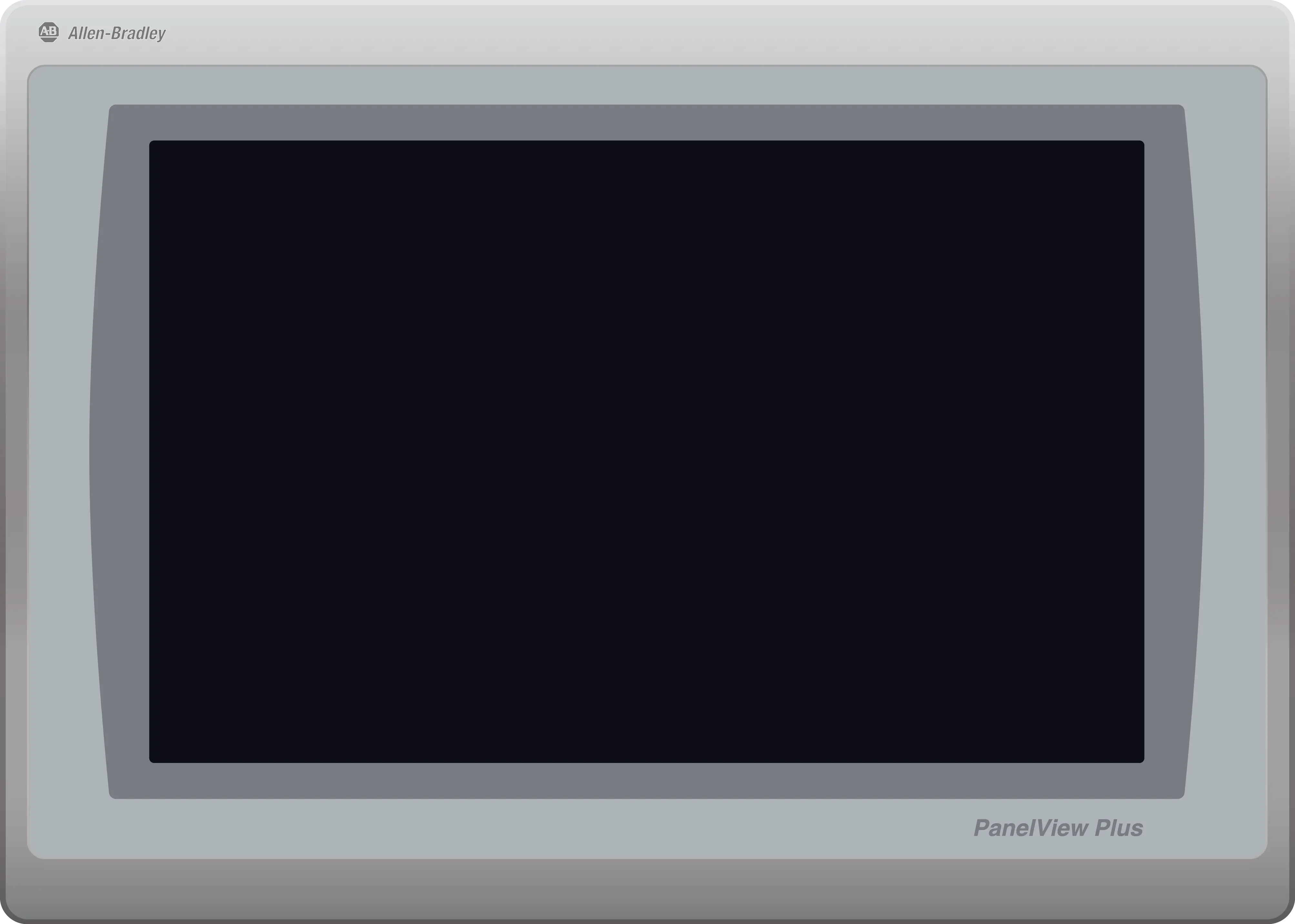

Custom Rockwell PanelView Plus 7 Graphic Terminal 2711P-T12W22D9P Suppliers, Product
2711P-T12W22D9P is a high-performance graphic terminal in Rockwell Automation's PanelView Plus 7 series—the flagship line of human-machine interfaces (HMIs) for industrial control systems. It serves as a critical bridge between operators and machinery, enabling real-time monitoring, parameter adjustment, and troubleshooting of automated processes while seamlessly integrating with Rockwell Logix controllers and other industrial equipment.
2711P-T12W22D9P is a high-performance graphic terminal in Rockwell Automation's PanelView Plus 7 series—the flagship line of human-machine interfaces (HMIs) for industrial control systems. It serves as a critical bridge between operators and machinery, enabling real-time monitoring, parameter adjustment, and troubleshooting of automated processes while seamlessly integrating with Rockwell Logix controllers and other industrial equipment.
Core Attributes & Compatibility
Brand & Series: Part of Rockwell Automation's PanelView Plus 7 family, featuring enhanced processing power and connectivity.
Lifecycle Status: Active, ensuring long-term availability for new installations and replacements.
System Compatibility: Natively integrates with Rockwell ControlLogix (CLX), CompactLogix, Micro800, and SLC 500 controllers via EtherNet/IP. Supports Modbus TCP/IP for multi-vendor systems.
Core Features & Advantages
Intuitive HMI Design: Compatible with FactoryTalk View Studio for creating dynamic graphics, alarm logs, and trend charts.
High Reliability: Industrial-grade shock and vibration resistance per IEC 60068 with IP65 front panel protection.
Data Integration: Supports data logging to local storage or enterprise systems like FactoryTalk AssetCentre.
100–240 V AC (50/60 Hz, wide input range for global use)
Typical Power Consumption
Approximately 30 W
Operating Temperature Range
0°C to 55°C (32°F to 131°F)
Storage Temperature Range
-20°C to 70°C (-4°F to 158°F)
Protection Rating (Front Panel)
IP65 (dust-tight; protected against low-pressure water jets from any direction)
Mechanical Compliance
Shock and vibration resistance per IEC 60068 standards
Software Compatibility
FactoryTalk View Studio (for HMI interface design, configuration)
Key Features
Password-protected access; Data logging; Network redundancy support; Dynamic graphics/trend charts
Mounting Type
Panel mount (standard industrial HMI mounting design)
Typical Applications
Manufacturing lines, process industries (chemical/oil & gas), packaging machinery, machine tool control
Model Information
Models: Rockwell PanelView Plus 7 Graphic Terminal 2711P-T12W22D9P
Delivery & Physical Specifications
Dimensions
320 * 215 * 85 mm
Weight
2.7 kg
Battery Parameters
Without battery
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
Manuals + Resources
📄
Rockwell PanelView Plus 7 Graphic Terminal 2711P-T12W22D9P datasheet.pdf
Download Available
Frequently Asked Questions
What are the display specifications of the 2711P-T12W22D9P?
The terminal features a 12-inch color resistive touchscreen display with WXGA resolution (1280 x 800 pixels). It offers a typical brightness of 400 nits and a backlight lifespan of up to 50,000 hours of continuous operation.
Which protocols and control systems are compatible with this HMI?
It natively supports the EtherNet/IP protocol for seamless integration with Rockwell ControlLogix, CompactLogix, Micro800, and SLC 500 controllers. Additionally, it supports Modbus TCP/IP for communicating with third-party automation components.
What is the environmental protection rating for the device?
The front panel of the 2711P-T12W22D9P holds an IP65 protection rating, which ensures it is completely dust-tight and resistant to low-pressure water jets. The unit is also built to resist industrial shock and vibrations according to IEC 60068 standards.
Does this terminal support network redundancy?
Yes, it features dual 10/100/1000 Mbps EtherNet/IP communication ports that support network redundancy, helping to maintain uninterrupted communication with your control systems during link failures.
What configuration software is required for user interface design?
The HMI terminal is configured using Rockwell's FactoryTalk View Studio software. This enables operators to construct custom screens with dynamic graphics, run real-time trend charts, manage alarm databases, and build custom recipes.
What are the physical dimensions and weight of this terminal?
The 2711P-T12W22D9P terminal has dimensions of 320 x 215 x 85 mm and weighs approximately 2.7 kg. It is designed for standard industrial panel mounting and operates without a battery.
