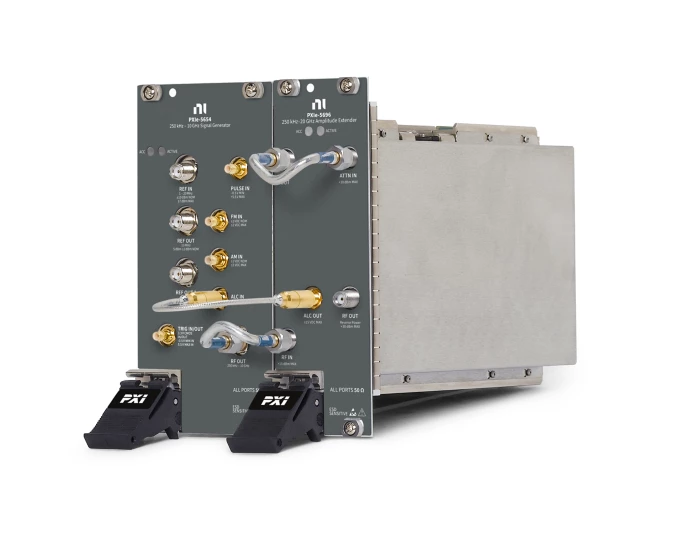

Custom NI PXIe-5654 Supplier, Exporter

PXIe, 250 kHz to 20 GHz, PXI RF Analog Signal Generator

Send Inquiry

Product Description

Overview

Specifications

Models

Delivery Information

Manuals + resources

▪ The PXIe-5654 combines outstanding frequency tuning time with phase noise. Applications like blocker test/receiver desensitization, high-performance intermodulation distortion tests, and other electronic warfare applications are covered by these features.

▪ The PXIe-5654 is made to handle the demanding needs of radar applications, satellite testing, and RFIC characterisation.

▪ A PXIe-5696 Amplitude Extender Module is one of the PXIe-5654 choices. The PXIe-5696 has an expanded amplitude range of up to 27 dBm and a frequency range of 250 kHz to 20 GHz.

Frequency
Range	250 kHz to 20 GHz
Resolution	0.001 Hz
Accuracy	Refer to the Reference Clock section.
Reference Clock
Internal Clock
Initial accuracy	±0.1 ppm, maximum
Temperature (15 °C to 35 °C)	±0.2 ppm, maximum
Aging (per day, after 30 days)	±0.01 ppm, maximum
Aging (over 10 years)	±1.25 ppm, maximum
Internal Reference Output 1
Connector name	REF OUT
Frequency	10 MHz
Amplitude	+5 dBm ± 2 dB
Coupling	AC
Output impedance	50 Ω
Internal Reference Output 2
Connector name	REF OUT 2
Frequency	100 MHz
Amplitude	+5 dBm ± 2 dB
Coupling	AC
Output impedance	50 Ω
External Reference Input
Connector name	REF IN
Frequency	1 MHz to 20 MHz in 1 MHz steps
Amplitude	-10 dBm to +10 dBm
Input impedance	50 Ω
Lock time to external reference	< 2 s

Frequency	Nonharmonic Spurs (dBc)
Typical Nonharmonic Spurs
Frequency	PXIe-5654	PXIe-5654 with PXIe-5696
250 kHz to < 8 GHz	-65	-65
8 GHz to < 10 GHz	-60	-60
10 GHz to 20 GHz	-60	-55
Nominal Minimum Power (dBm)
Frequency	PXIe-5654	PXIe-5654 with PXIe-5696
250 kHz to < 250 MHz	-10	-110
250 MHz to < 2 GHz	-7	-110
2 GHz to < 18 GHz	-7	-110
18 GHz to 20 GHz	-7	-110
Resolution	0.01 dB	-

PXIe-5654 RF signal generator
Size	3U, three slot, PXI Express module 6.1 cm x 13.0 cm x 21.4 cm (2.4 in. x 5.1 in. x 8.4 in.)
Weight	1,328 g (46.8 oz)
PXIe-5696 amplitude extender
Size	3U, two slot, PXI Express module 4.1 cm x 13.0 cm x 21.4 cm (1.6 in. x 5.1 in. x 8.4 in.)
Weight	894 g (31.5 oz)

NI PXIe-5654 Resources

NI pxie-5654_specifications.pdf

Download File

Frequently Asked Questions

Q: What is the frequency range of the PXIe-5654?

The basic frequency range of the PXIe-5654 is from 250 kHz to 20 GHz. When combined with the optional PXIe-5696 Amplitude Extender Module, it offers a frequency range of 250 kHz to 20 GHz with an expanded amplitude range of up to 27 dBm.

Q: What applications is the PXIe-5654 designed for?

It is designed to handle demanding electronic warfare, radar, satellite testing, receiver desensitization/blocker tests, high-performance intermodulation distortion tests, and RFIC characterization applications.

Q: What are the physical dimensions and weight of the PXIe-5654 module?

The PXIe-5654 is a 3U, three-slot PXI Express module with dimensions of 6.1 cm x 13.0 cm x 21.4 cm (2.4 in. x 5.1 in. x 8.4 in.) and it weighs approximately 1,328 g (46.8 oz).

Q: How does the PXIe-5696 Amplitude Extender affect the minimum power output?

Adding the PXIe-5696 module significantly extends the nominal minimum power of the PXIe-5654, allowing it to reach minimum levels as low as -110 dBm across various frequency ranges, compared to the standard module's limit of -7 dBm or -10 dBm.

Q: What is the output impedance for the reference outputs on the PXIe-5654?

Both Internal Reference Output 1 (REF OUT, 10 MHz) and Internal Reference Output 2 (REF OUT 2, 100 MHz) feature AC coupling with an output impedance of 50 Ω.
