The Megger Insulation Resistance Tester MIT515/2 is a reliable instrument for insulation testing of electrical equipment in industrial and power supply environments. Here's an overview:
Insulation resistance testing range up to 10 TΩ, with ±5% accuracy up to 1 TΩ and ±20% accuracy up to 10 TΩ at 5 kV.
Includes a variety of industry-standard test functions, including insulation resistance (IR), insulation resistance versus time (IR(t)), polarization index (PI), dielectric absorption ratio (DAR), and PI prediction (PIP).
User-definable test voltages from 40 V to 1 kV in 10 V steps, and from 1 kV to 5 kV in 25 V steps.
A fast-charging lithium-ion battery provides up to 6 hours of continuous testing on a single charge. A 30-minute quick charge provides 1 hour of operation, and AC power is also available when needed. High safety performance: CAT IV 600V safety rating at altitudes up to 3000 meters. Its dual-shell design provides IP65 protection against dust and moisture.
Includes a 3-meter medium-insulated test lead.
| Parameter | Specification |
|---|---|
| Insulation Resistance | |
| Measurement Range | Digital: 10 kΩ - 10 TΩ; Analog: 100 kΩ - 10 TΩ |
| Test Voltage | Fixed: 250 V, 500 V, 1000 V, 2500 V, 5000 V DC. User - Defined: 100 V - 1 kV (in 10 V steps); 1 kV - 5 kV (in 25 V steps) |
| Accuracy (23°C) | ±5% of reading (up to 1 TΩ); ±20% of reading (1 TΩ - 10 TΩ) |
| Voltage Output Accuracy (0°C - 30°C) | +4% / -0% ±10 V of nominal test voltage at 1 GΩ load |
| Capacitance (above 500 V) | |
| Measurement Range | 10 nF - 25 μF (dependent on measurement voltage) |
| Accuracy (23°C) | ±10% ±5 nF |
| Current Measurement | |
| Range | 0.01 nA - 6 mA |
| Accuracy | ±5% ±0.2 nA at all voltages |
| Voltmeter | |
| Range | 30 - 660 V ac or dc, 50/60 Hz |
| Accuracy | ±3% ±3 V |
| Operational Info | |
| Timer Range | 15 seconds - 99 minutes |
| Memory Capacity | 5.5 hours of continuous logging (5 - second intervals); 33 logged PI tests; 350 logged IR tests |
| Safety Rating | CAT IV 600 V (below 3000 m altitude) |
| Protection Class | IP65 (per IEC 60529; dust - tight, water jet resistant) |
| Operating Temperature | -20°C - +50°C |
| Storage Temperature | -25°C - +70°C |
| Power Supply | |
| Battery Type | 11.1 V, 5.2 Ah lithium - ion (complies with IEC 62133:2003) |
| Battery Life | Up to 6 hours continuous operation (at 5 kV, 100 MΩ load) |
| Charging Time | 2.5 hours (full charge); 30 minutes (quick charge for 1 hour operation) |
| AC Power Input | 85 V - 265 V eff, 50/60 Hz, 60 VA |
| Physical Dimensions | |
| Dimensions (L × W × H) | 315 mm × 285 mm × 181 mm |
| Weight (with battery) | 4.5 kg |

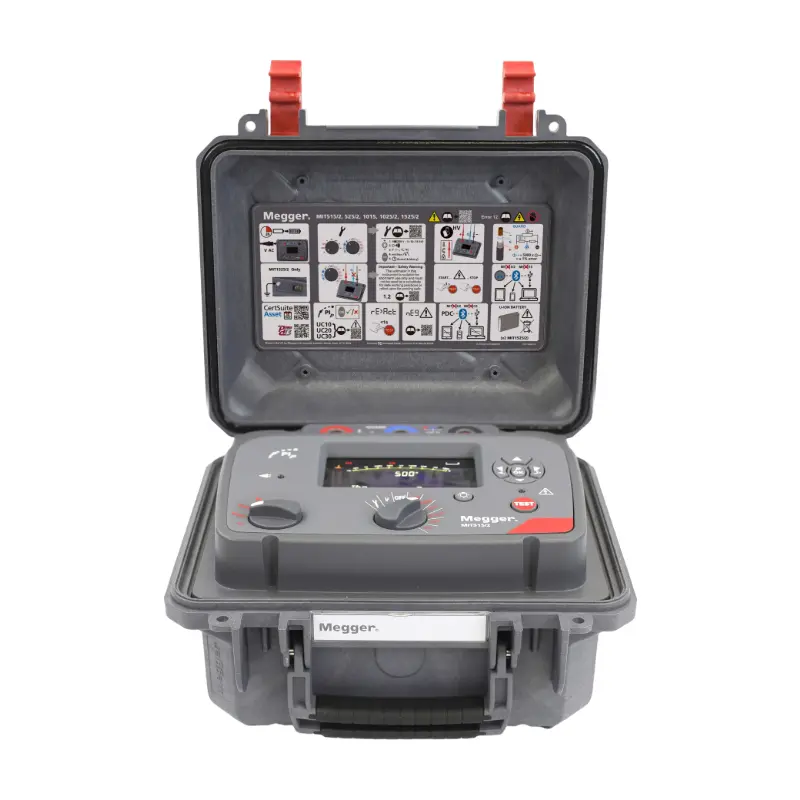

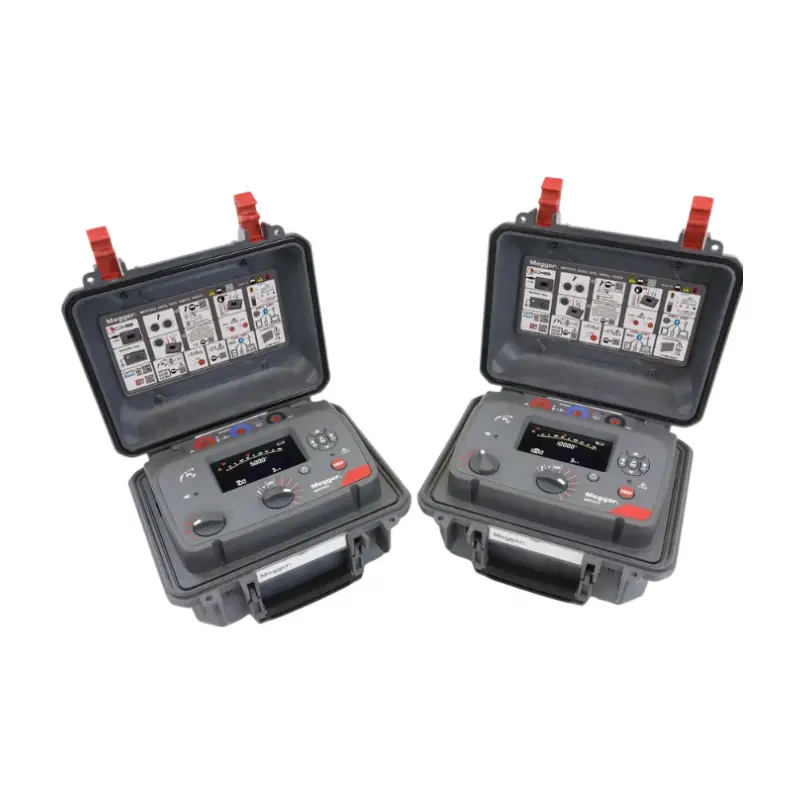

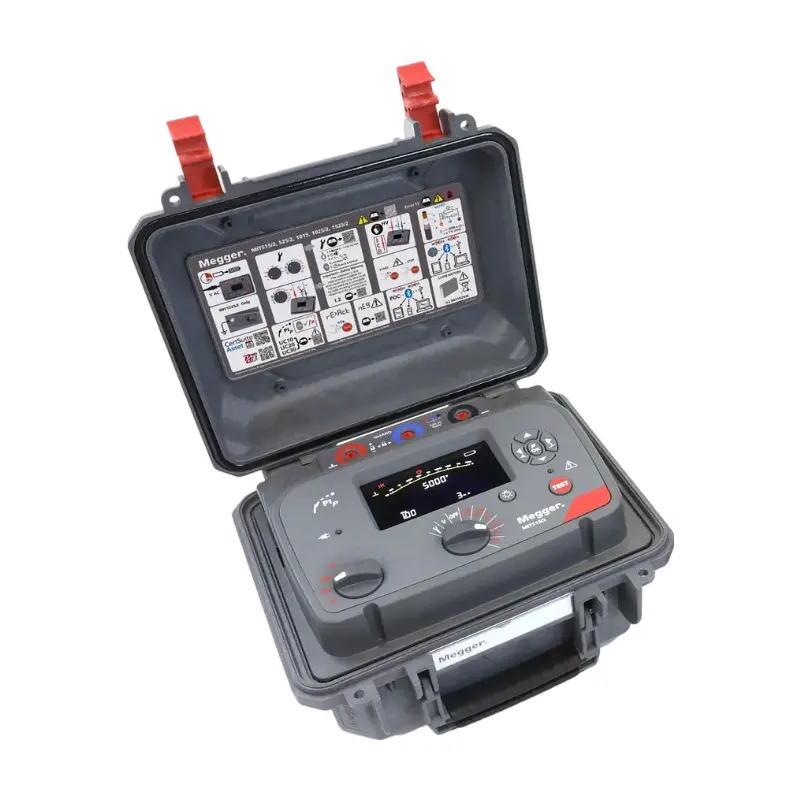

Megger Insulation Resistance Tester MIT515/2
The insulation resistance testing range goes up to 10 TΩ. The digital range covers 10 kΩ - 10 TΩ, and the analog range covers 100 kΩ - 10 TΩ.
It features a CAT IV 600 V safety rating at altitudes up to 3000 meters. The dual-shell casing provides IP65 water and dust protection.
The lithium-ion battery supports up to 6 hours of continuous testing on a single charge. A full charge takes 2.5 hours, and a 30-minute quick charge offers 1 hour of operation.
Yes, AC power input (85 V - 265 V eff, 50/60 Hz, 60 VA) can be utilized to operate the instrument when needed.
The unit measures 315 mm × 285 mm × 181 mm and weighs 4.5 kg including the battery.
The timer ranges from 15 seconds to 99 minutes. The memory capacity supports 5.5 hours of continuous logging, including 33 PI tests and 350 IR tests.
