Custom Megger DLRO10X digital low resistance micro-ohmmeters Supplier, Products

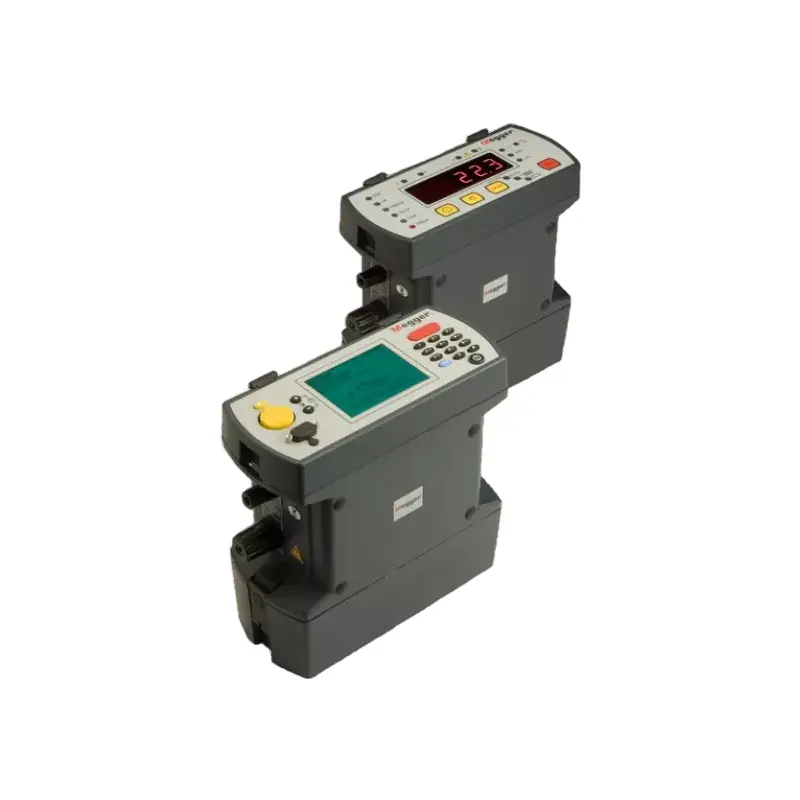

The DLRO10 and DLRO10X digital low resistance micro-ohmmeters bring new standards to low resistance measurement (also known as the Megger â€˜Ducterâ„¢â€™ test). Both are fully automatic instruments, selecting the most suitable test current, up to 10 A DC, to measure resistance from 0.1 ÂµÎ© to 2000 Î© on one of seven ranges.Â

Send Inquiry

Product Description

Product Overview

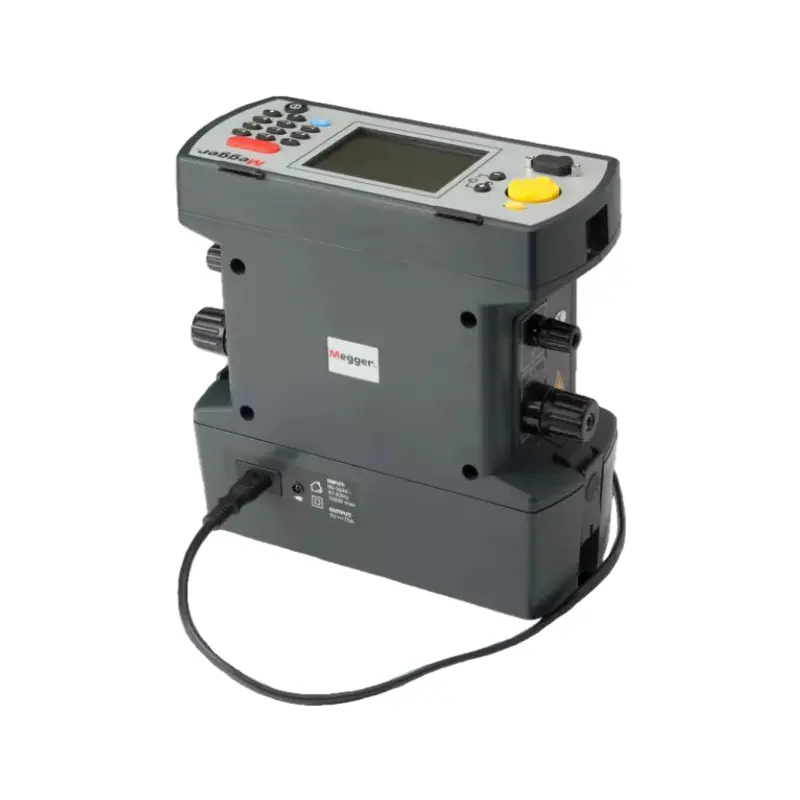

The Megger DLRO10X is a digital low-resistance micro-ohmmeter that sets a new standard for low-resistance measurement.

Measurement Features

Resistance Range: Seven ranges are available, ranging from 0.1 µΩ to 2000 Ω, with a basic accuracy of ±0.2%.
Test Current: The instrument operates fully automatically, selecting the most appropriate test current up to 10 A DC. The user can also manually select the test current via a menu system controlled by a dual-axis paddle.

Operating Modes

Normal Mode: After connecting the leads, press the "Test" button on the front panel to begin the test. The system automatically checks the continuity of all four connections and automatically applies forward and reverse currents.
Auto Mode: Four probes are used to test the connected sample with forward and reverse currents, then the average value is displayed. This mode is ideal for use with a capstan.
Continuous Mode: Multiple measurements can be taken on the same sample. Simply connect the test leads and press the test button. The test results will automatically refresh every 3 seconds until the circuit is broken.
Inductive Mode: Designed for measuring inductive samples. When testing inductive samples, the instrument will wait for the voltage to stabilize before taking measurements.
Unidirectional Mode: Applies current in only one direction during testing. This mode does not eliminate residual electromotive force, but it can speed up the test process.

Features & Benefits

Display: The large backlit LCD display is clearly visible in all lighting conditions, helping to reduce reading errors.
Noise & EMF Handling: Automatically applies forward and reverse current to cancel any static voltage on the sample being tested and checks for excessive noise during measurement.
Continuity Check: Automatically checks the continuity of potential and current connections to prevent erroneous readings.
Data Management: Results can be downloaded in real time and have onboard memory for later downloading to a computer. Includes an onboard keyboard to add notes of up to 200 characters.
Safety & Portability: Safety rating of CAT III 600 V, fuse-protected. Rugged, lightweight housing designed to be worn around the neck.

Power Supply

Battery Type: Rechargeable nickel-metal hydride (NiMH) battery pack with built-in battery status indicator.
Charging Time: Full charge takes approximately 4 hours. Fast-charging mode charges to 90% in approximately 2.5 hours using the included mains charger or a 12V battery.

Technical Specifications

Parameter	Specification Detail
Max output current (DC)	10 A
Power source	Battery / Optional mains adapter
Safety features	CAT III 600 V, LED indicators, Fuse-protected up to 600 V
Accuracy	±0.2% ±2 LSD
Measurement Modes	Normal mode, Auto mode, Continuous mode, Inductive mode, Unidirectional mode
Display	Large backlit LCD
Data Storage	On-board storage for up to 700 test results
Data Communication	RS232 communication port for real-time download or later retrieval of results
Dimensions	220 mm (H) x 100 mm (W) x 237 mm (D)
Weight	Approximately 2.6 kg

Model & Delivery Information

Models

Megger DLRO10X digital low resistance micro-ohmmeters

Physical & Battery Info

Dimensions: 200 * 100 * 237 mm
Net Weight: 2.6 kg
Battery Parameters: Nickel-metal hydride (NiMH) battery

Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Manuals & Resources

Megger DLRO10X digital low resistance micro-ohmmeters datasheet.pdf

Download

Frequently Asked Questions

Q: What is the resistance measurement range of the Megger DLRO10X?

A: The instrument features seven measurement ranges starting from 0.1 µΩ up to 2000 Ω, delivering a basic accuracy of ±0.2%.

Q: How does the DLRO10X manage test currents?

A: It operates fully automatically, selecting the optimum test current up to 10 A DC. Alternatively, users can manually configure the test current using a dual-axis paddle system.

Q: What measurement modes does the Megger DLRO10X offer?

A: It supports five distinct testing modes: Normal mode, Auto mode, Continuous mode, Inductive mode, and a specialized Unidirectional mode which accelerates testing processes.

Q: How does the device handle noise and external EMF during testing?

A: The device automatically applies forward and reverse currents to cancel out static voltages and actively checks for excessive external noise to ensure clean, accurate readings.

Q: Can I store and export test data from the DLRO10X?

A: Yes, it includes on-board storage capacity for up to 700 test results and features an RS232 communication port for both real-time data downloads and later retrieval to a computer.

Q: What is the battery capacity and charging time?

A: It runs on a rechargeable NiMH battery pack. A standard full charge takes about 4 hours, and it supports a fast-charging option that reaches 90% capacity in approximately 2.5 hours.
