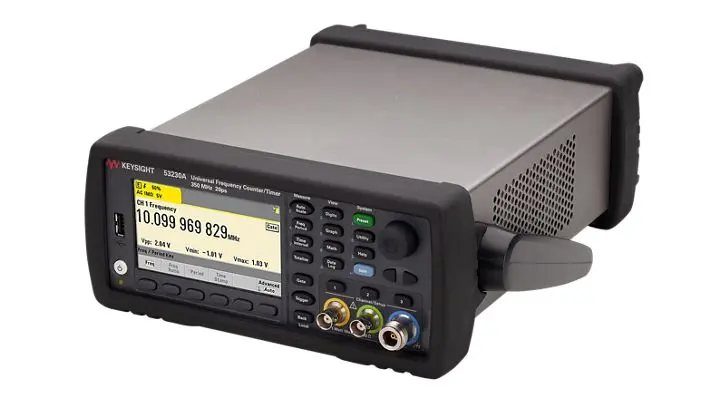

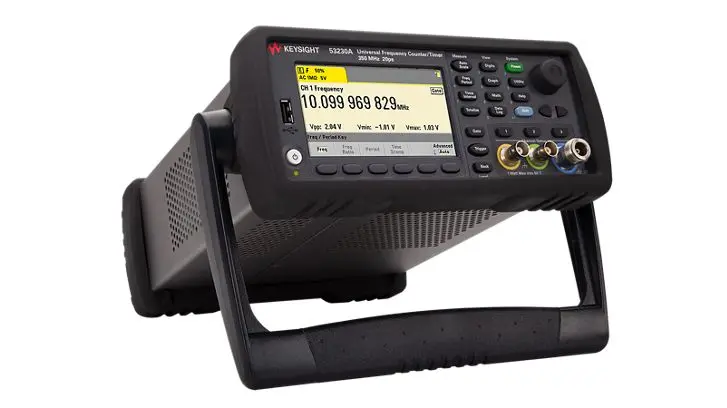

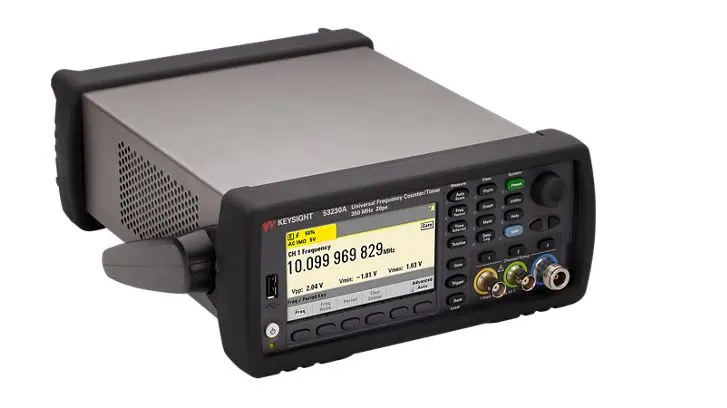

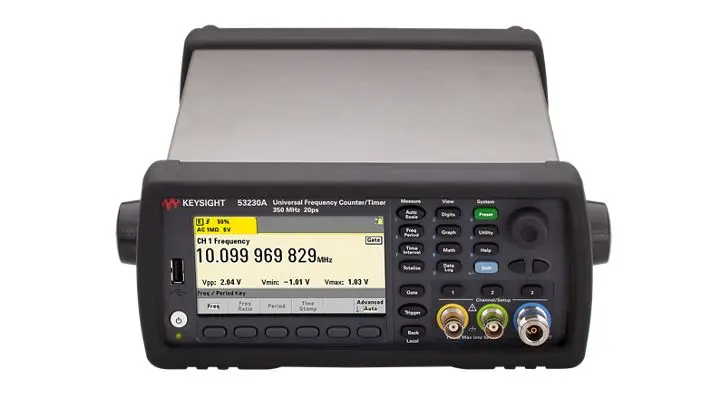

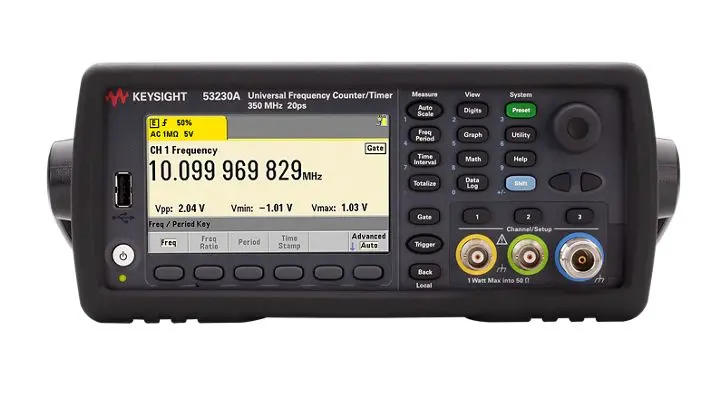

Custom Keysight Universal Frequency Counter/Timer 53230A 350 MHz Manufacturer, Manufacturers

The 53230A is a two-channel frequency counter that can measure continuously and without gaps, as well as frequency and time intervals.

Send Inquiry

Product Description

Key Points

A third channel (6 GHz or 15 GHz) is offered in addition to the two 350 MHz input channels.
Resolution of 12 digits per second, time interval resolution of 20 psec
Integrated graphical presentation (trend and histogram), color, and mathematical analysis
Time stamps and continuous, gap-free data for fundamental modulation domain analysis
LAN, USB, and GPIB LXI-C
Connecting, controlling instruments, and automating test sequences is made simple with BenchVue software.

All of your frequency and time interval measurement requirements are met by the Keysight 53230A universal frequency counter/timer. For simple modulation domain analysis, continuous/gap-free data are available in addition to the standard frequency and time interval measurements. The software for measuring bursts is available. To measure 6 or 15 GHz, an auxiliary microwave channel can be added.

Parameters	53210A	53220A	53230A
Warm-up time	45-minutes
Display	4.3" Color TFT WQVGA (480 x272), LED backlight
User interface and help languages	English, German, French, Japanese, Simplified Chinese, Korean
USB flash drive	FAT, FAT32
Programming language
SCPI	532xx Series and 53131A/53132A/53181A Series compatibility mode
Programming interface
LXI-C 1.3	10/ 100/ 1000 LAN (LAN Sockets and Vxl-11 protocol)
USB 2.0 device port	USB 2.0 (USB-TMC488 protocol)
GPIB interface	GPIB (IEEE-488.1, IEEE-488.2 protocol)
Web user interface	LXI Class C Compatible

Measurements	Model
Frequency	53210A, 53220A, 53230A
Frequency ratio	53210A, 53220A, 53230A
Period	53210A, 53220A, 53230A
Minimum/maximum/peak-to-peak input voltage	53210A, 53220A, 53230A
RF signal strength	53210A, 53220A, 53230A
Single period	53220A, 53230A
Time interval A to B, B to A, A, B	53220A, 53230A
Positive/negative pulse width	53220A, 53230A
Rise/Fall time	53220A, 53230A
Positive/negative duty	53220A, 53230A
Phase A to B, B to A	53220A, 53230A
Totalize (continuous or timed)	53220A, 53230A
Continuous gap-free	53230A
Timestamp	53230A
Pulse burst measurement software	53230A

Bench Dimensions

261.1 mm W x 103.8 mm H x 303.2 mm D

Rack Mount Dimensions

212.8 mm W x 88.3 mm H x 272.3 mm D (2U x 1/2 width)

Weight & Environmental

3.9 kg (8.6 lbs) fully optioned
3.1 kg (6.9 lbs) without Option 300 (battery option)

Keysight Universal Frequency Counter/Timer 53230A 350 MHz

53200A Series RF Universal Frequency CounterTimers .pdf

Frequently Asked Questions

What is the resolution specification for the 53230A model?

The 53230A offers a resolution of 12 digits per second and a time interval resolution of 20 psec.

Can I expand the frequency input channels on the 53230A?

Yes, in addition to the standard two 350 MHz input channels, an optional third auxiliary microwave channel (supporting either 6 GHz or 15 GHz) can be added.

Which standard programming interfaces are supported?

The device supports LXI-C 1.3 (10/100/1000 LAN), USB 2.0 device ports, and GPIB (IEEE-488.1 and IEEE-488.2) interfaces.

Does the 53230A support continuous gap-free measurements?

Yes, the 53230A model supports continuous, gap-free measurements and timestamps, which are ideal for basic modulation domain analysis.

What are the physical dimensions of the benchtop configuration?

The bench dimensions are 261.1 mm Width x 103.8 mm Height x 303.2 mm Depth.
