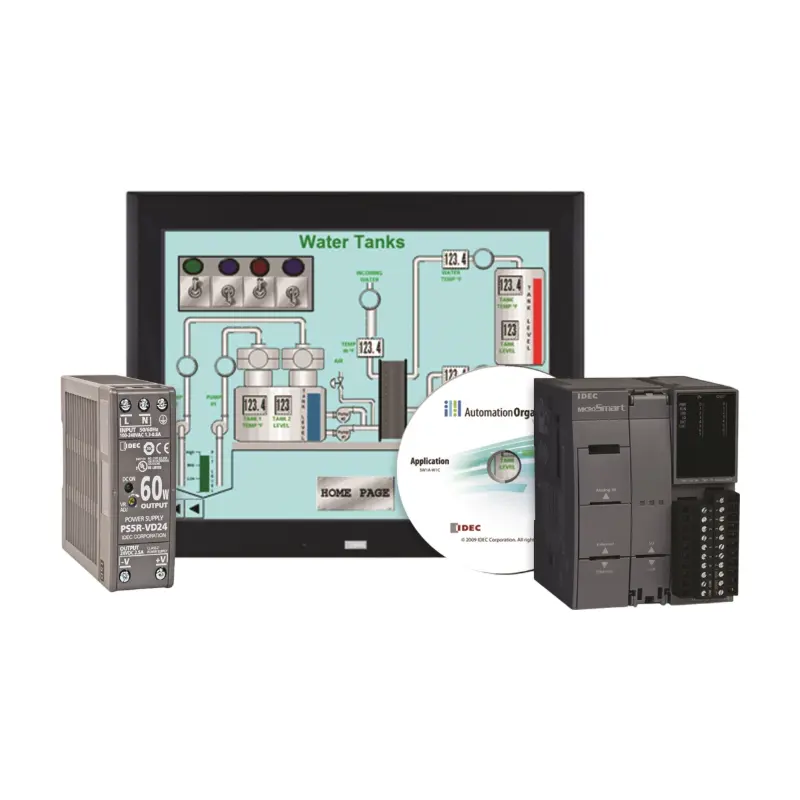

The IDEC KIT - FC6A - C16R - HG5G - VH is a micro PLC starter kit with the following overview:
| Specification Category | Details |
|---|---|
| Model Number | KIT-FC6A-C16R-HG5G-VH |
| PLC Series | FC6A MicroSmart Series |
| PLC Main Unit | FC6A-C16R1CE |
| I/O Configuration | - Total I/O Points: 16 |
| - Digital Inputs: 9 | |
| - Digital Outputs: 7 (2A relay type, rated 240V AC - 2A, 30V DC - 2A) | |
| - Analog Inputs: 1 channel (0 - 10V DC) | |
| Power Supply | 24V DC |
| Communication Interfaces | - 1 Ethernet port |
| - 1 SD memory port | |
| - 1 user - selectable RS232C/RS485 port | |
| Communication Protocols | Modbus TCP, Modbus RTU |
| High - Speed Features | High - speed counter with a maximum input frequency of 100kHz |
| Memory | - Program Capacity: 384K bytes |
| - Internal Relay: 12400 | |
| - Data Register: 56000 | |
| Expansion Capability | - Maximum Digital I/O with Expansion: 404 |
| - Maximum Analog I/O with Expansion: 101 | |
| - Maximum Number of Expansion Modules: 12 | |
| Timer/Counter | - Timer: 1024 |
| - Counter: 512 | |
| Programming Language | Ladder, Script |
| HMI Included | HG5G - VC XT22 MF - B, 15 - inch display |
| Certifications | - UL |
| - TUV | |
| - CE | |
| - Hazardous Location: Class I, Div 2 | |
| - IP Rating: IP20 | |
| Operating Temperature | - 25°C to + 65°C |
| Storage Temperature | - 40°C to + 85°C |
| Battery | BR2032 (for backup, if applicable) |
| Terminal Type | Screw terminal |
