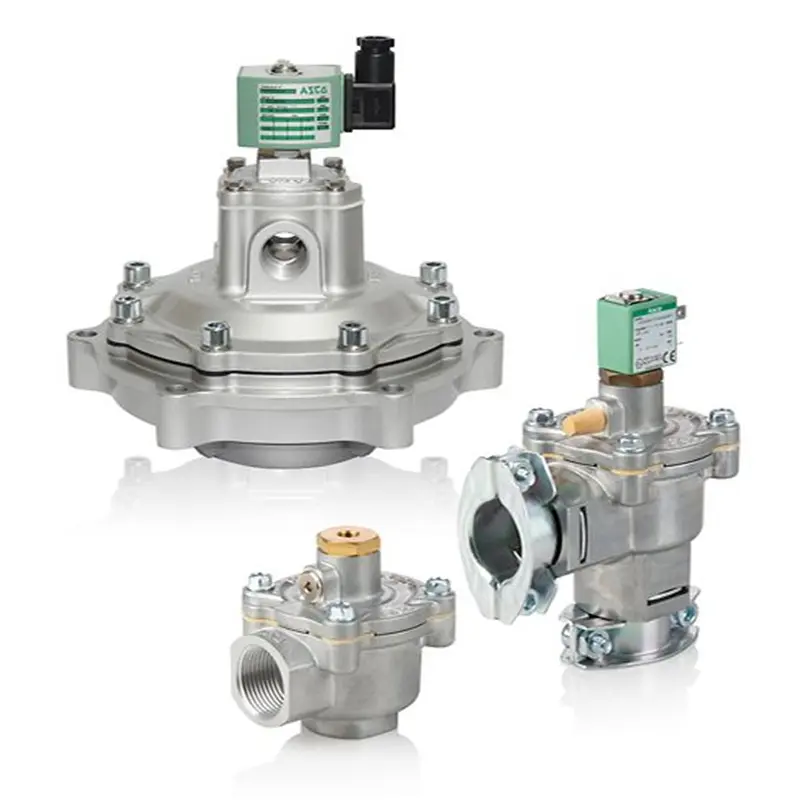

Product Type: Classified as an ASCO 353 series pulse solenoid valve, this is an electrically piloted diaphragm valve.
Specifications: Interface size G1, bore diameter 32mm, valve body material aluminium, sealing material nitrile rubber (NBR), flow coefficient Kv 20mĀ³/h, operating medium air, operating voltage 24VDC, minimum operating pressure 2bar, maximum operating pressure 8.5bar.
Product Features: This pulse valve series is specifically engineered for dust extraction equipment applications. It delivers high flow rates with rapid open/close switching, ensuring reliable and economical operation. Its integrated spun-fit connection facilitates swift, hassle-free installation without requiring threaded pipes. Additionally, it incorporates a silencer to reduce noise levels and prevent foreign particles from entering the valve.
| Valve Actuation Solenoid Air | Pilot, Air Operated |
| Body Material | Aluminum |
| Media | Air |
| Port Type | NPTF, G-Thread, Quick Mount Clamp Connection |
| Function | 2 way - 2/2 Normally Closed |
| Flow | From 10 to 20 Cv, from 35 to 57 Cv, from 60 to 140 Cv |
| Voltage | 24 AC, 110 AC, 115 AC, 120 AC, 208 AC, 220 AC, 230 AC, 240 AC, 440 AC, 480 AC | 50, 60 Hz | 24V DC | other on request |
| Operating Environment | Hazardous, Indoor, Outdoor |
| Standards / Regulations | Class I Div 1, Class I Div 2, Class II Div 1, Class II Div 2, Type 1, Type 2, Type 3, Type 3R, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL, CSA, ATEX Zone 1ā21, ATEX Zone 2ā22 |
| Function | 2 way - 2/2 Normally Closed |
| Valve Actuation | Solenoid |
| Product Weight | 1.81 lbs |
| Coil Class | FI |
| Coil Number | 400127-642 |
| Voltage | 24 Volts DC |
| Watt Rating2 | 2 W |
| Item Status | Active |
| Operating Environment | Hazardous, Indoor, Outdoor |
| Carton Note | 1 X 1-1/4 2NC ALUM 22/F DC |
| Temperature | -40Ā°F to 140Ā°F, -4Ā°F to 284Ā°F |

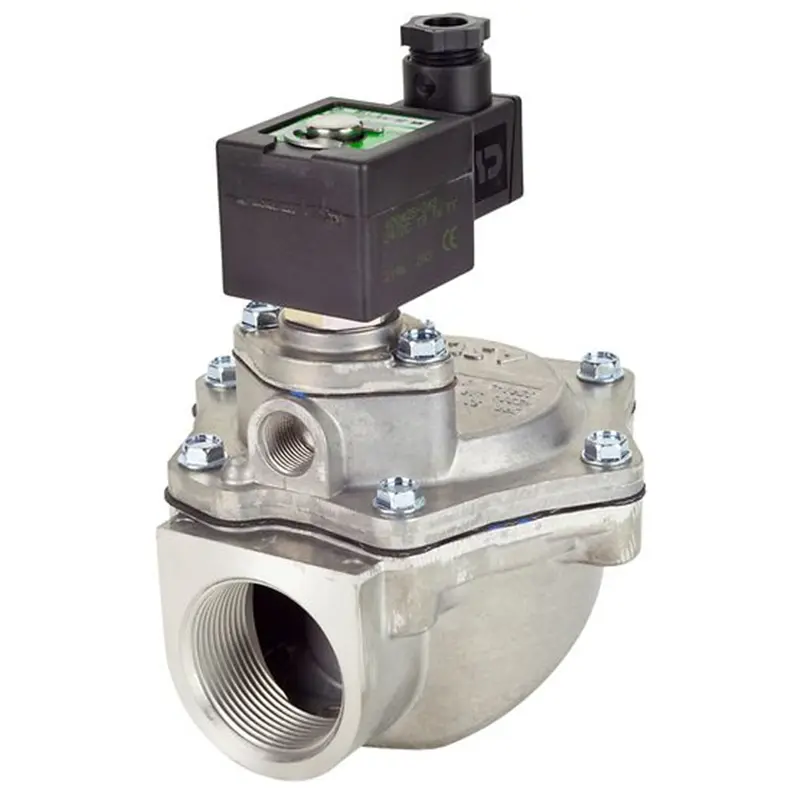

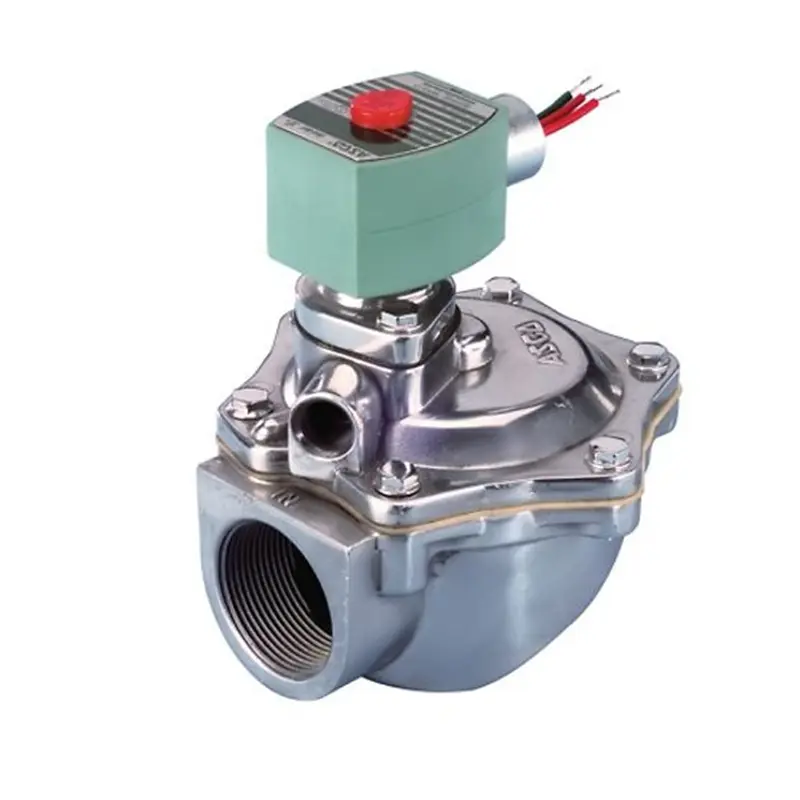

Emerson ASCO G353K211S1A00F1 Pulse Solenoid Valve
Packaging: The packaging details of the ASCO 353 pulse electromagnetic valve typically include a PVC bag, an inner box, a cardboard box, and then it is packed in a pallet.
Net Weight (kg): 0.45kg
Carton Note: 1 X 1-1/4 2NC ALUM 22/F DC
Q1: What is the main application of the ASCO 353 series pulse solenoid valve?
A1: This pulse valve series is specifically engineered for dust extraction equipment applications, delivering high flow rates with rapid open/close switching for effective filter bag cleaning.
Q2: Does this valve require threaded pipe installation?
A2: No, it features an integrated spun-fit connection that allows for swift, hassle-free installation without the need for thread cutting or separate sealing.
Q3: What are the voltage options available for the ASCO 353 pulse valve?
A3: The valve supports multiple voltage options including 24V DC, and various AC voltages (24 AC, 110 AC, 230 AC, etc., in 50/60 Hz) to meet different industrial configurations.
Q4: In what positions can this pulse valve be installed?
A4: The valve is highly versatile and can be installed in any physical position without affecting its operation.
Q5: How does the valve manage noise and external debris?
A5: It incorporates a silencer designed to reduce noise levels during operation and prevent foreign particles from entering the valve system.
Q6: What materials are used for the valve body and seal?
A6: The valve body is constructed from high-quality Aluminum, and the sealing material is Nitrile Rubber (NBR), ensuring durability and reliability.
