| GENERAL SPECIFICATIONS | |
|---|---|

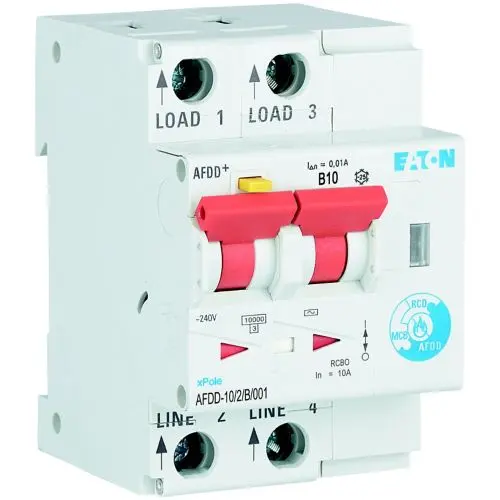

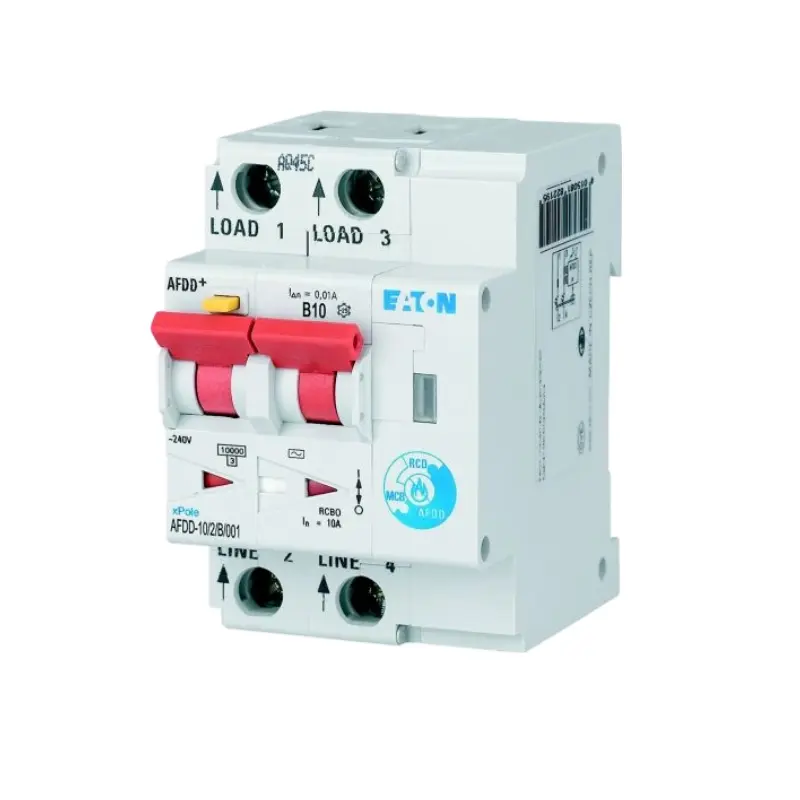

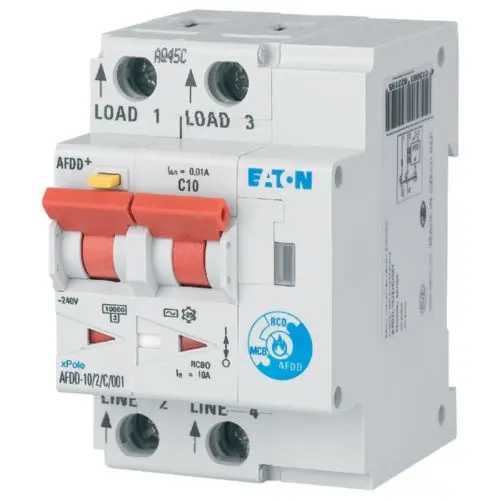

| Product Name | Eaton Moeller series xPole - AFDD+ Arc fault detection device |
| Catalog Number | 187164 |
| EAN | 4015081822133 |
| Model Code | AFDD-10/2/B/001 |
| Product Dimensions | 80 mm (Length/Depth) x 73 mm (Height) x 52.5 mm (Width) |
| Product Weight | 0.277 kg |
| Compliances | CE Marked, RoHS conform |
| Certifications | CE |
| DELIVERY PROGRAM | |
| Application | Switchgear for residential and commercial applications |
| Product Range / Basic Function | AFDD / Arc fault circuit interrupter |
| Number of Poles | Two-pole (2 protected, 2 total) |
| Release / Tripping Characteristic | B |
| Rated Current | 10 A (Product range: 10-40 Ampere) |
| Fault Current Rating | 0.01 A |
| Sensitivity Type | Type AC (AC current sensitive) |
| Type | AFDD+ |
| TECHNICAL DATA - MECHANICAL | |
| Frame / Built-in Width | 45 mm / 54 mm |
| Width in Number Of Modular Spacings | 3 |
| Device Height / Built-in Depth | 80 mm / 67 mm |
| Mounting Style | Tri-stable slide catch enables removal from existing busbar combination |
| Degree of Protection | IP20 (External), IP40 (Built-in) |
| Terminals (Top and Bottom) | Twin-purpose |
| Terminal Protection | Busbar tag shroud as per VBG4, ÖVE-EN 6 |
| Permissible Temp. Range (Storage/Trans) | Min: -35℃ / Max: 60℃ |
| Contact Position Indicator | Red / Green |
| Thickness of Busbar Material | 0.8 - 2 Square Millimeter |
| Climatic Proofing | IEC/EN 61009 |
| Lifespan (Mechanical) | 20,000 operations |
