Weintek CMT2058XH is an industrial automation-oriented Human-Machine Interface (HMI) featuring a compact design, reliable performance, and convenient connectivity capabilities. It is suitable for operation monitoring and data interaction needs in small to medium-sized equipment. The following sections detail its core specifications, key features, and applicable scenarios:
Equipped with a 4.3-inch wide-viewing-angle (WVA) LCD display featuring 800×480 pixel resolution. Its wide viewing angles and high contrast ensure clear visibility from multiple perspectives. The resistive touchscreen design supports precise touch operations, meeting the demands of frequent use in industrial environments.
Powered by a high-performance processor paired with 4GB of built-in flash memory, it efficiently runs monitoring programs while storing historical data and configuration files. An integrated real-time clock (RTC) accurately records event timestamps for seamless data traceability and analysis.
The front panel meets NEMA 4/IP66 protection standards, effectively resisting common industrial hazards like dust and liquid splashes. The fanless thermal design minimizes mechanical failure points, enhancing long-term operational stability and extending the device's lifespan.
The built-in power isolator effectively shields against external power interference, mitigating the impact of voltage fluctuations and electromagnetic interference on core circuitry. This ensures stable signal transmission and secure device operation.
Equipped with multiple communication interfaces, including RS-485 (2-wire), supporting mainstream industrial protocols such as MPI and Modbus RTU. This enables seamless integration with industrial equipment like PLCs, inverters, and sensors from brands including Siemens, Mitsubishi, and Schneider, facilitating real-time data acquisition and command execution. Select interfaces support protocol switching to adapt to diverse on-site communication requirements.
Utilizes modular configuration software (e.g., Weintek EasyBuilder Pro) with extensive graphic libraries, animation components, and pre-set functions like alarms and trend charts to streamline configuration development. Compact device size and flexible mounting options (supporting DIN rail or panel mounting) save control cabinet space.
Beyond isolated power supply and fanless design, the device incorporates overvoltage and overcurrent protection mechanisms to withstand industrial power fluctuations. A wide input voltage range (typically supporting 100-240V AC) further enhances environmental adaptability.
Leveraging its compact size, robust protection, and fundamental communication capabilities, the CMT2058XH finds widespread use in small-to-medium automation equipment, such as:
As the entry-level compact model in Weintek's CMT series, the CMT2058XH centers on “high cost-effectiveness” as its core advantage. While meeting fundamental monitoring requirements, its design—including power isolation and IP66 protection—ensures reliability in industrial environments. It serves as a practical choice for small and medium-sized equipment manufacturers seeking to upgrade human-machine interaction.
| Display | Display | 4.3" Wide Viewing Angle (wVA) |
| Resolution | 800*480 | |
| Brightness (cd/m²) | 530 | |
| Contrast Ratio | 800:1 | |
| Backlight Type | LED | |
| Backlight Life Time | >30,000 hrs. | |
| Colors | 16.7M | |
| LCD Viewing Angle (T/B/R/L) | 80/80/80/80 | |
| Pixel Pitch (mm) | 0.1188 (H)x 0.1122 (V) | |
| Touch Panel | Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% | |
| Memory | Flash | 4 GB |
| RAM | 1 GB | |
| Processor | Quad-core RISC | |
| I/O Port | SD Card Slot | N/A |
| USB Host | USB 2.0 * 1 | |
| USB Client | N/A | |
| Ethernet | LAN 1: 10/100/1000 Base-T * 1 LAN 2: 10/100 Base-Tx1 |
|
| COM Port | COM1: RS-232/RS-485 2W/4W, COM3: RS-485 2W | |
| RS-485 Dual Isolation | N/A | |
| CAN Bus | N/A | |
| HDMI | N/A | |
| Audio Output | N/A | |
| RTC | Built-in | |
| Power | Input Power | 24±20%VDC |
| Power Isolation | Built-in | |
| Power Consumption | 510mA@24VDC | |
| Voltage Resistance | 500VAC(1 min.) | |
| Isolation Resistance | Exceed 50MΩ at 500VDC | |
| Specification | PCB Coating | Yes |
| Enclosure | Plastic | |
| Dimensions WxHxD | 128 * 102 * 32 mm | |
| Panel Cutout | 119 * 93 mm | |
| Weight | Approx. 0.27 kg | |
| Mount | Panel mount | |
| Protection Structure | UL Type 4X (indoor use only)/NEMA4 /IP66 Compliant Front Panel | |
| Environment | Storage Temperature | -20°~60°C(-4°~ 140°F) |
| Operating Temperature | 0°~50°C(32°~122°F) | |
| Relative Humidity | 10%~90% (non-condensing) | |
| Altitude (Air Pressure) | Below 3,000 meters (70.1kPa) | |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) | |
| Certificate | CE | CE marked |
| UL | cULus Listed | |
| Software | EasyBuilder Pro | V6.09.01 or later versions |
| Weincloud | EasyAccess 2.0 (Optional), Dashboard (Optional) | |
| CODESYS® | Optional | |

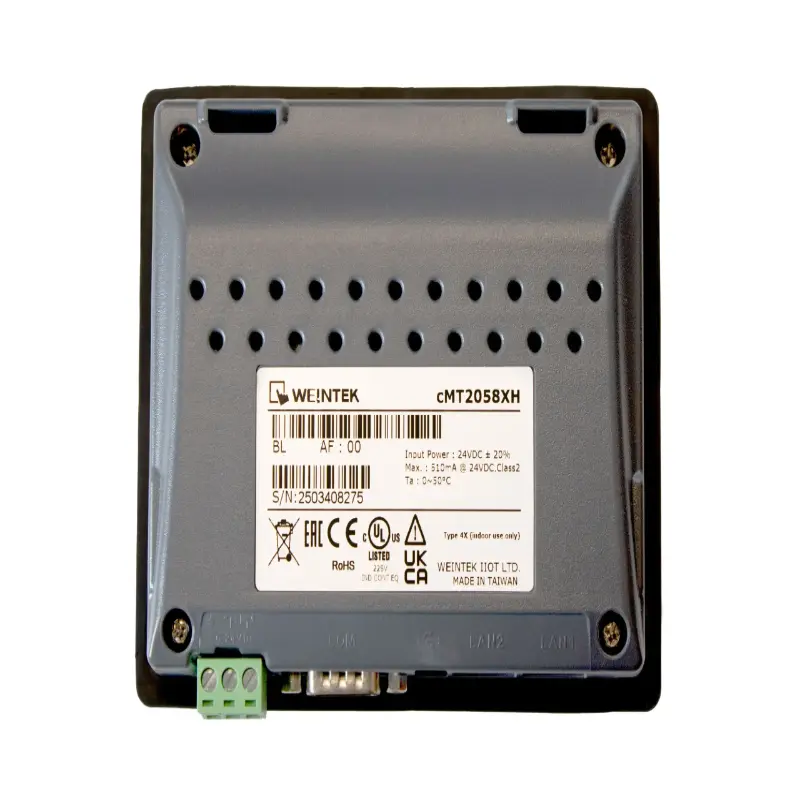

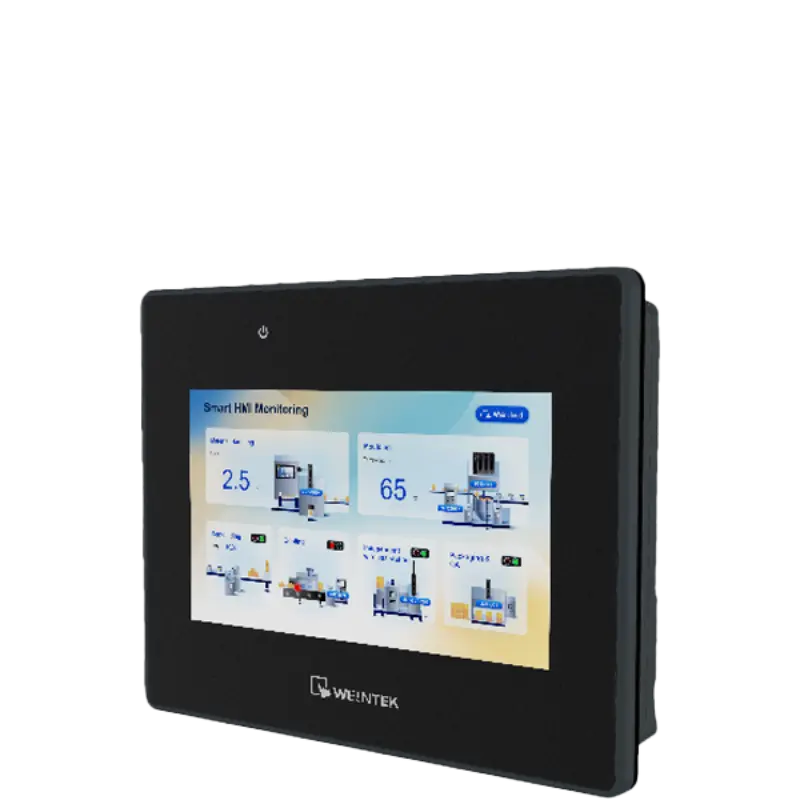

Model: Weintek CMT2058XH HMI with 4.3" WVA Display Built-in Power Isolator
| PCB Coating | Yes |
| Enclosure | Plastic |
| Dimensions WxHxD | 128 x 102 x 32 mm |
| Panel Cutout | 119 x 93 mm |
| Weight | Approx. 0.27 kg |
| Mount | Panel mount |
