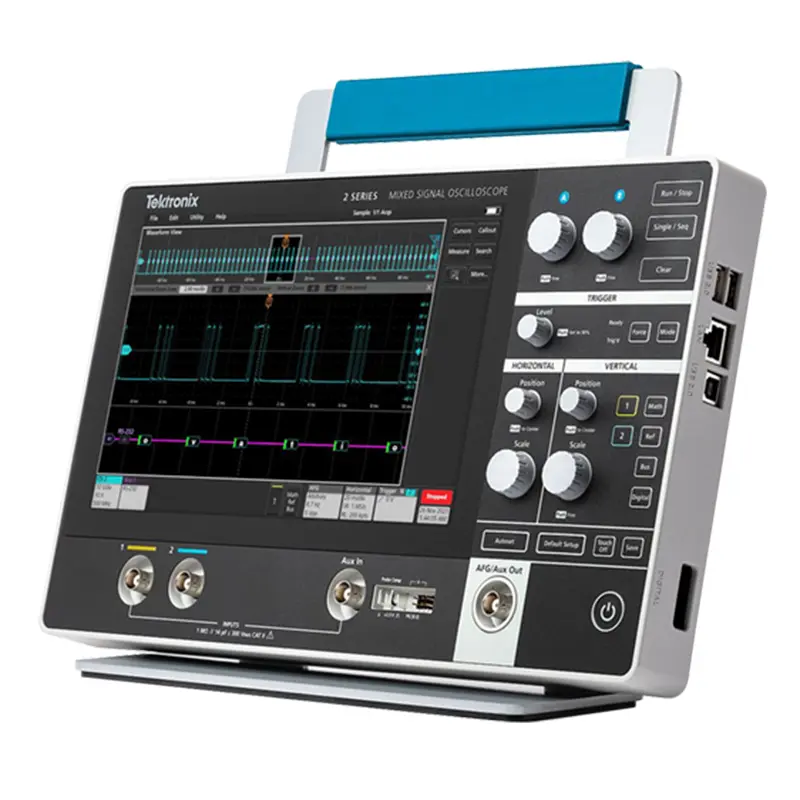

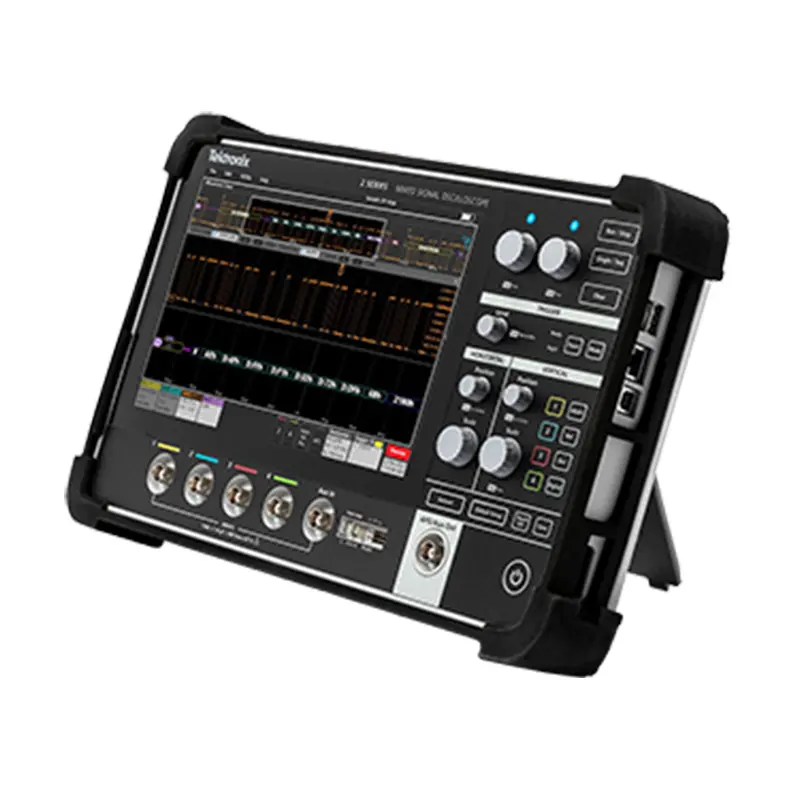

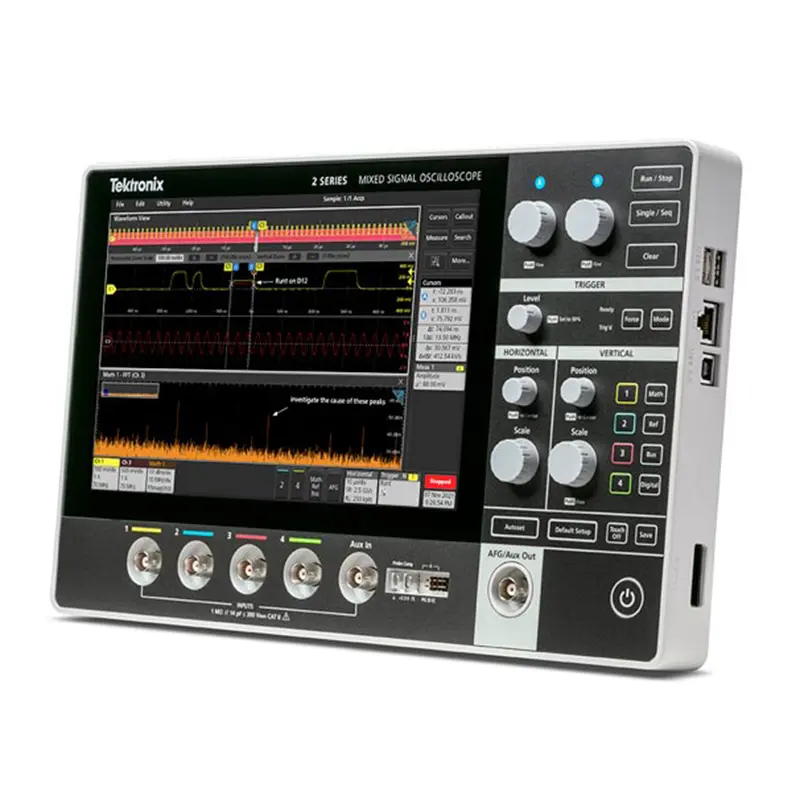

Overview of the Specifications Details for Ordering A small, multipurpose oscilloscope for everyday debugging In a small, 1.5" thick form factor, the 2 Series MSO has up to 4 analog channels, 500 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, 50 MHz AFG, 4-bit digital pattern generator, sophisticated triggers, and protocol decode.
No matter where you work, the 2 Series MSO is the oscilloscope of choice for electronic testing and debugging. A part of the family of award-winning next-generation oscilloscopes, the 2 Series MSO boasts a capacitive touchscreen and an extremely user-friendly interface that is truly made for touch. Any next-generation oscilloscope is simple to use because to the same user interface and programmable interface. The instrument's capabilities are increased with the optional battery pack.
| Specification | MSO22 | MSO24 | MSO22-EDU | MSO24-EDU |
| Analog channels | 2 | 4 | 2 | 4 |
| Analog channel bandwidth | 70 MHz, 100 MHz, 200 MHz, 350 MHz, and 500 MHz | 70 MHz, 100 MHz, and 200 MHz | ||
| 500 MHz bandwidth guaranteed from 4 mV/div to 10 V/div. | ||||
| Sample rate | 1.25 GS/s All channel, 2.5 GS/s half channels Interleaved | |||
| Record length | 10 M | |||
| Waveform Capture Rate, typical | >4,000,000 wfms/s | |||
| Digital channels | 16 | |||
| AFG outputs | 1 (multiplexed with Aux Out) | |||
| Model | Description |
| MSO22 | Mixed Signal Oscilloscope: 2 analog channels, 2.5 GS/s sample rate, 10 Mpts record length |
| MSO24 | Mixed Signal Oscilloscope: 4 analog channels, 2.5 GS/s sample rate, 10 Mpts record length |
| MSO22-EDU | Mixed Signal Oscilloscope: 2 analog channels, 16 digital channels, 2-ULTIMATE, 2-MSO, T5 |
| MSO24-EDU | Mixed Signal Oscilloscope: 4 analog channels, 16 digital channels, 2-ULTIMATE, 2-MSO, T5 |
| Instrument only | |
| Height | 210 mm (8.26 in) |
| Width | 344 mm (13.54 in) |
| Depth | 40.4 mm (1.59 in) |
| Instrument with battery pack | |
| Height | 210 mm (8.26 in) |
| Width | 344 mm (13.54 in) |
| Depth | 78 mm (3.07 in) |
| Weight | |
| Instrument only | 1.8 kg (4 lbs) |
| Instrument with battery pack | 3.2 kg (7 lbs) – one battery |
| 3.6 kg (8 lbs) – two batteries | |
The 2 Series MSO is available in 2-channel and 4-channel models (such as the MSO22 and MSO24), offering flexibility depending on your testing needs.
It supports bandwidths of 70 MHz, 100 MHz, 200 MHz, 350 MHz, and 500 MHz, with 500 MHz bandwidth guaranteed from 4 mV/div to 10 V/div.

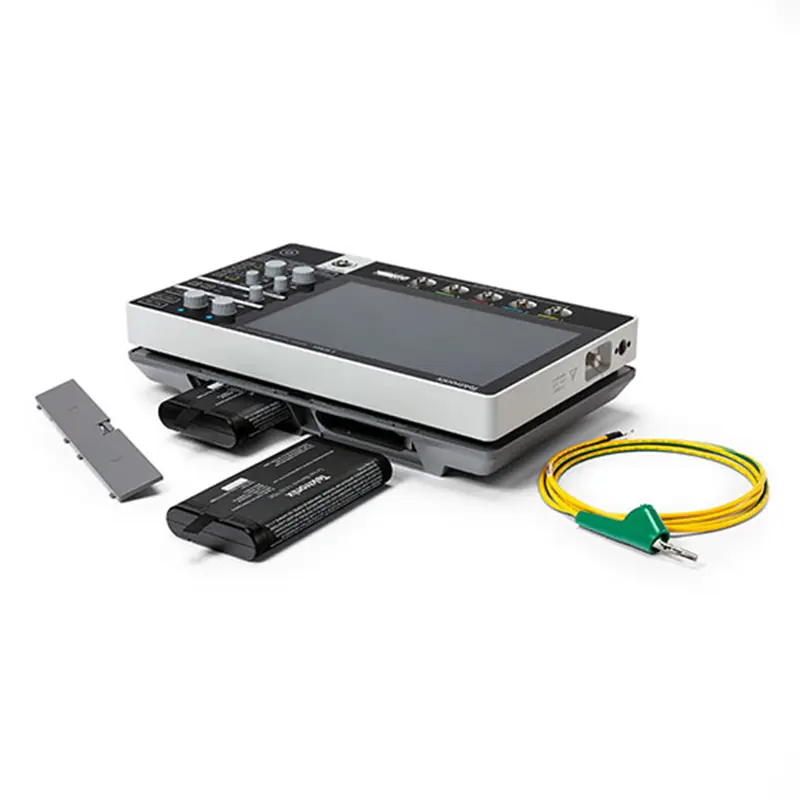

Yes, the capabilities of the instrument can be increased with an optional battery pack, supporting one or two batteries for field portability.
The series offers a sample rate of 1.25 GS/s on all channels (2.5 GS/s interleaved on half channels) and a record length of 10 Mpts.

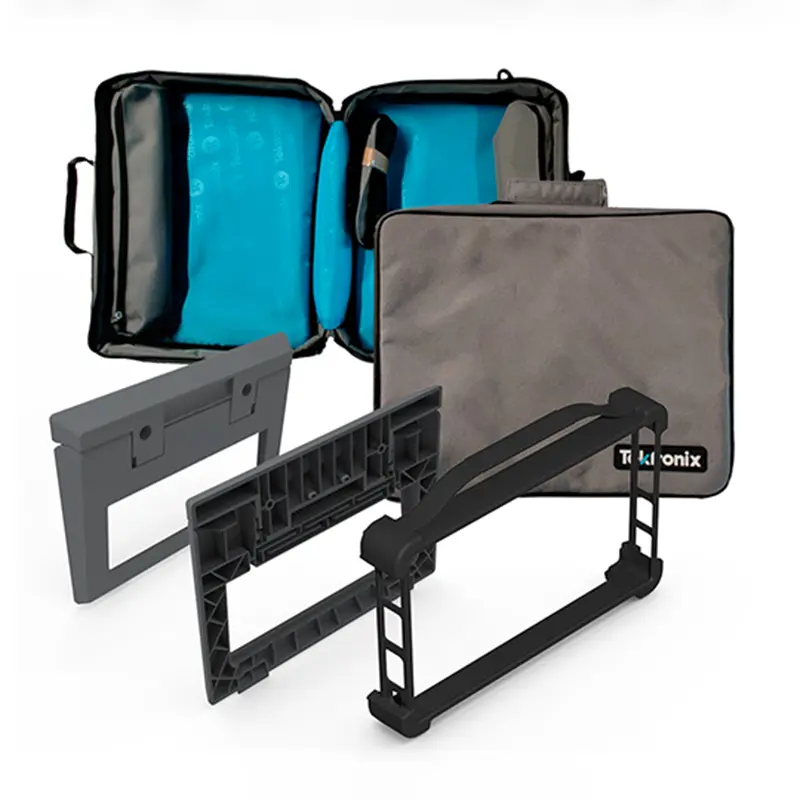

Each model comes with TPP0200 200 MHz probes (one per channel), an instrument stand, installation and safety manuals, embedded help, an external power supply, and a calibration certificate.
