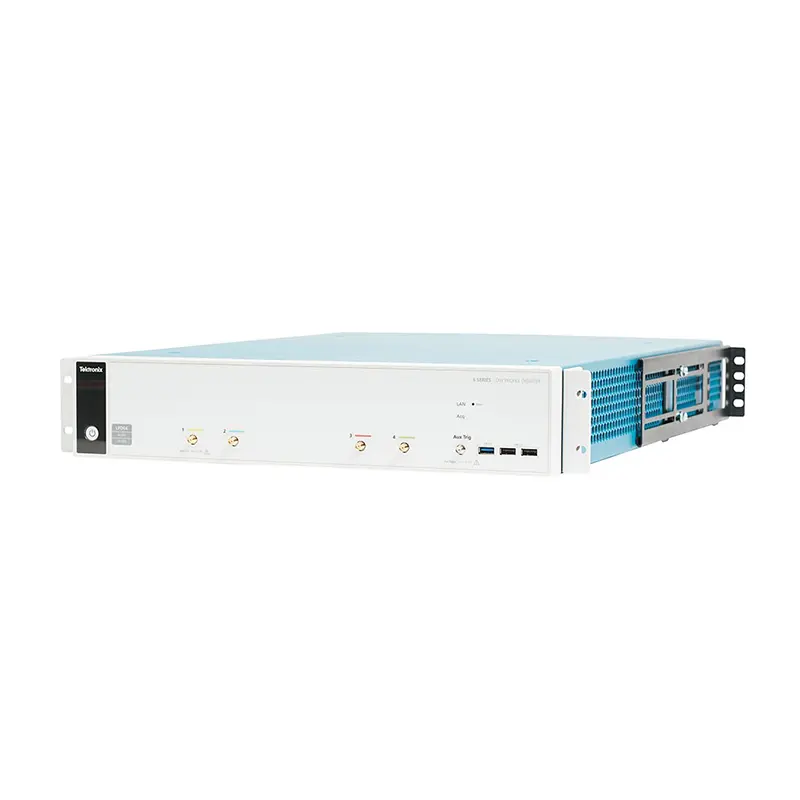

The best performing digitizer in its class across all channels is the 6 Series Low Profile Digitizer (LPD64). Offering the greatest signal fidelity for signal analysis and debugging in a compact 2U rack footprint, it provides the lowest input noise and an analog bandwidth of up to 8 GHz. The 6 Series Low Profile Digitizer LPD64 is prepared for next-generation test rack designs with its four SMA inputs that each support Analog, Spectral (using DDC), or both concurrently, the lowest noise in the class, and the highest ENOB in the class.

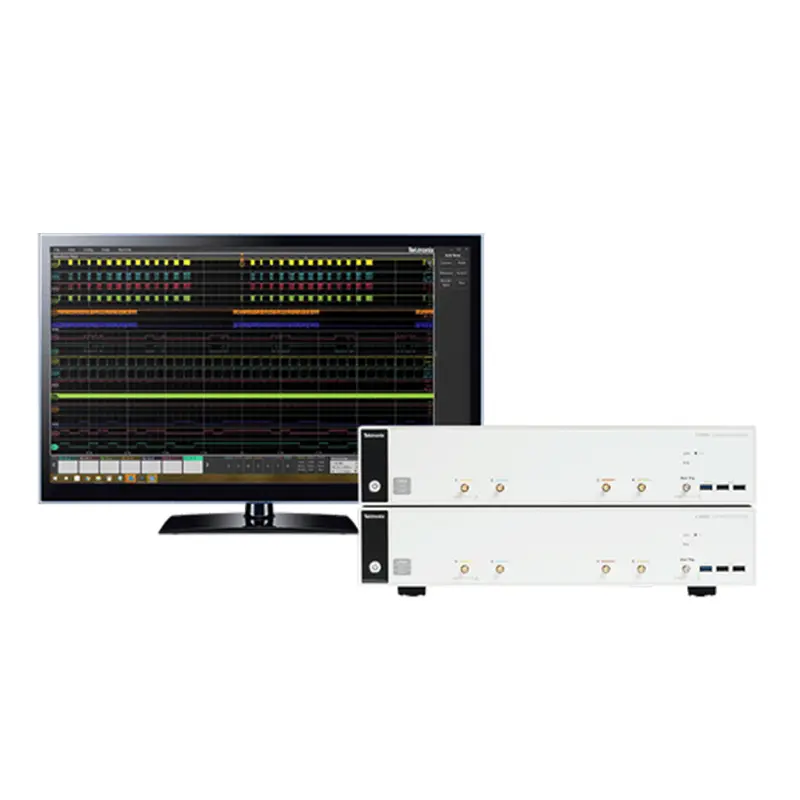

This high-speed digitizer combines the capabilities of an oscilloscope with a digitizer.

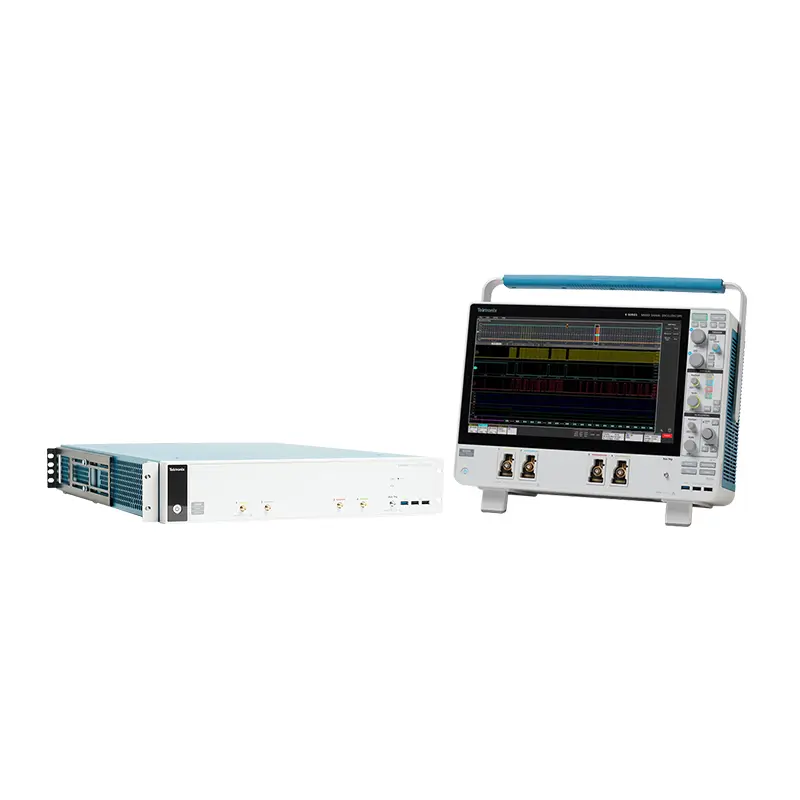

For R&D engineers who need to transfer their code, test work, and platform performance into manufacturing and automation, switching from a benchtop oscilloscope to a Low Profile Digitizer has never been simpler. To make this transfer as straightforward and painless as possible, both systems support the same programming back-end, performance features, remote capability, and user interface. Test procedures and development test cycle code don't need to be redone!
| Characteristic | LPD64 |
|---|---|
| Analog inputs | 4 |
| Bandwidth (calculated rise time) | 1 GHz (400 ps), 2.5 GHz (160 ps), 4 GHz (100 ps), 6 GHz (66.67 ps), 8 GHz (50 ps) |
| DC Gain Accuracy |
50 Ω: ±2.0% (±2.0% at 2 mV/div, ±4.0% at 1 mV/div, typical) 50 Ω: ±1.0% of full scale, (±1.0% of full scale at 2 mV/div, ±2.0% at 1 mV/div, typical) |
| ADC Resolution | 12 bits |
| Vertical Resolution (all channels) |
8 bits @ 25 GS/s; 8 GHz 12 bits @ 12.5 GS/s; 4 GHz 13 bits @ 6.25 GS/s (High Res); 2 GHz 14 bits @ 3.125 GS/s (High Res); 1 GHz 15 bits @ 1.25 GS/s (High Res); 500 MHz 16 bits @ ≤625 MS/s (High Res); 200 MHz |
| Sample Rate | 25 GS/s on all channels |
| Record Length |
125 Mpoints on all channels (standard) 250 Mpoints, 500 Mpoints or 1 Gpoints on all channels (optional) |
| Waveform Capture Rate |
>500,000 wfms/s (Peak Detect, Envelope acquisition mode) >30,000 wfms/s (all other acquisition modes) |
| Arbitrary/Function Generator (option) | 13 predefined waveform types with up to 50 MHz output |
| DVM | 4-digit DVM (free with product registration) |
| Trigger Frequency Counter | 8-digit frequency counter (free with product registration) |
| Model | Number of channels |
|---|---|
| LPD64 | 4 |
Each model includes:

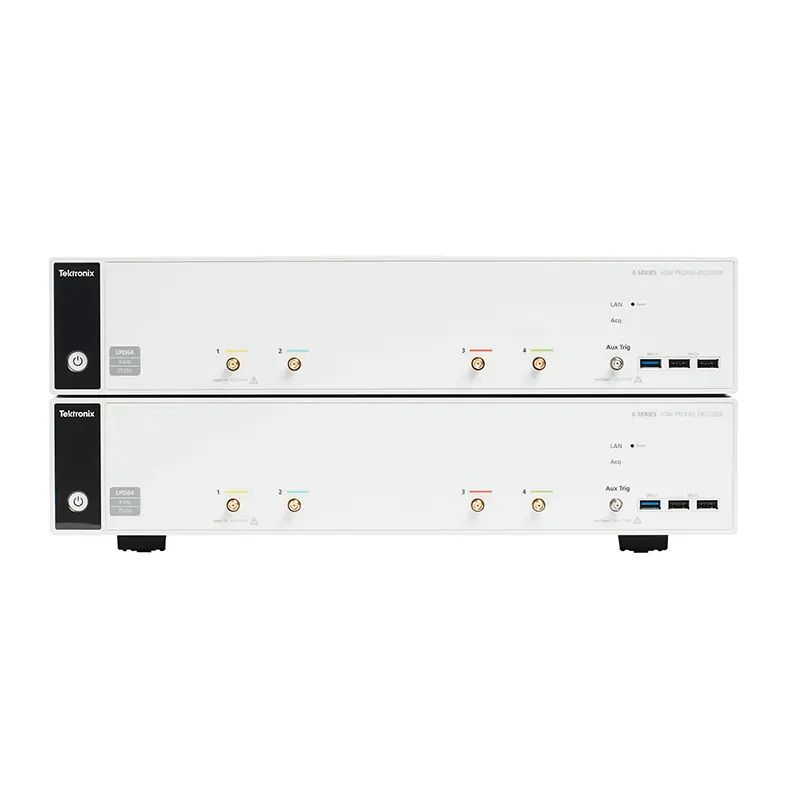

2U (3.5 in. / 89 mm) tall and rack ready out of the box (standard configuration).
17 in. (432 mm) wide panel width.
Fits directly into standard 24 - 32 in. (610 - 813 mm) server racks.
Optimized left-to-right airflow configuration designed specifically for stable rack installations.
