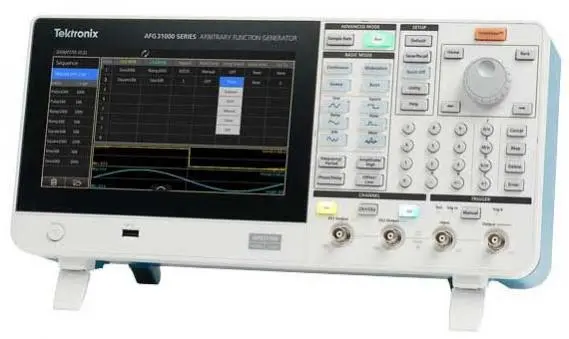

China Tektronix Generator of Arbitrary Functions AFG31000 Manufacturer, Supplier

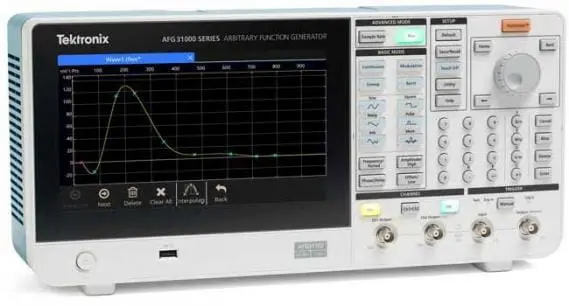

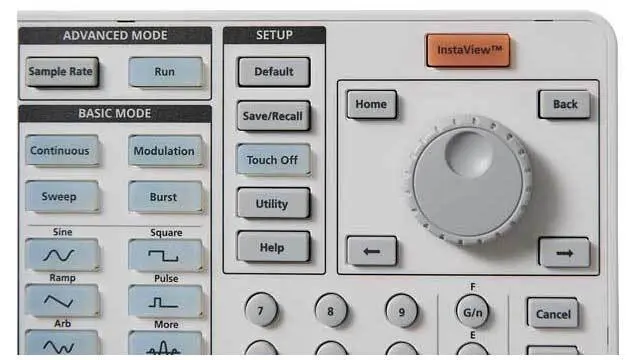

AdvancedÂ researchÂ applicationsÂ areÂ revolutionizedÂ byÂ theÂ AFG31000Â seriesÂ withÂ InstaViewTMï¸Â technology.ItÂ givesÂ engineersÂ theÂ toolsÂ theyÂ needÂ toÂ createÂ accurateÂ waveforms,Â trackÂ themÂ inÂ realÂ time,Â andÂ readilyÂ analyzeÂ theÂ findingsÂ sinceÂ itÂ canÂ reproduceÂ real-worldÂ signals.

ResearchersÂ canÂ pushÂ theÂ limitsÂ ofÂ theirÂ investigationsÂ andÂ produceÂ ground-breakingÂ resultsÂ withÂ theÂ helpÂ ofÂ thisÂ adaptableÂ instrument. ForÂ high-performanceÂ andÂ versatileÂ waveformÂ generation,Â theÂ AFG31000Â seriesÂ isÂ theÂ bestÂ optionÂ available,Â whichÂ makesÂ itÂ anÂ invaluableÂ toolÂ forÂ cutting-edgeÂ applications.

Send Inquiry

Product Description

Overview
Specifications
Models
Delivery Information
Manuals + resources

The R&S®SMA100B represents the optimal solution for any scenario that necessitates analog signals of the highest purity. When employed as a local oscillator alternative in radar systems, this instrument produces microwave outputs exhibiting exceptionally near-carrier single-sideband phase noise, thereby permitting the detection of targets with minimal velocity.

In the evaluation of analog-to-digital converters (ADCs), the unit generates waveforms with remarkably minimal timing instability and a superb unwanted-free dynamic performance. A dedicated secondary output allows the concurrent delivery of pristine reference clock signals for ADC characterization, featuring negligible broadband phase noise.

Within automated industrial setups, the generator's outstanding power capability obviates the necessity for supplementary amplification stages, all while maintaining parasitic emissions at profoundly suppressed levels.

This apparatus eliminates the traditional compromise between spectral integrity and amplitude strength. As the singular test equipment capable of delivering outputs with both tremendous power levels and infinitesimally low unwanted spectral elements, it establishes unprecedented benchmarks for premium-grade analog signal sources.

📋 Key Performance Specifications

Parameter	Specification Details
Channels	1 or 2 channel models
Output Amplitude	1 mVP-P to 10 VP-P into 50 Ω loads
Basic (AFG) Mode	25 MHz, 50 MHz, 100 MHz, 150 MHz, or 250 MHz sine waveforms 250 MSa/s, 1 GSa/s or 2 GSa/s sample rates 14-bit vertical resolution Built-in waveforms include sine, square, ramp, pulse, noise, and other frequently used waveforms Sweep, Burst, and Modulation modes (AM, FM, PM, FSK, and PWM)
Advanced (Sequence) Mode	Continuous mode (optional Sequence, Triggered and Gated modes) 16 Mpts arbitrary waveform memory on each channel (128 Mpts optional) Up to 256 steps in sequence mode with loop, jump and wait events Variable sampling clock 1 µSa/s to 2 GSa/s

🏠 Model Lineup & Channels

Model	Sine Frequency Range	Number of Channels
AFG31021	25 MHz	1
AFG31051	50 MHz	1
AFG31101	100 MHz	1
AFG31151	150 MHz	1
AFG31251	250 MHz	1
AFG31022	25 MHz	2
AFG31052	50 MHz	2
AFG31102	100 MHz	2
AFG31152	150 MHz	2
AFG31252	250 MHz	2
