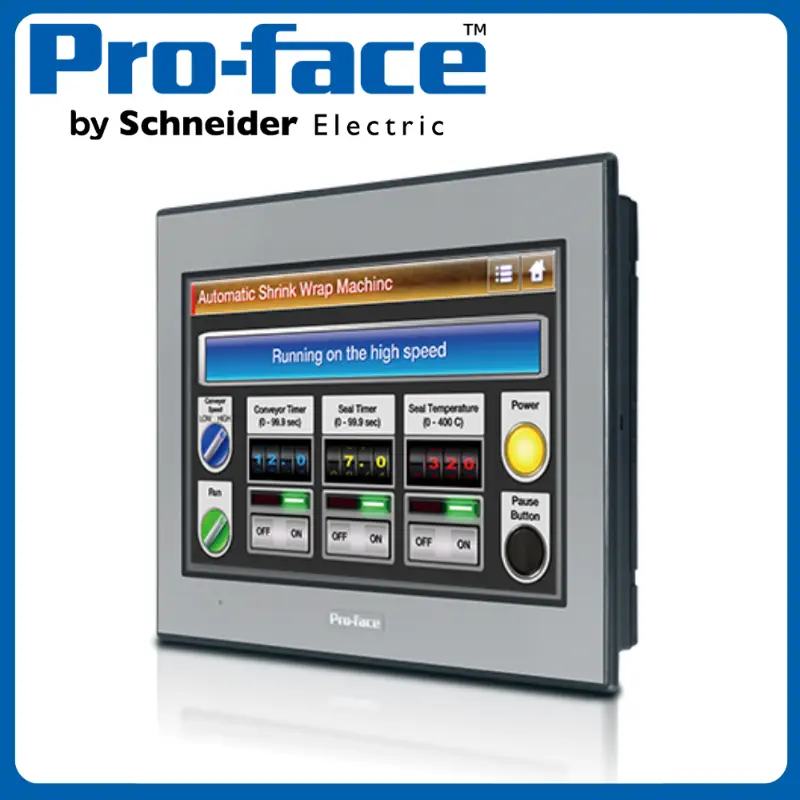

Equipped with a 5.7-inch resistive touch screen using VGA resolution (640×480 pixels), displaying 262,144 colors. White LED backlight provides 50,000+ hours of continuous operation with 16 levels of screen brightness adjustment.
Features built-in 16-channel digital inputs and 16-channel digital outputs. Includes a 100kHz high-speed input (HSC mode supporting pulse/direction or A/B encoder) and 2 high-speed outputs up to 65kHz in PWM/PTO mode (sink-type).
Operates on a rated input voltage of 24VDC (input voltage range: 19.2 - 28.8VDC) with a highly optimized maximum power consumption of 8.9W.
1x RS-232C/RS-422/RS-485 (D-Sub 9-pin), 1x Ethernet (IEEE 802.3i/u, 10Base-T/100Base-TX), 1x USB host Type-A, and 1x USB device Micro-B. Connects to up to 2 Modicon TM3 modules directly, or up to 8 extended.
This model combines built-in PLC functionality and an operator interface in one software and hardware system, achieving space-saving benefits and high engineering efficiency. It is ideal for basic closed-loop control applications such as motor speed control and temperature control.
| Item | Details |
|---|---|
| Model Number | PFXSTC6300TADDKE |
| Series | STC6000 Series |
| Display Type | TFT Color LCD |
| Display Size | 5.7 inches |
| Display Resolution | 640*480 pixels (VGA) |
| Display Colors | 262,000 colors |
| Touch Panel Type | Resistive Film (Analog) |
| Communication Interfaces | RS-232C/422/485 (D-sub 9-pin)*1, Ethernet*1, USB*2 |
| High-speed Counter | Single-phase (4-point)/2-phase (1-point or 2-point) |
| Pulse/PWM Output | 4-point |
| Digital Input/Output | 16 in / 16 out (sink) |
| External I/O | Rear-mounting, supports Modicon TM3 module, max 2 units |
Pro-face Hybrid HMI control function STC6000 Series model references:
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
It features a 5.7-inch TFT color LCD resistive touch screen with a VGA resolution of 640×480 pixels. It can display 262,144 colors and features a white LED backlight with a lifetime of over 50,000 hours.
The STC-6300TA requires a rated input voltage of 24VDC. It supports an input voltage range of 19.2 to 28.8VDC with a maximum power consumption of 8.9W.
The device features built-in 16-channel digital inputs and 16-channel digital outputs. The output logic style is sink-type.
It is equipped with 1x serial interface (RS-232C/RS-422/RS-485 via D-Sub 9-pin male), 1x Ethernet port (10Base-T/100Base-TX), 1x USB Type-A host, and 1x USB Micro-B device port.
Yes, it features an expansion interface that supports up to 2 Modicon TM3 modules directly on the rear, and up to 8 Modicon TM3 modules total with the addition of a transmitter (TM3 XTRA1) and a receiver (TM3 XREC1).
It supports 100kHz high-speed inputs in HSC mode (supporting pulse/direction or A/B encoder inputs) and 2 high-speed outputs with frequencies up to 65kHz in PWM or PTO modes.
